PARTS

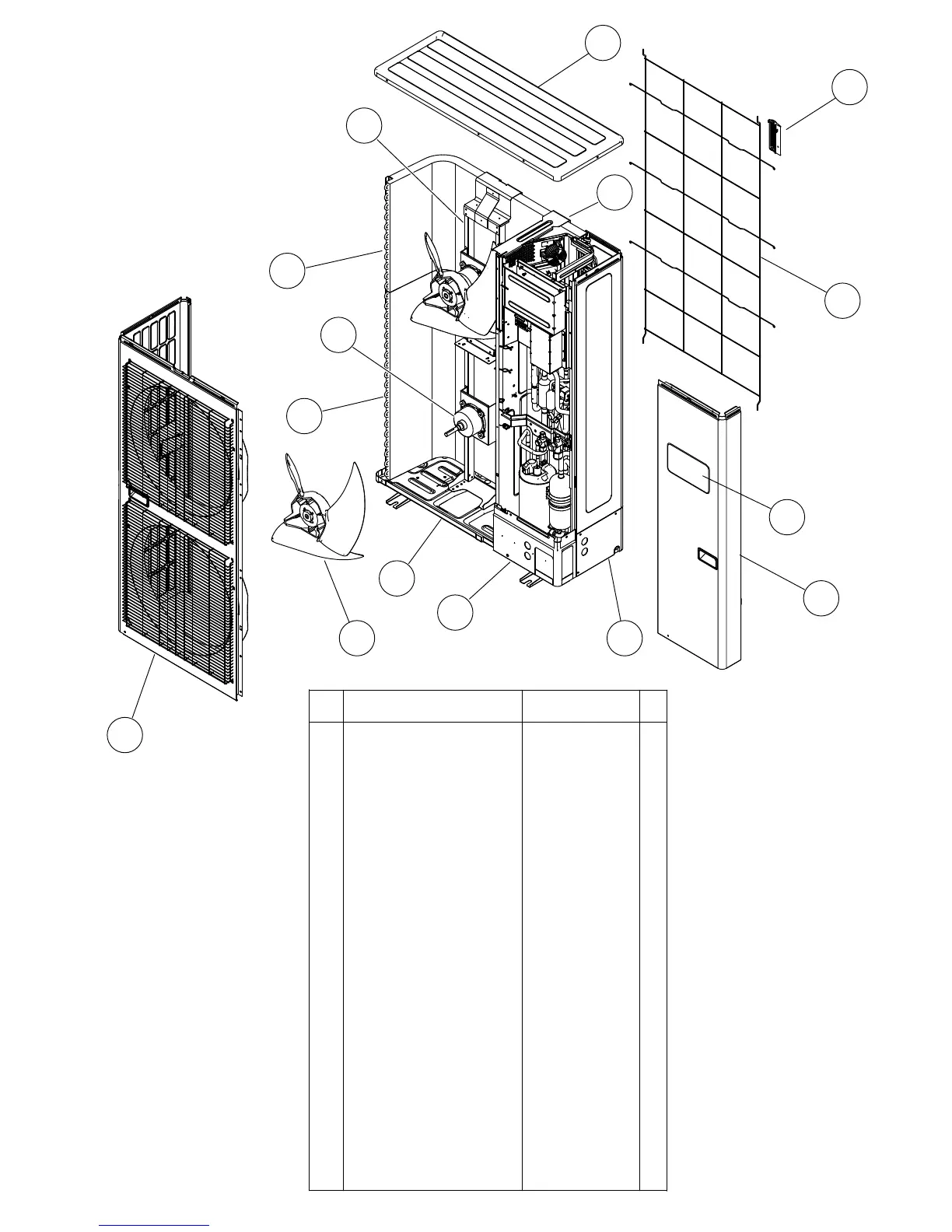

OUTDOOR UNIT
2011.02.04 28
1 Top Panel Sub Assy 9374417056
6 Right Panel Sub Assy 9374416189
-- Drain Cap 313166024302
-- Drain Assy 9303029015
7 Protective Net 9375381042
8 Thermo Holder 9375211011
12 RFM Top Assy 9380420002
4 Emblem Rear 9351355005
5 Pipe Cover Front 9378861015
3 Sevice Panel Sub Assy 9374415090
2 Front Panel Sub Assy 9374414109
1
3
2
11
15
14
13
4
10
9
12
7
8
6
5
11
Ref. Description
Parts number
10
13
14
15
Propeller Fan Assy
Motor DC Brushless
Condenser A Sub Assy
Condenser B Sub Assy
Base Assy
9366378020
9 Motor Bracket Sub Assy 9374418169
9602843039
9374420261
9374422081
9374166220
To Next Page
