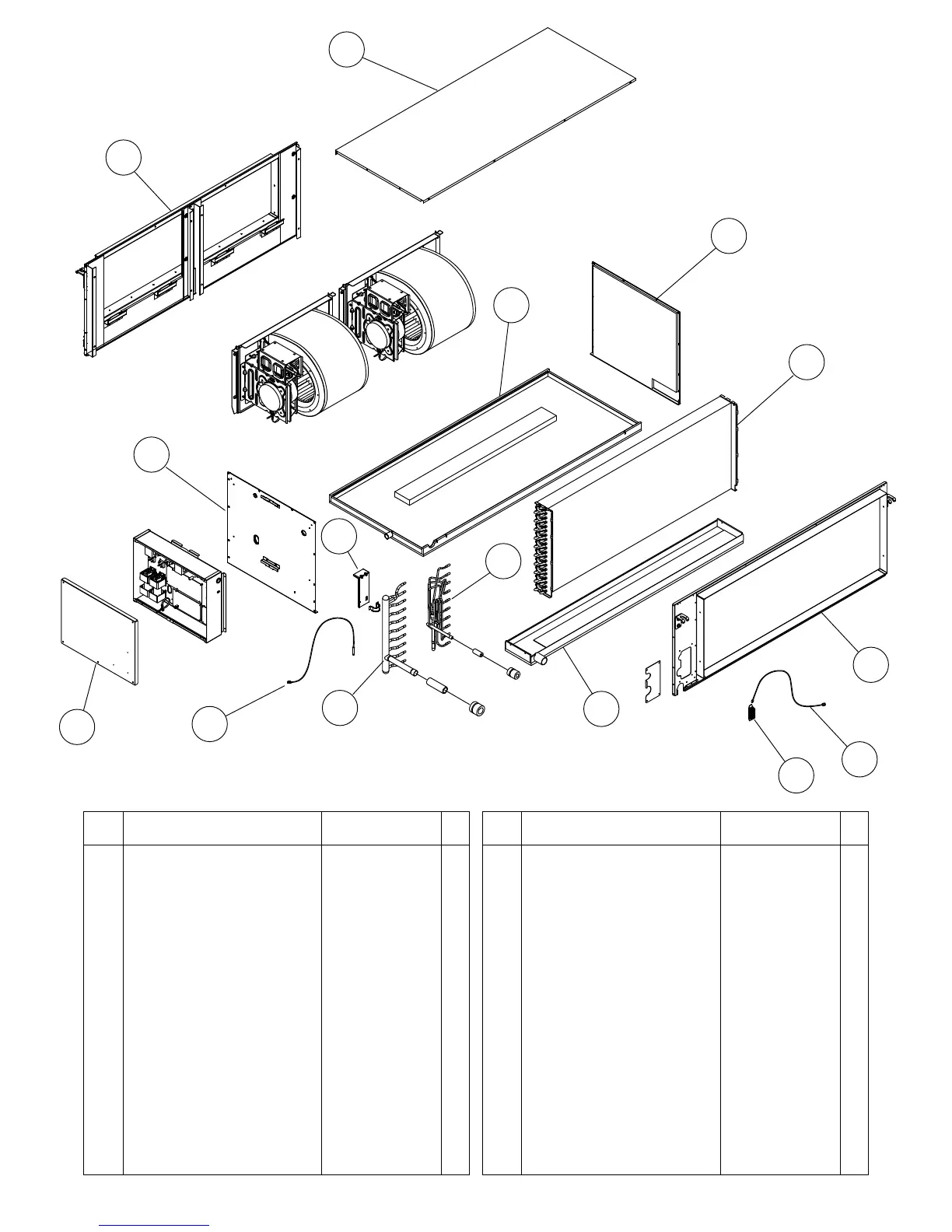

INDOOR UNIT
2013.02.27 19
PARTS
Ref. Description Part number
1 Top Plate Sub Assy 9379733007
2 Panel Front Sub Assy (72)
Panel Front Sub Assy (90)
9379734011
2 9379734004
3 Panel rear Sub Assy (72) 9379736015
3 9379736008
4 Panel Side R Sub Assy (72) 9379737012
4 9379737005
5 Panel Side L Sub Assy (72)
Panel rear Sub Assy (90)
Panel Side R Sub Assy (90)
Panel Side L Sub Assy (90)
9379738019
5 9379738002
6 Drain Pan Sub Assy 9379917001
7 Safety Drain Pan Sub Assy 9379918008
8
Ref. Description Part number
8
9 Pipe Thermistor 9900558000
10 Room Thermistor 9900559007
11 Thermistor Bracket 313557406106
12 Control Box Cover 9379500005
Evaporator Total Assy (72) 9379739016
Evaporator Total Assy (90) 9379739009
3
12
4
8
9
8
11
10
8
8
7
6
5
1
2
