8 Panel Top S 9380231011
9 Panel Bottom S 9380232018
11 Main Piller 9378468009
10 Conduit Plate 9378493018
12 Right Panel Sub Assy 9378920002
13 Bell Mouth Sub Assy 9379709002
14 Top Panel S 9378491014
15 Fan Guard
2013.02.27

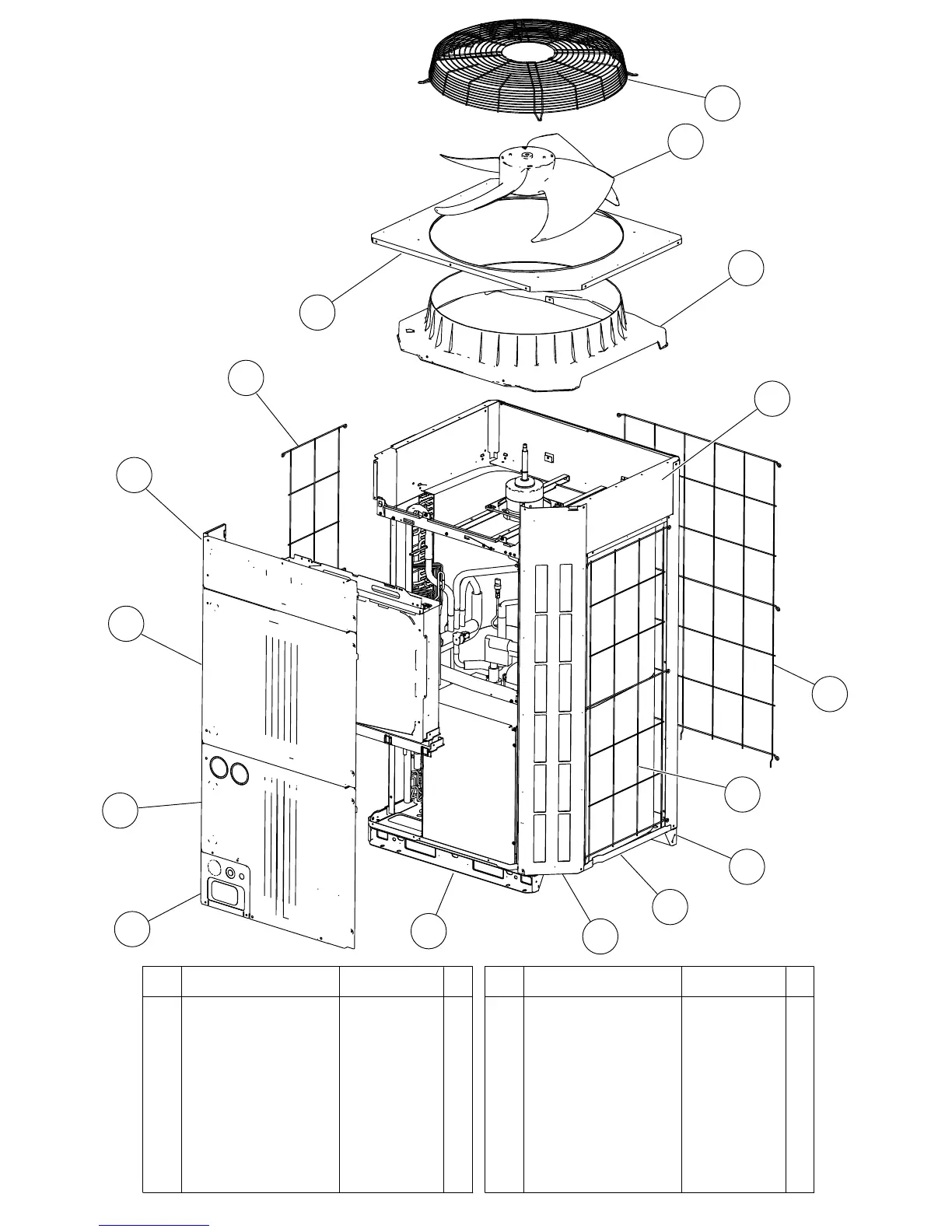

PARTS
OUTDOOR UNIT
22
9378498006
16 Propeller Fan 9378488007
Ref. Description Part number
1 Base S Assy 9378454040
2 Base Foot FS Assy 9378856011
3 Base Foot RS Assy 9378856035
4 Net Right Sub Assy 9378927001
5 Net Left Sub Assy 9378928008
6 Net Rear Sub Assy 9378926011
7 Front Panel S 9378480018
11
10
7
8
9
5
15
16
14
2
4
3
6
1
13
12
Ref. Description Part number
