21

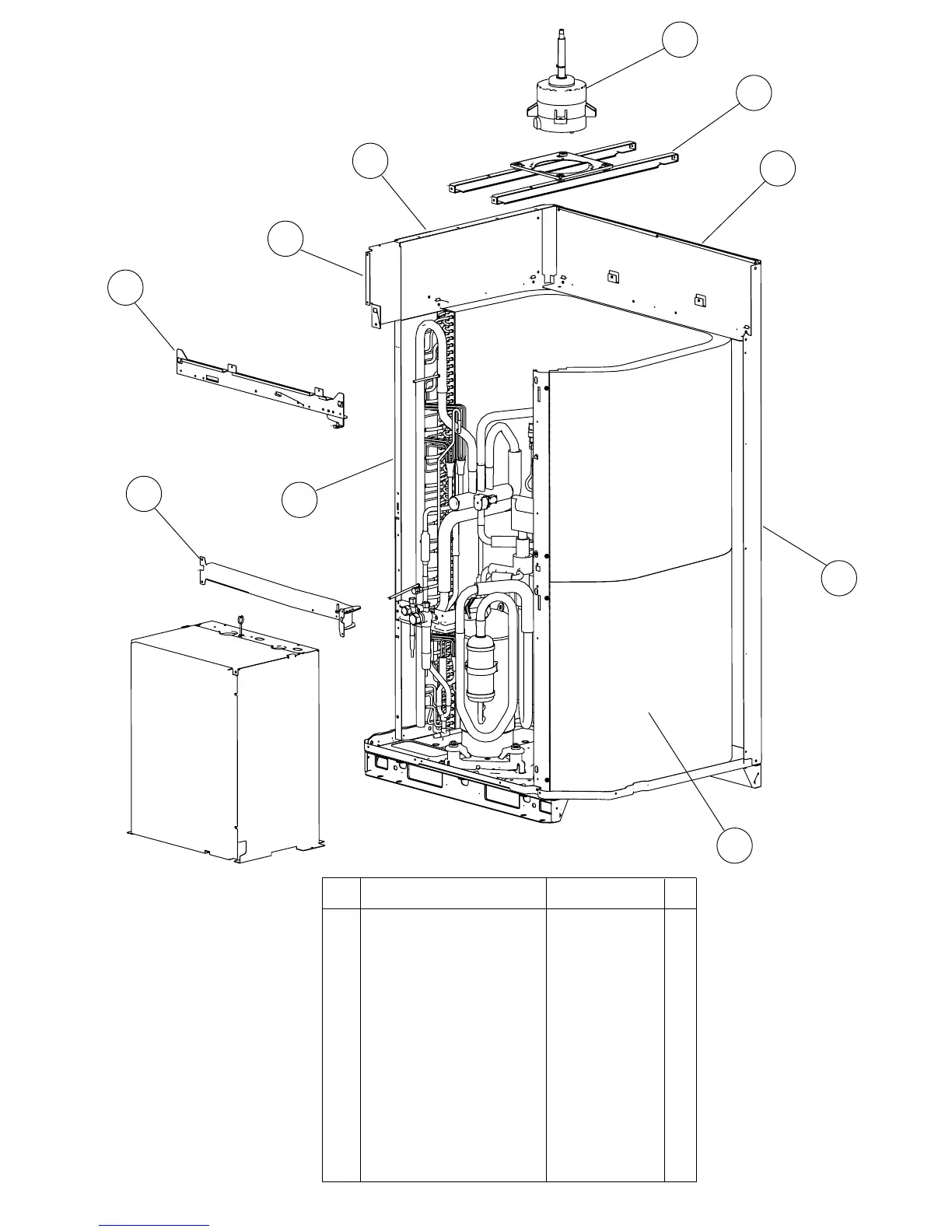

Side Piller Sub Assy
Compressor box
2013.02.27 23
OUTDOOR UNIT
9379202008
22
Rear Piller 9378472006
23
Fan Motor 9602663002
24
Motor bracket Sub Assy 9378925007
25 Rear Panel S Sub Assy 9378921016
26 Left Panel Sub Assy 9378919006
27 Beam Bracket 9378473003
28 Front Beam S Sub Assy 9378922013
29 Center Beam S Sub Assy 9378924017
30 Condencer Sub Assy 9379053020
21
22
29
30
27
28
25
26
23
24
Ref. Description Part number
