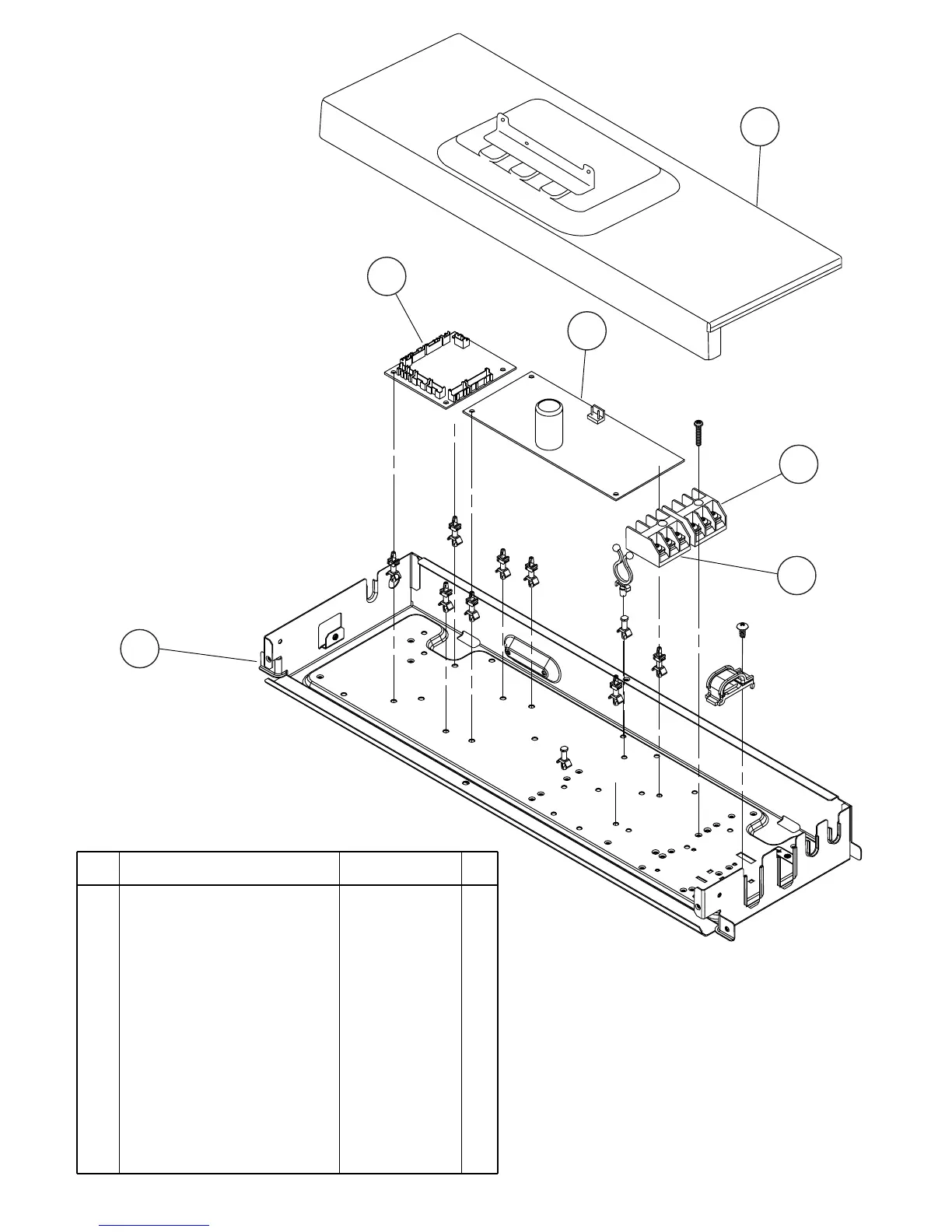

INDOOR UNIT
Control unit
2009.01.14 52
102
104
105
101
103
106
101 Control Box 9358600054
-- Room Thermistor Assy 9703299087
103 Controller PCB Assy (18)
103 Controller PCB Assy (24) 9707393545
103 Controller PCB Assy (22) 9707393552
9707393569
102 Control Box Cover Assy 9359097006
105 Terminal 3P 9306489045
106 Terminal 3P 9703345012
9707398113104 Power Supply PCB Assy
Ref. Description Part number
CEILING TYPE
