4
13
13
13
5
2
8

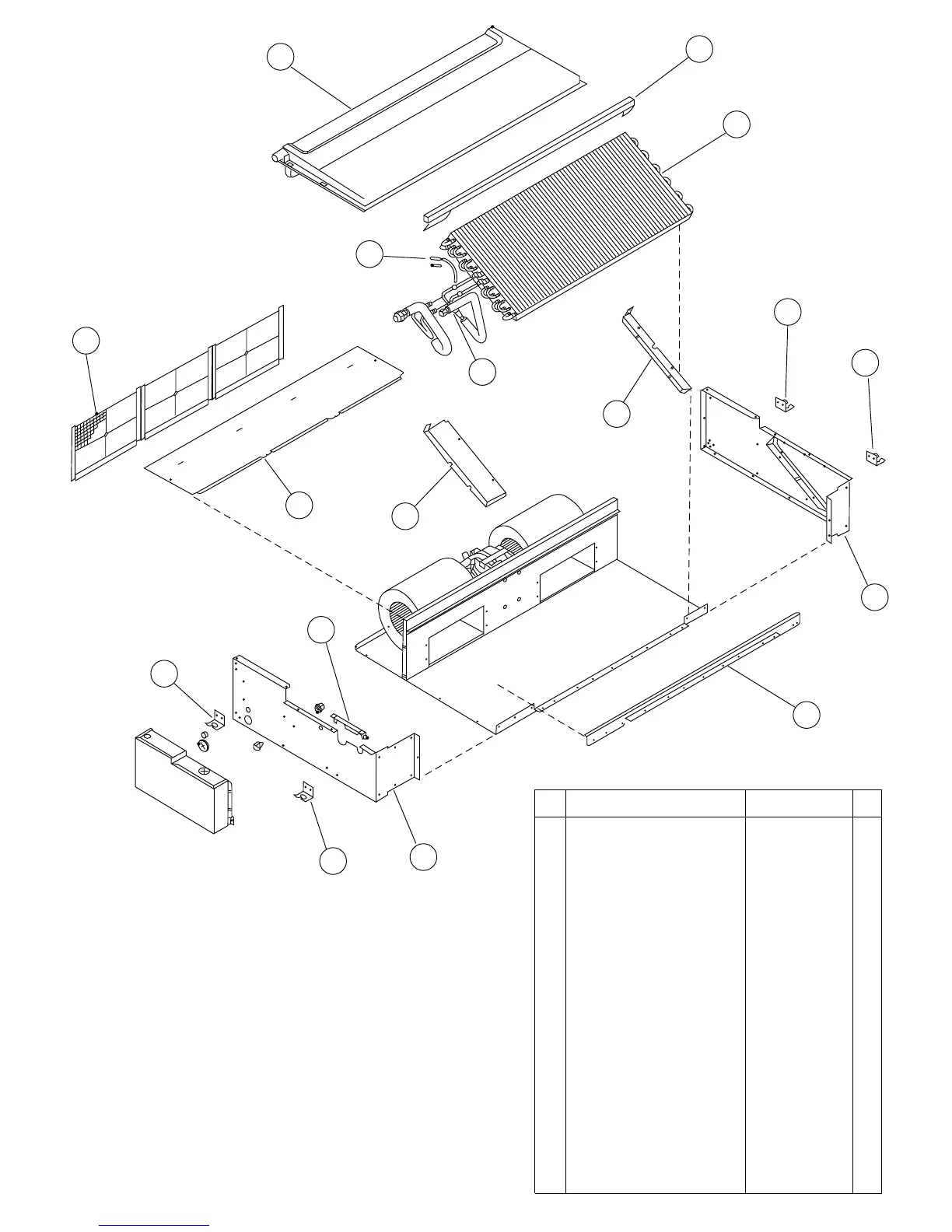

DUCT TYPE
INDOOR UNIT
ARYF18LBLU
2012.08.29 53
10
6
12
1
7
13
11
14
9
3
4 Front Panel Sub Assy 9364508023
1 Air Filter 9366833017
5 Evaporator Total Assy 9364499420
12 Distributor Assy 9373034216
6 Drain Pan Sub Assy 9364502069
13 Hook 9363195002
10 Pipe Thermistor 9703297090
7 Evaporator Support Plate 9363404005
8 Bracket Evaporator R 9363199000
9 Bracket Evaporator L 9363198003
2 Side Panel R Sub Assy 9364505022
3 Side Panel L Sub Assy 9364506029
Ref. Description Part number
14 Cabinet Cover Sub Assy 9364503028
-- Outlet (Eva) Assy 9372978047
-- Drain Cap Assy 9377878014
11 Pipe Cover 9363327007
To Next Page
