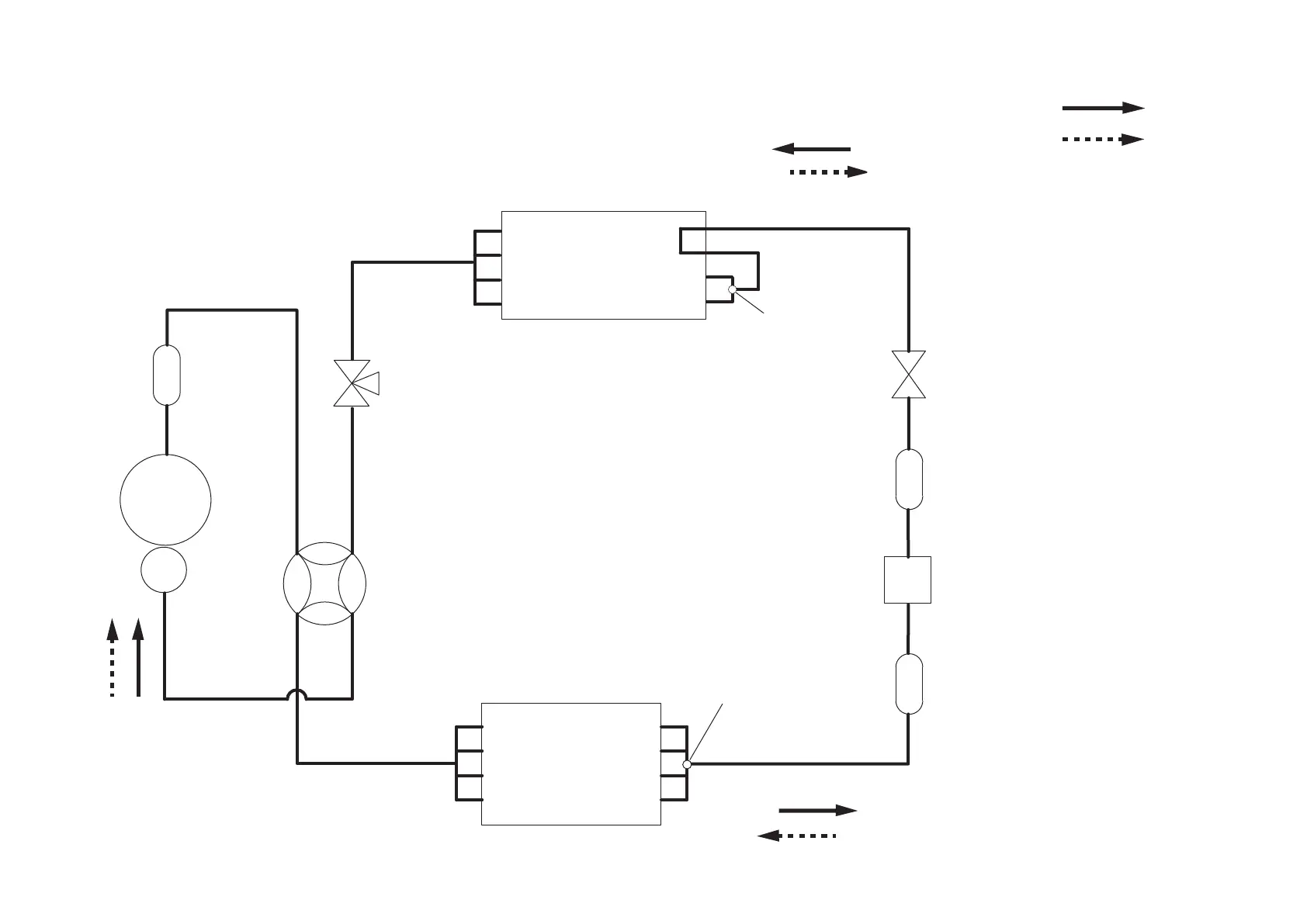

Fujitsu AOYG12KMTA - Refrigerant System Diagram for ASYG12;AOYG12

2-way valve
Strainer
Teese tube
Strainer
3-way valve
4-way valve
Expansion valve
Refrigerant direction
ASYG12KMTA / AOYG12KMTA
Heat exchanger
(indoor unit)
Heat exchanger
(outdoor unit)
Muffler
Compressor
Cooling
Heating
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 3/8" (9.52 mm)
2018.03.26 7
Distributor
