SERVICE PARTS INFORMATION 2

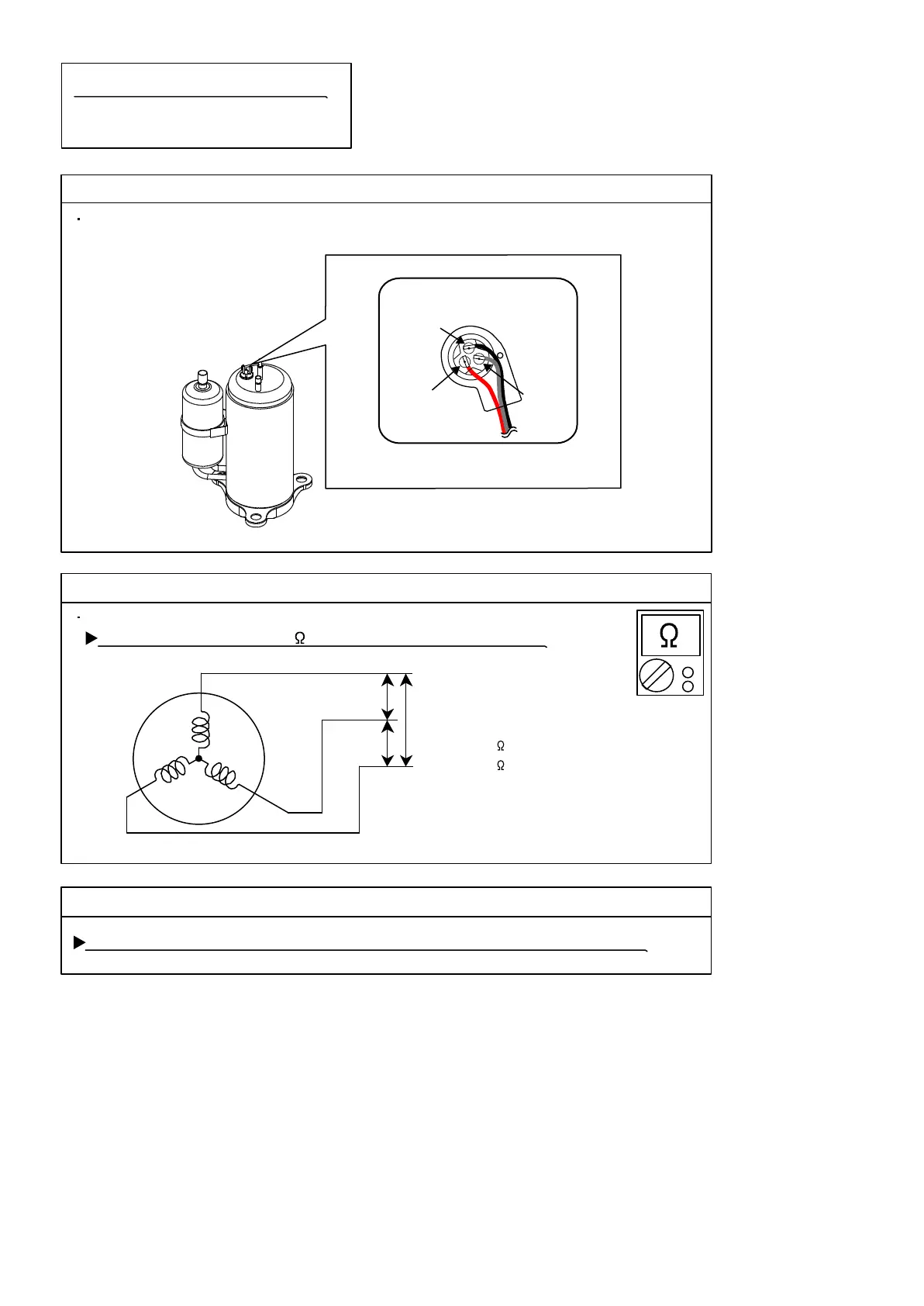

Check Point 1 : Check Connection
Check Point 2 : Check Winding Resistance
Check Point 3 : Replace Main PCB
W(C)
V(S)
U(R)
Inverter Compressor
Check terminal connection of Compressor
(loose or incorrect wiring)
Check winding resistance of each terminal
If the resistance value is 0 or infinite, replace Compressor.
If the symptom does not change with above Check 1, 2, replace Main PCB.
02-33
U(R)
(RED)
V(S)
(WHITE)
C
(
W
)
(BLACK)
Terminal cover opened
Resistance Value :
2.18 at 20°C for 07/ 09/ 12KMTA
1.975 at 20°C for 14KMTA

Fujitsu AOYG12KMTA Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Gas hose diameter	9.5 mm
Hose length (max)	15 m
Inverter technology	Yes
Liquid hose diameter	6.35 mm
Refrigerating medium	R32
Air conditioner functions	Cooling, Heating
Refrigerating medium weight	700 g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	-
AC input voltage	230 V
Current (cooling)	6.5 A
Current (heating)	9 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	290 mm
Outdoor unit width	663 mm
Outdoor unit height	541 mm
Outdoor unit weight	25000 g
Outdoor units quantity	1
Outdoor unit noise level	58 dB
Cooling airflow (outdoor unit)	770 m³/h
Outdoor unit sound power level	50 dB
