Fujitsu AOYG14LMCBN User Manual

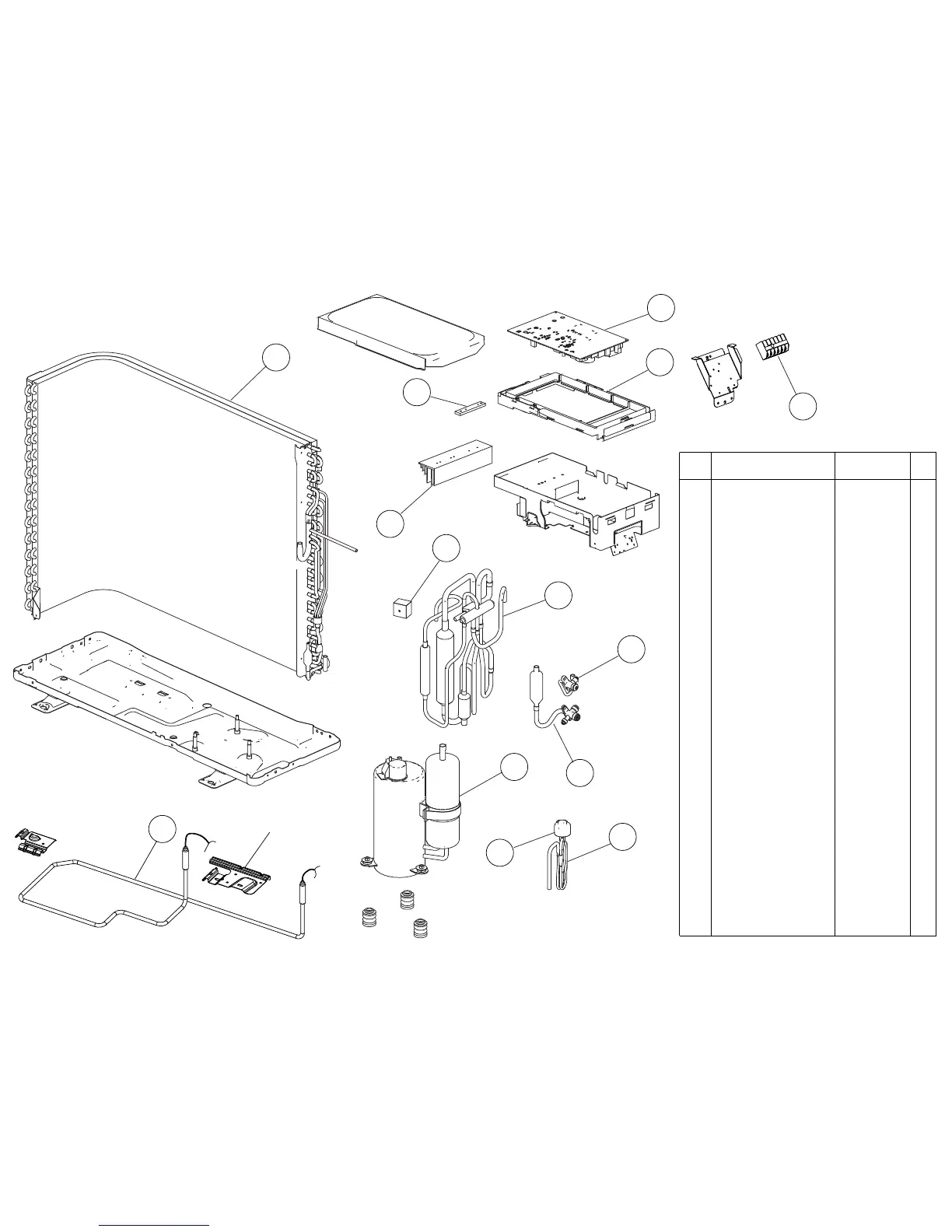

OUTDOOR UNIT
2013.09.12 18
23
22
24
32
30
34
33
31
28
25
29
26
27
23 Compressor Assy 9317117005
25 3-way Valve Sub Assy 9317109055
28 Pulse Motor Valve Assy 9332368048
4-way Valve Assy
9315311092
27 Solenoid 9970110047
22
Condenser Total Assy
9317089098
29
Expansion Valve Coil
9970095030
26
24 2-way Valve Assy 9332371000
Base
Ref. Description Part number
21
Heater holder A
Heater holder B
21 Heater Unit Assy 9900616014
-- Outdoor Thermistor 9900544010
Terminal bracket
32 Terminal 9900435028
-- Thermistor Assy 9900614027
Sealed panel
Inverter case
Main PCB
30 9708753515
31 PCB Holder 9313074029
34
Heat Sink B
9314090011
33 Heat Sink A 9314410017
