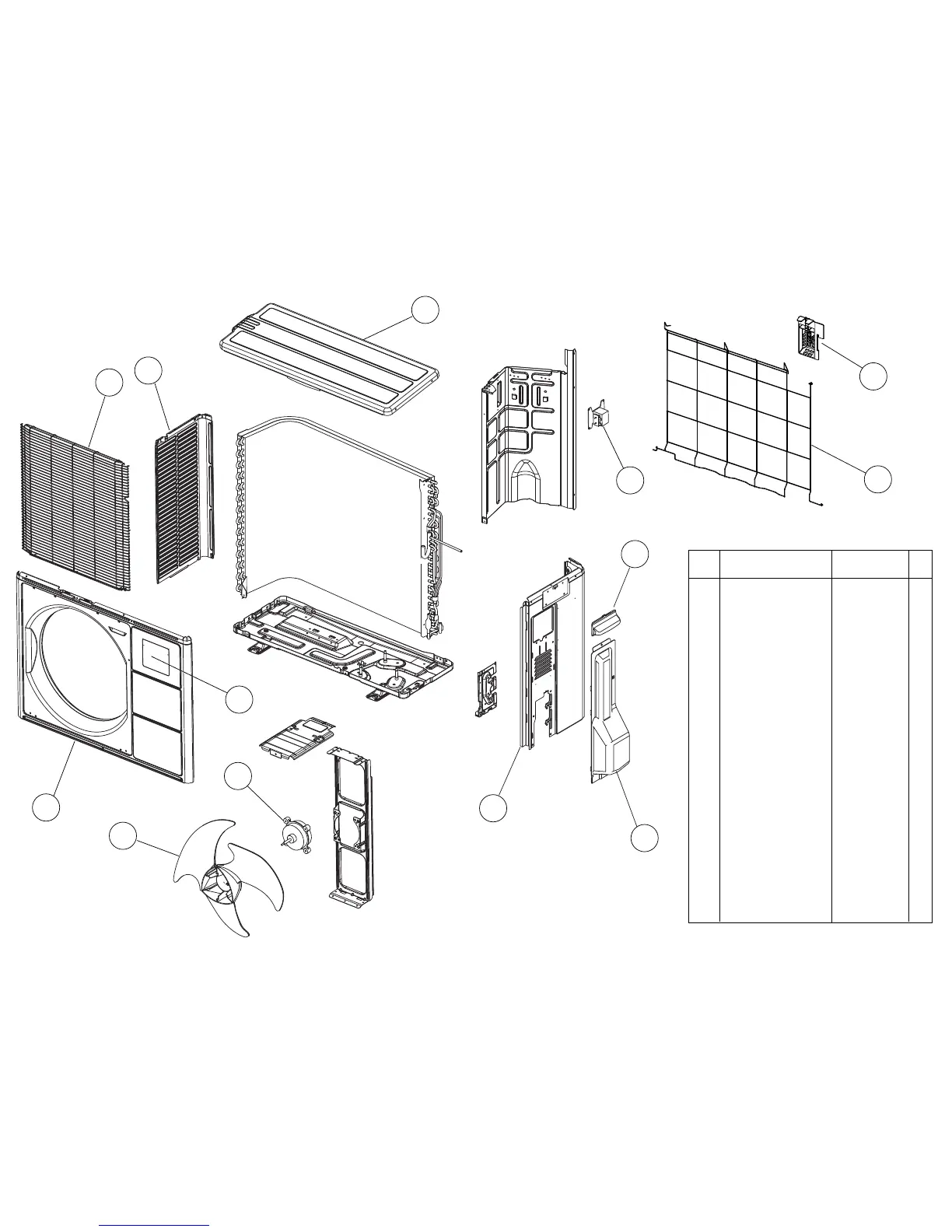

OUTDOOR UNIT
PARTS
2013.09.27 17
3 Top Panel Assy 9318464023
4 Front Panel Assy 9318463026
2 Protective Net
6
8
Cabinet Left Assy 9318461015
5 Emblem 9319151007
Switch Cover Assy 9318499001
7 Grip 9317588003
Valve bracket
9 Cabinet Right Assy 9318462005
Motor bracket
12 Propeller Fan 9313808013
10 Reactor Assy 9900611019
Separator Assy
11 Fan Motor 9602724017
Ref. Description Part number
1 Thermistor Holder 9313954031
9332492002
1
