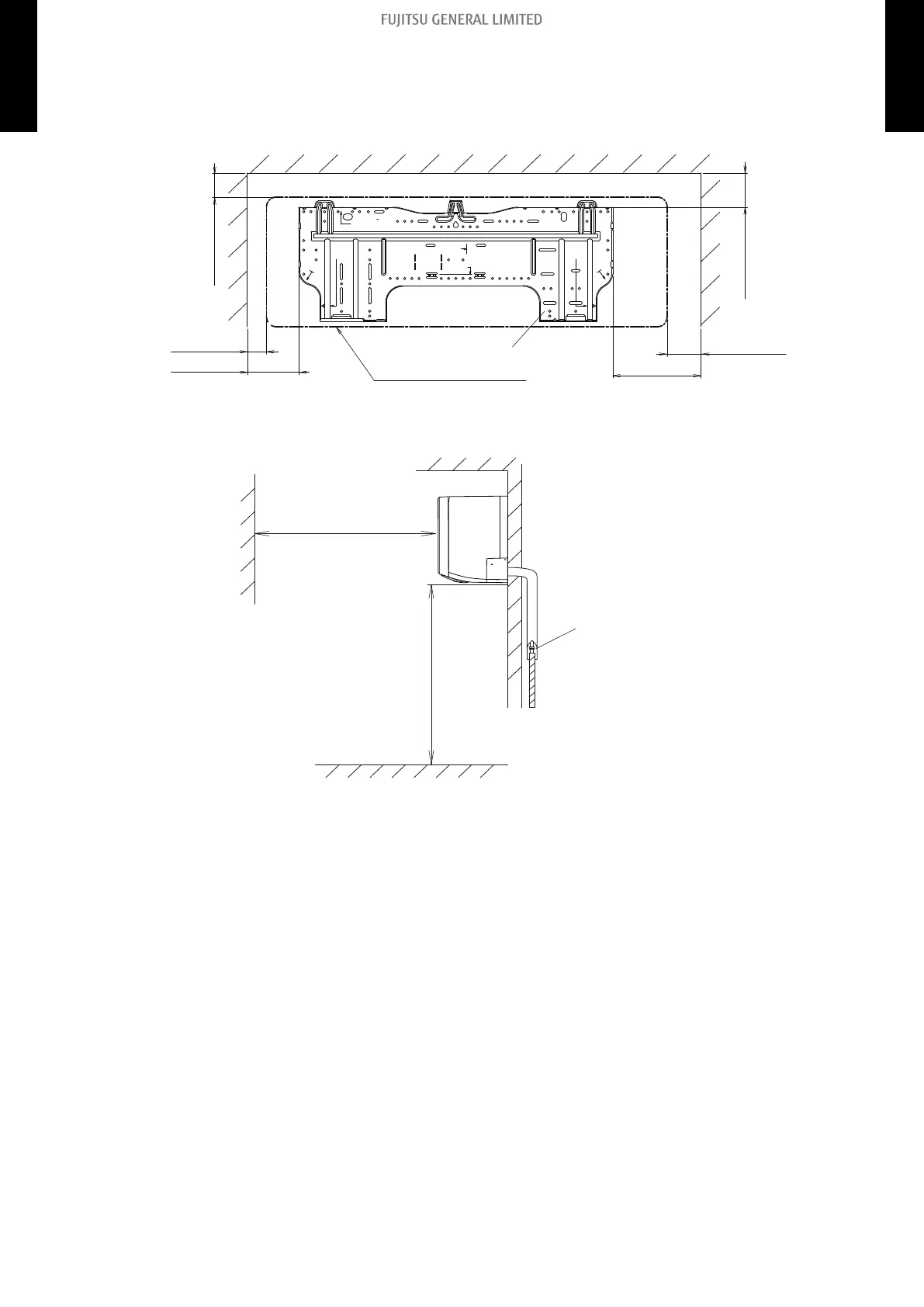

Installation space requirement
Provide sufficient installation space for product safety.
Unit: mm
50 or more
71 or more
40 or more
70 or more
107 or more
1,500 or more
1,800 or more
183 or more
Wall hook bracket
Outline of the indoor unit
A
A: Install so that the flare connection part is outdoors.
