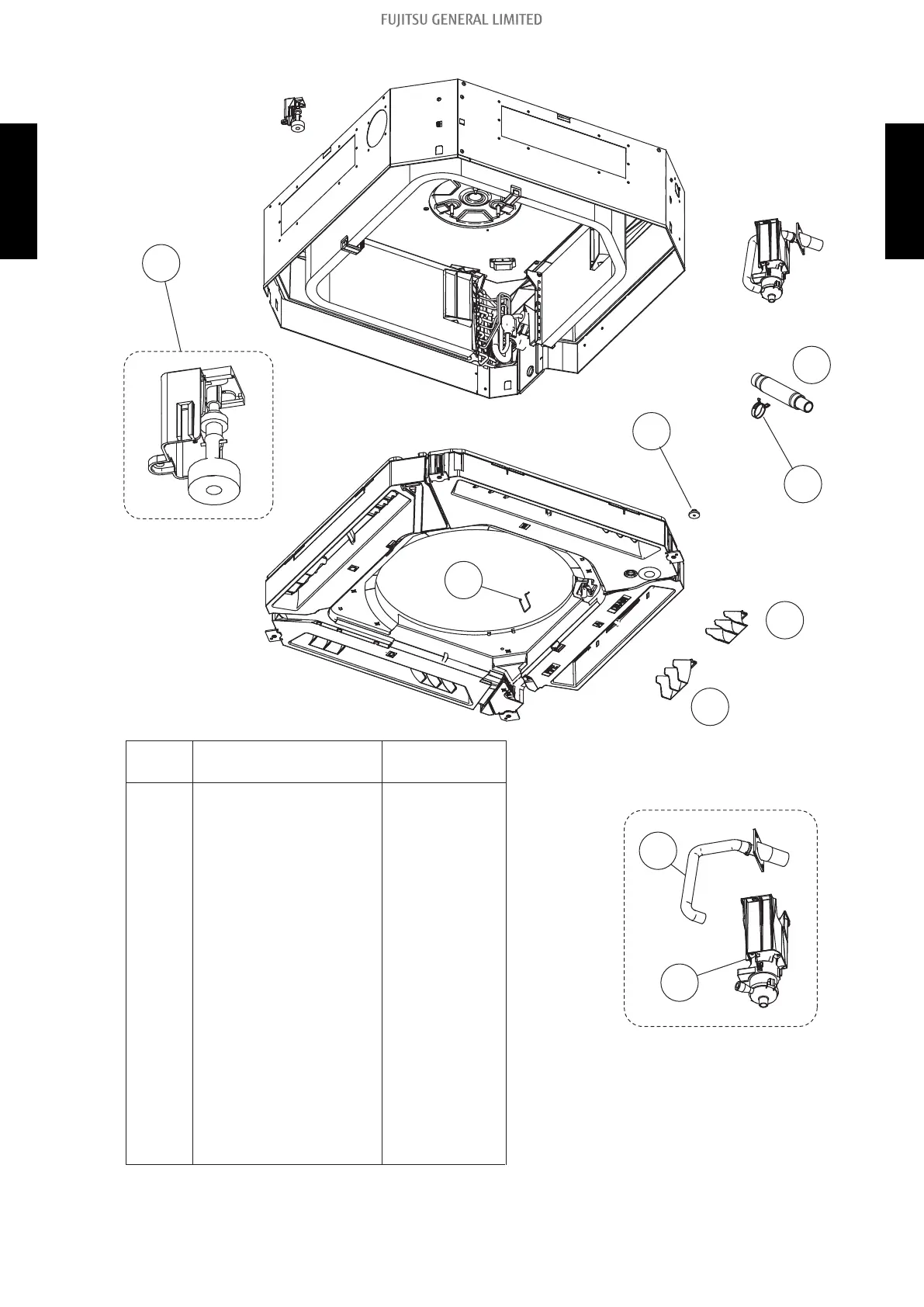

¢ Drain pump

31 Drain Cap 9375502010

33 Vane L

34 Vane R

39 Float Switch Sub Assy

38 Hose Band

36 Drain Port Sub Assy

9381745012

9381744008

32 Panel Hook 9375671013

37 Drain Hose 9379665001

35 Drain Pump Sub Assy 9381793006

9381794003

9379757010

9381788002

Ref. Description

Part number

3-1. Models: AUXG24KRLB, AUXG30KRLB, AUXG36KRLB, AUXG45KRLB, and

AUXG54KRLB

- (02-8) - 3. Indoor unit parts list
