Fujitsu AOYG45LETL User Manual

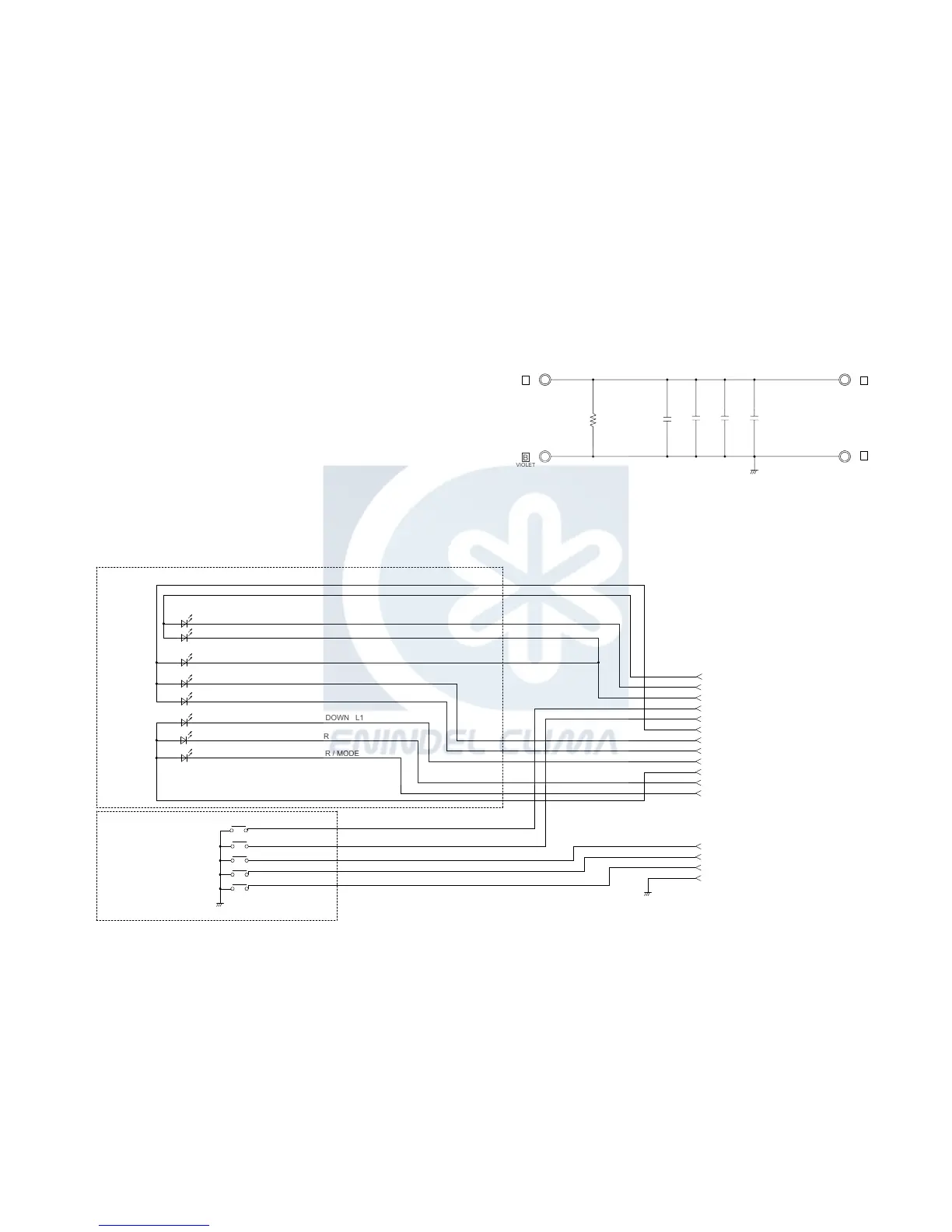

D401 SLR-325 <ORANGE> L6
D402 SLR-325 <ORANGE> L5
D403 SLR-325 <ORANGE> L4
D404 SLR-325 <ORANGE> L3
D405 SLR-325 <ORANGE> L2
D406 SLR-325 <ORANGE> PUMP DOWN L1
D407 SLR-325 <RED> ERROR
D408 SLR-325 <GREEN> POWER / MODE
SW5
SW4
SW3
SW2
SW1
PUMP DOWN
EXIT
ENTER
SELECT
MODE
( CN401-1 )
( CN401-2 )
( CN401-3 )
( CN401-4 )
( CN401-5 )
( CN401-6 )
( CN401-7 )
( CN401-8 )
( CN401-9 )
( CN401-10 )
( CN401-11 )
( CN401-12 )
( CN401-16 )
( CN401-15 )
( CN401-14 )
( CN401-13 )
KSM8WBTS x 5
OUTDOOR UNIT
INDICATOR PCB
K10BC-1000YUE-D0
2013.01.21 14
W7
B
YELLOW
W8
B
BLUE
W12
B
WHITE
W13
B
VIOLET
P
N
+
+
+
+
R200
220k
<2W>
C200 - C203
660/
450V
x 4
POWER_G
OUTDOOR UNIT
CAPACITOR PCB
K05FB-1000HUE-P0
www.enindel.com

Fujitsu AOYG45LETL Specifications

General

Brand	Fujitsu
Model	AOYG45LETL
Category	Air Conditioner
Language	English
