- 85 -
CASSETTE TYPE
AUXG18-54LRLB

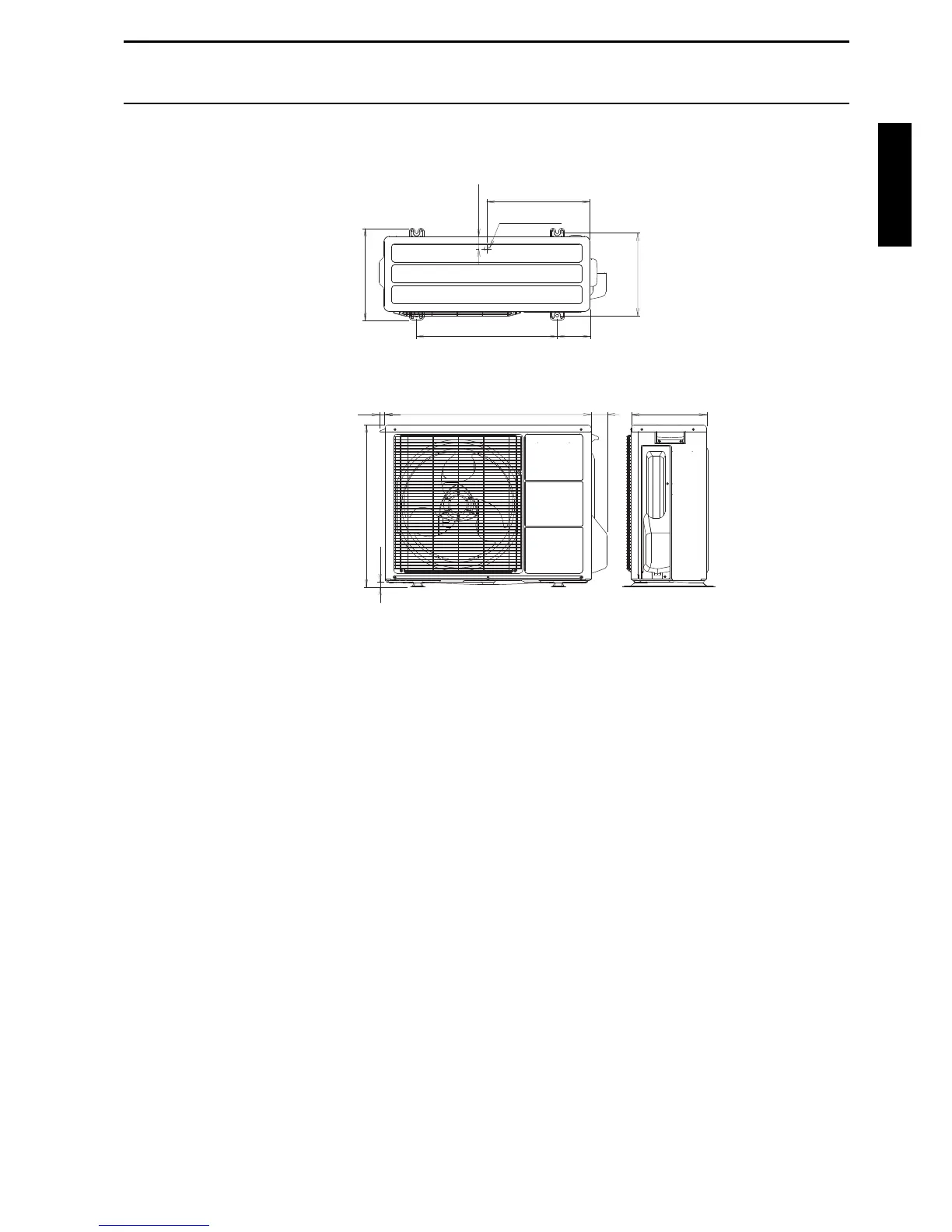

2. Dimensions
2-1. Models: AOYG18LBCA and AOYG24LBCA
Pitch of bolts for installation
353
45.4
320
395
540
125
Drain port Ø20
20
790
620
20
62
290
Unit: mm
Top view
Front view
Side view
