PROCESS
MODEL:AOYR07/09LCC

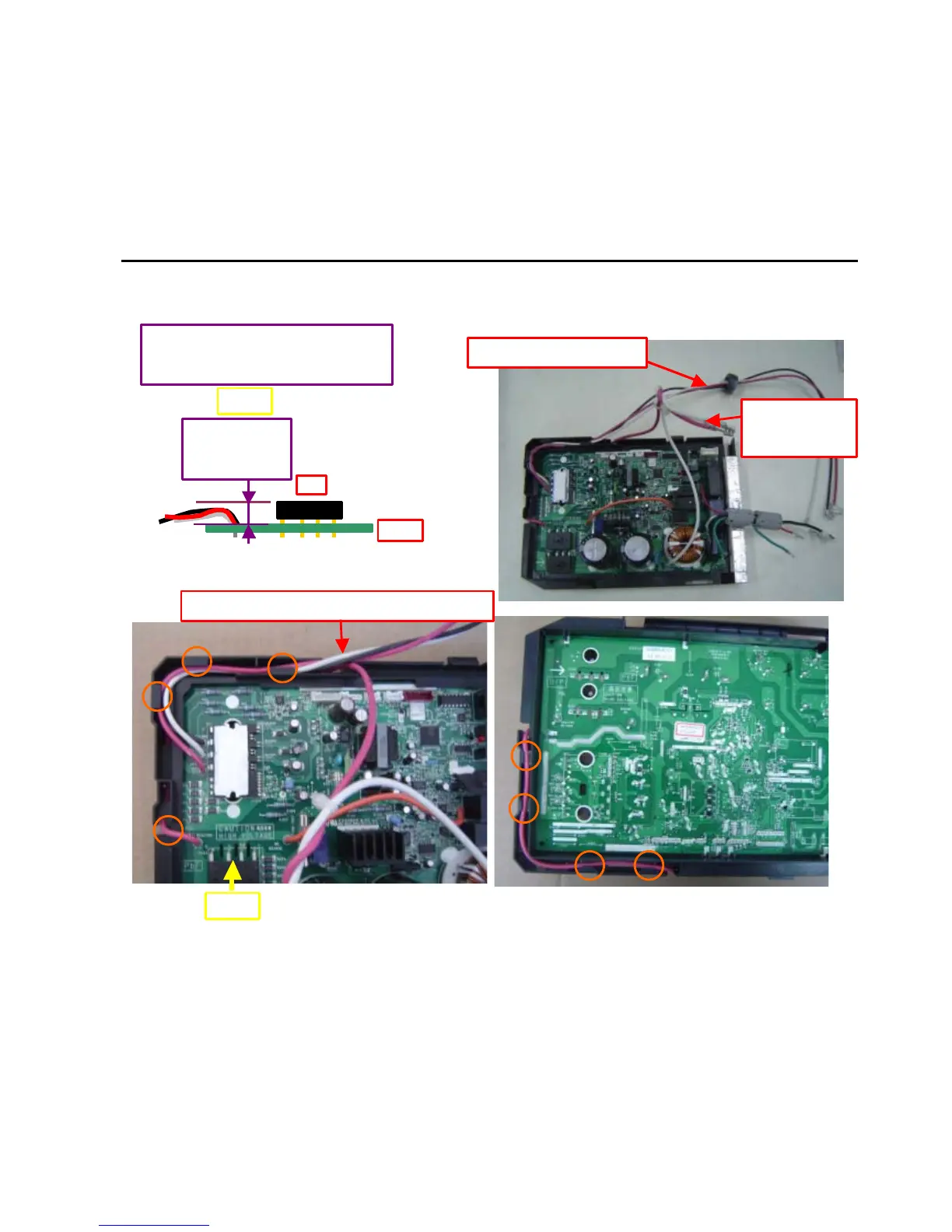

Wiring lead wire
REGULATIONS
Like a rough sketch, wire COMP lead wire and REACTOR lead wire.
Like a rough sketch, pass each lead wire to guide for the lead wire of HOLDER(PWB).
Each lead wire are wired without sag and twist ,and must be in the ditch of HOLDER(PWB).
Like a rough sketch, Assemble the WIRE.
VIEW A
VIEW A
DB
PWB
Less than 12.5mm
REACTOR lead wire
COMP lead wire
Through the Comp. lead upper side of the reactor lead.
REPLACEMENT PARTS
09-16
