REPLACEMENT PARTS
09-20
PROCESS
Model : AOYR14/18LCC

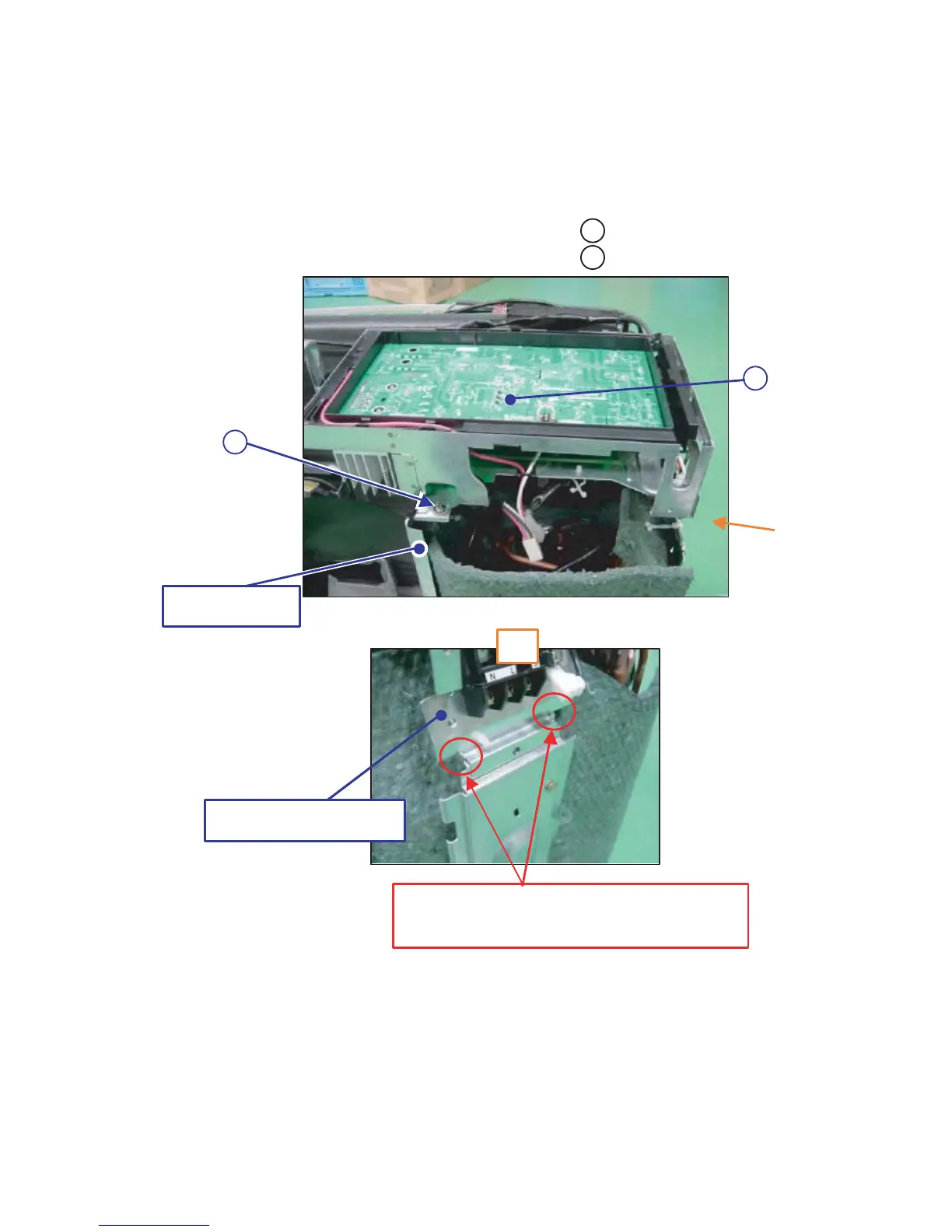

ATTACHMENT OF INVERTER ASSY
INVERTER ASSY
Tap tight screw
(TERMINAL BRACKET)
Do not run up the terminal board mounting metal
on 2 location of hook.
THERMISTOR (OUT TEMP) is passed here.
(SEPARATER)
1
1
2
2
A
A
