Fujitsu AP-WH4E - Page 8

En-8

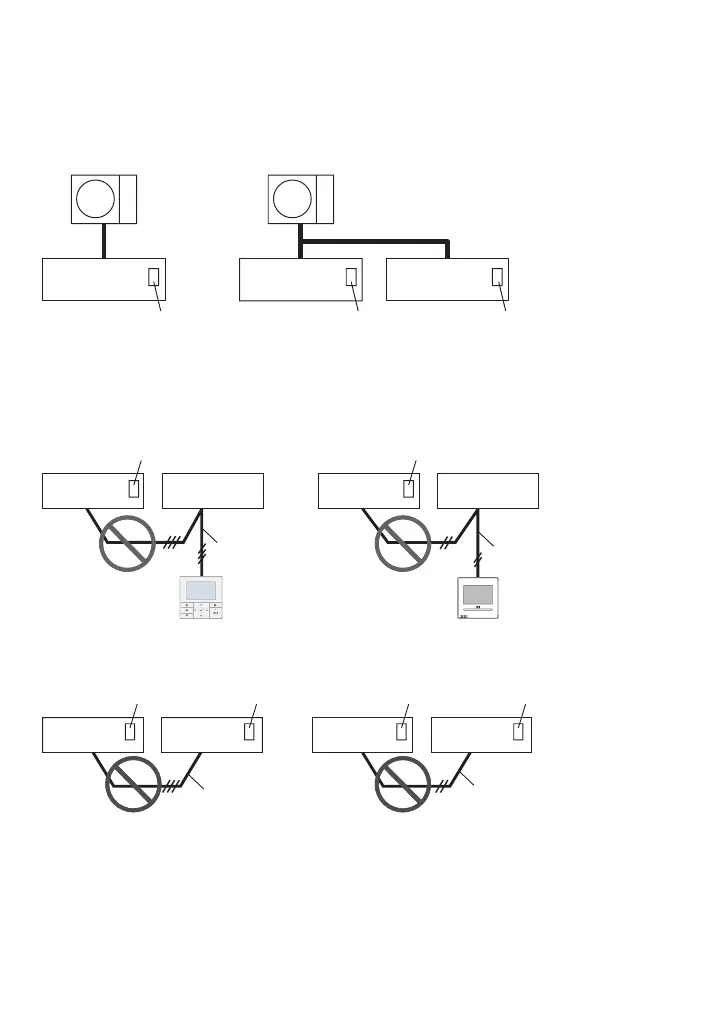

System diagram
One WLAN adapter can be connected to each indoor unit.
Single connection
Outdoor unit Outdoor unit
Indoor unit
Indoor unit
Indoor unit
WLAN adapter WLAN adapter WLAN adapter
Multi-split connection
Prohibited uses
(1) Group connection of indoor units with wired remote controller
3 wire
3-wire
remote
controller
2-wire
remote
controller
2 wire
Indoor unit Indoor unit Indoor unit Indoor unit
WLAN adapter WLAN adapter
(2) Group connection of indoor units
3 wire
2 wire
Indoor unit Indoor unit Indoor unit Indoor unit
WLAN adapterWLAN adapterWLAN adapterWLAN adapter
