Fujitsu ARG36TLC3 - REFRIGERANT SYSTEM DIAGRAM

2003.08.28

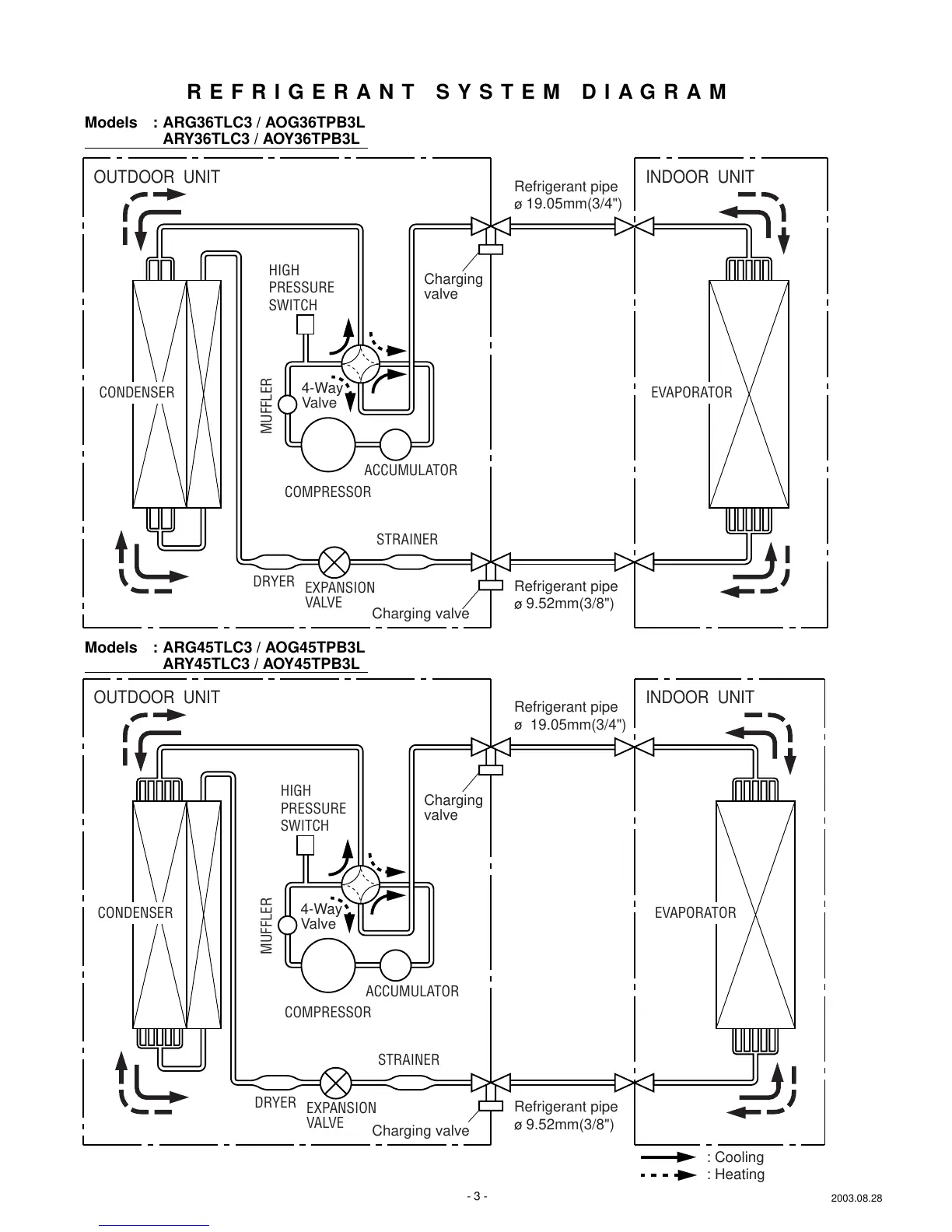

REFRIGERANT SYSTEM DIAGRAM
- 3 -
Refrigerant pipe
19.05mm(3/4")
Refrigerant pipe
9.52mm(3/8")
Charging
valve
MUFFLER
COMPRESSOR
4-Way
Valve
ACCUMULATOR
Charging valve
DRYER
EXPANSION
VALVE
STRAINER
OUTDOOR UNIT INDOOR UNIT
EVAPORATORCONDENSER
HIGH
PRESSURE
SWITCH
Refrigerant pipe
19.05mm(3/4")
Refrigerant pipe
9.52mm(3/8")
Charging
valve
MUFFLER
HIGH
PRESSURE
SWITCH
COMPRESSOR
ACCUMULATOR
Charging valve
DRYER
EXPANSION
VALVE
STRAINER
OUTDOOR UNIT INDOOR UNIT
EVAPORATORCONDENSER
4-Way
Valve
: Cooling
: Heating
Models : ARG36TLC3 / AOG36TPB3L
ARY36TLC3 / AOY36TPB3L
Models : ARG45TLC3 / AOG45TPB3L
ARY45TLC3 / AOY45TPB3L
