(4) Cancel button
Cancels the current selection and returns to previous
screen.
Operable control at the setting is displayed in the lower
leftofeachsettingscreenasfollows:
When you press this button while setting, the setting is •
canceled and returns to the previous screen.
XXXXXX XXXXXX
Cancel: OK:
When this button is pressed after setting (or before set-•
ting), it returns to the previous screen.
XXXXXX XXXXXX
Back: Setting:
(5) Cursor button
When up/down
or left/right arrows are displayed
on the screen, you can move the cursor to change the
selected items.
Up/down
arrows are also displayed when the setting
item is adjustable or changeable.
NOTE: Press the marked part on the [Cursor button]. It
does not respond correctly when diagonally oper-
ating it.
(6) Enter button
 Selectsthehighlighteditemornalizethesetting.
NOTE:
When switching to another setting screen before
the setting is completed, the cancel conrmation
screen is displayed. When canceling the setting,
select [Yes] with the [Cursor button (Left/Right)]
and press the [Enter button].
Setting change will be canceled. OK?
No
Yes
(7) Power indicator
Lights green when the unit is turned on, and goes off
when the unit is turned off.
NOTE: It blinks when an error occurs.
(8) On/Off button
Starts or stops the operation.

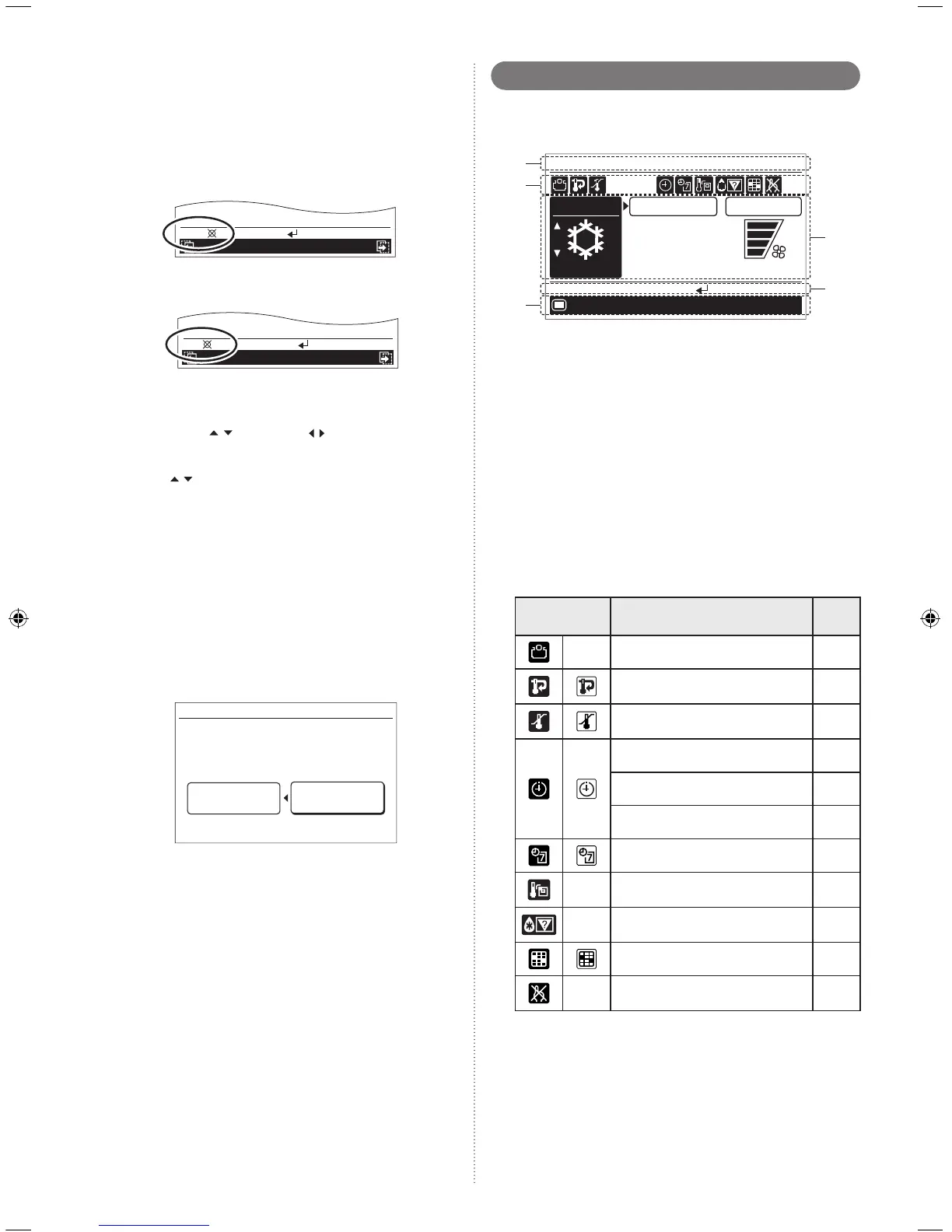

1-4. About “Monitor” screen
“Monitor” screen shows several statuses such as the operat-
ing status of the air conditioner, function setting, or other cur-
rent operating conditions.
Mode
Menu
Cool
Monitor
Room 28˚
C
Set temp.
Fan
High
°
C
26
Mo 10:00
Icon check:
(1)
(2)
(5)
(3)
(4)
(1) Screen status and current conditions
Shows the current screen name, room temperature, day
of the week, and clock.
NOTES:
The clock can be changed to 24-hour clock, AM/PM •
(12-hour:12:00–11:59or0:00–11:59)clock.(Refer
to “5-2-4. Change display format setting”.)
Room temperature indication is available only if the •
“Room temp. display” function is enabled. (Refer to
“5-6. Room temp. display setting”.)
(2) Icon display
Shows the function that is currently working or set.
NOTE: In this section, all the possible icons are dis-
played for description.
Icon
Function name
See
page
- Economy 12
Set temp. (temperature) auto
return
12
Set temp. (temperature) range
limitation
13
On timer 14
Off timer 15
Auto-off timer 22
Weekly timer 16
-
R.C. (Remote Controller) sensor
control
28
-
Automatic defrosting, oil
recovery, or mode mismatch
35
Filtercleaningnotication 26
-
R.C. (Remote Controller)
prohibition
-
White icon on a black background:
Indicates that the function is valid and performing the
function or standby state.
Black icon on a white background:
Indicates that the controller is in non-operating state be-
cause R.C. prohibition on the primary unit is working, or
timer has been set, though the function is valid.
