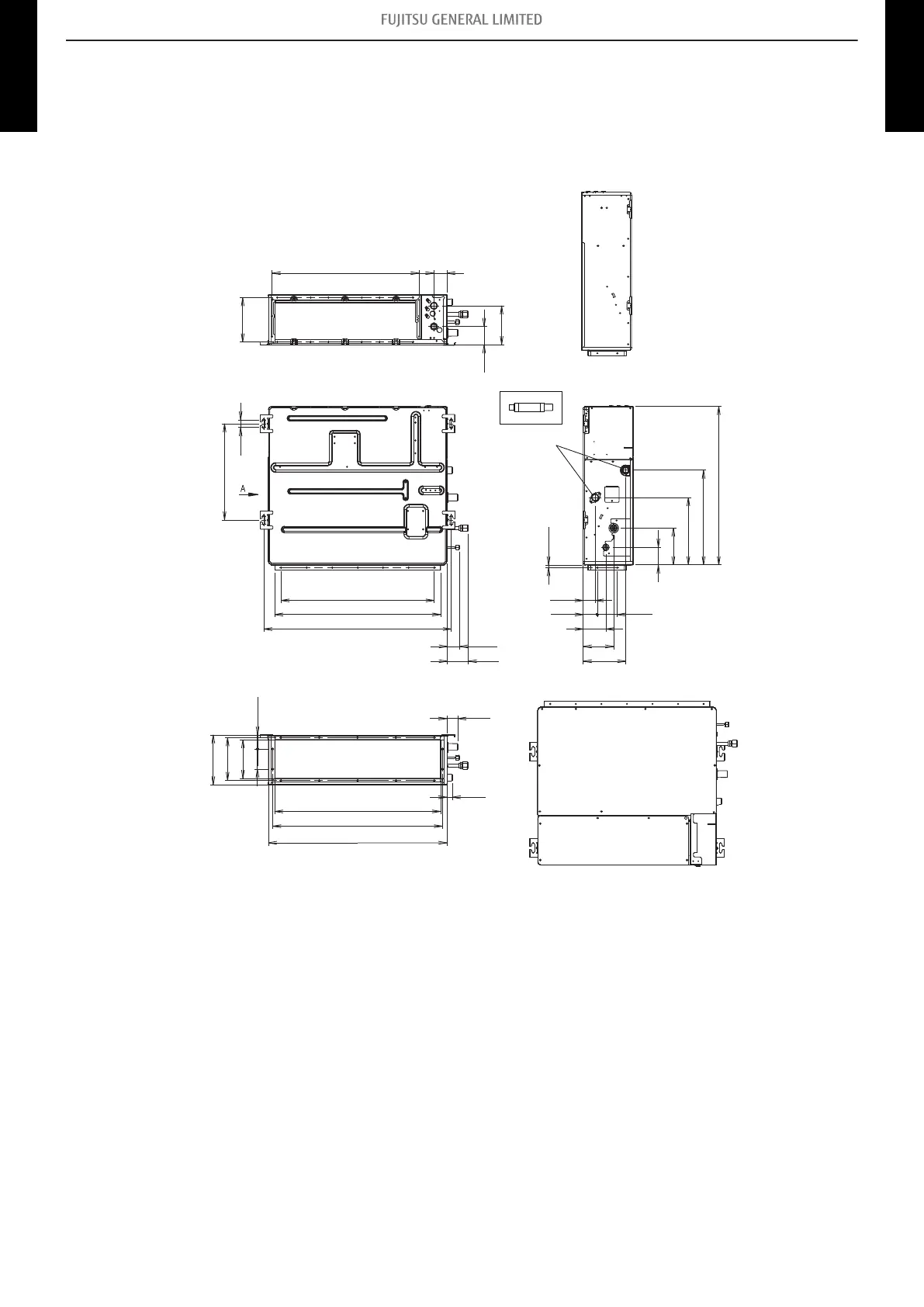

2-3. Slim duct type
¢
Models: ARXG07KLLAP, ARXG09KLLAP, ARXG12KLLAP, and
ARXG14KLLAP
Rear view
View A
Top view
Side view
Front view
Bottom view
(Drain hose)
Drain port
51
574
174
71
152
100 x 6 = 600
82
48
650
734
30
377
167
119
89
78
55
47
10
620
371
264
144
69
650
664
700
43
20
198 168 151
78 55
Unit: mm
