Fujitsu ARXG14KSLAP User Manual

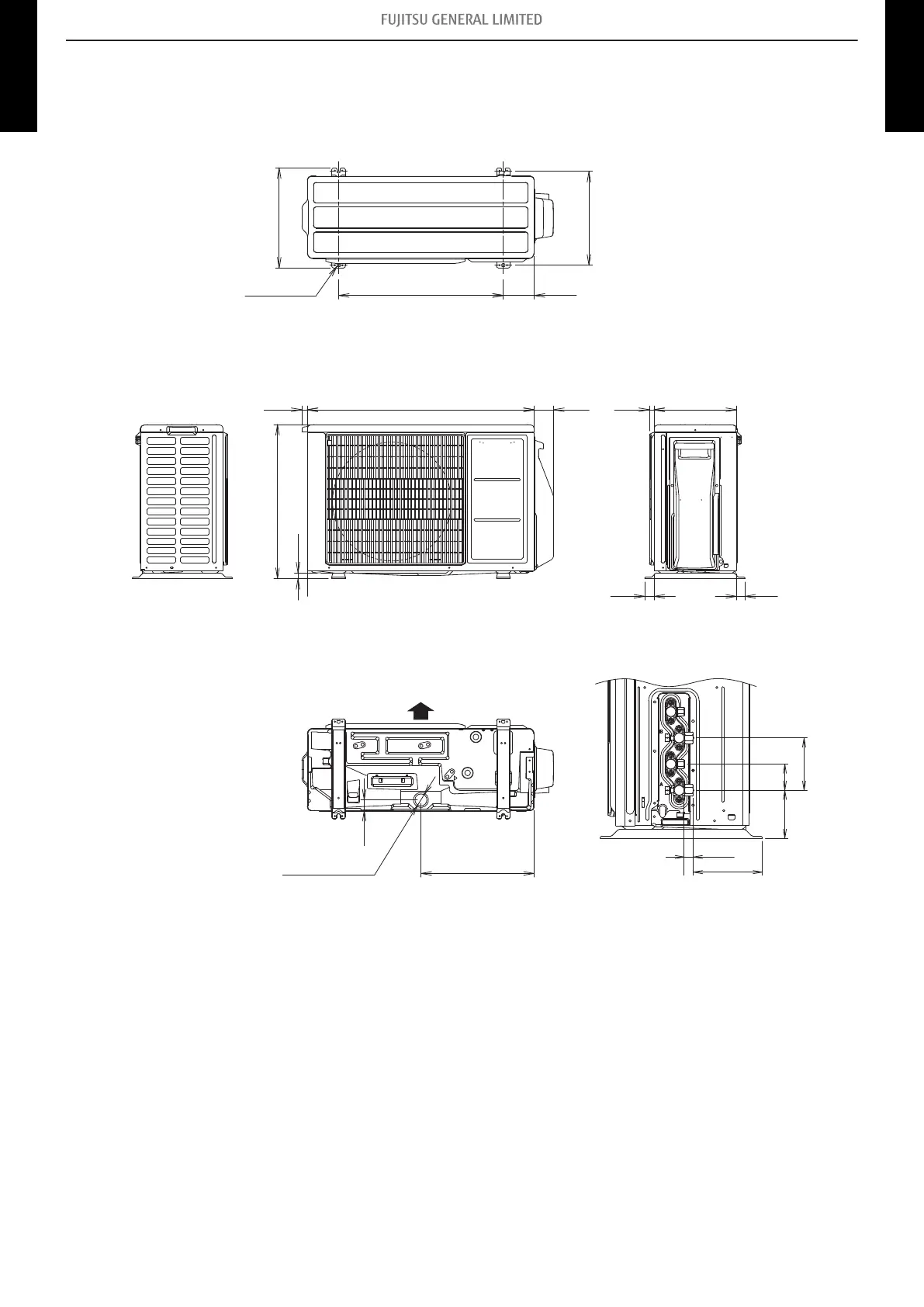

2-6. Outdoor unit
¢
Model: AOHG14KBTA2
Unit: mm
580
109
330 353
Pitch of bolts for installation
Pitch of bolts for installation
Top view
4- M1 0 hole
Side viewSide view
Front view
799 68 29016
33 30
19
542
20
Airflow
Bottom view Side view (Valve part)
37
399
Drain port Ø42
114
57104.4
150.1
19.7
2-6. Outdoor unit - (01-32) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

Fujitsu ARXG14KSLAP Specifications

General

Brand	Fujitsu
Model	ARXG14KSLAP
Category	Air Conditioner
Language	English
