¢ Model: ARXG30KMLA (Static pressure mode 1)
Static pressure (Pa)
17 26 32 38 45 55 64 80
Fan speed
HIGH
m3/h — — — — — 1,950 1,860 1,700
l/s — — — — — 542 517 472
CFM — — — — — 1,148 1,095 1,001
MED
m3/h — — — — 1,730 1,620 1,520 —
l/s — — — — 481 450 422 —
CFM — — — — 1,018 953 895 —
LOW
m3/h — 1,340 1,265 1,190 — — — —
l/s — 372 351 331 — — — —
CFM — 789 745 700 — — — —
QUIET
m3/h 1,080 970 — — — — — —
l/s 300 269 — — — — — —
CFM 636 571 — — — — — —
Airflow (m
3
/h)
60
40
20
Static pressure (Pa)
900 1,100 1,500 1,700 1,900 2,100 2,300
Q-h Characteristic curve
1,300
50
30
10
90
70
80
Low
Quiet
Med
Hi
- 21 -

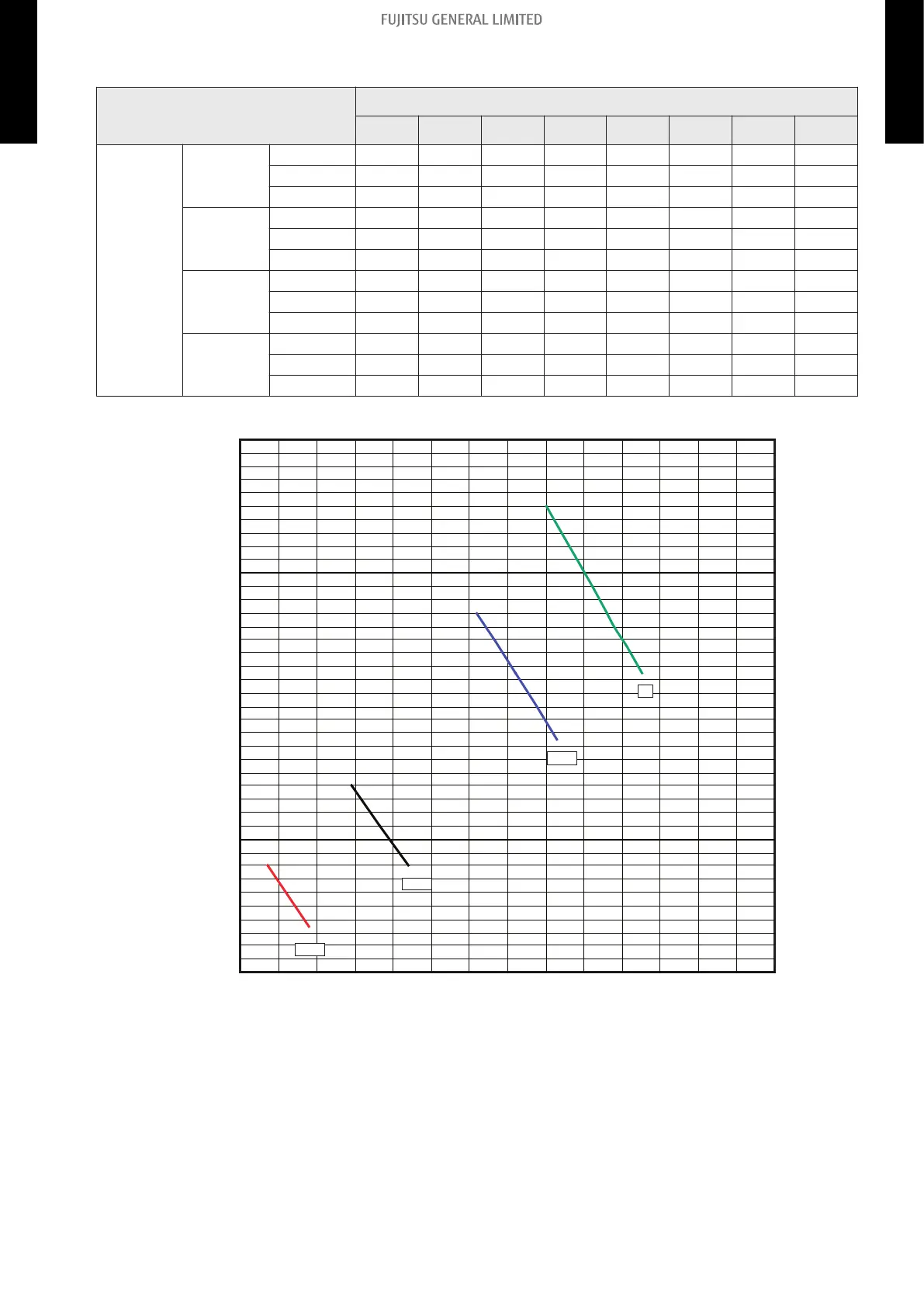

5-1. Fan performance curve
5. Fan performance
