¢ Evaporator
22
21

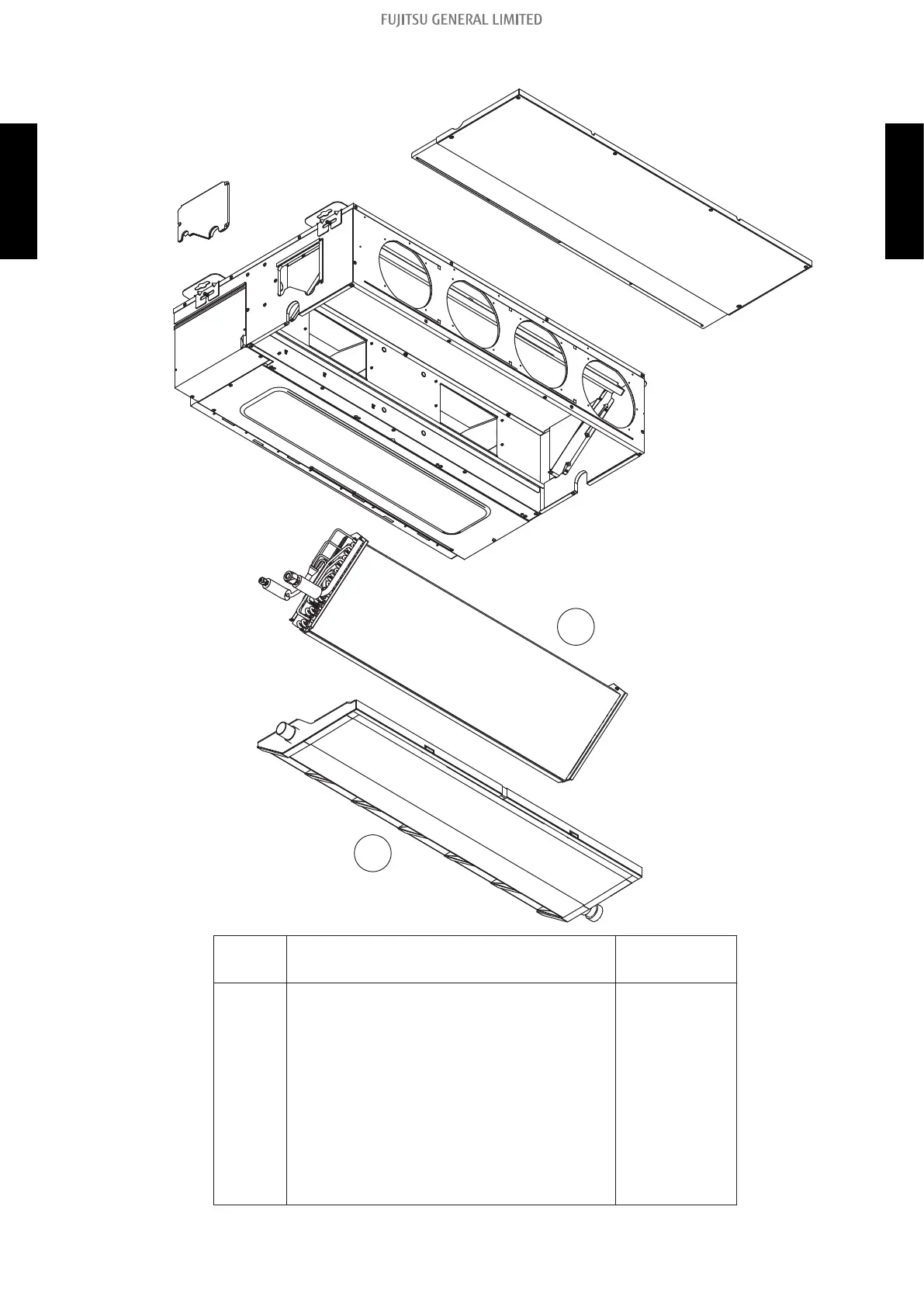

22 Evaporator Total Assy (24KMLA)
21 Drain pan sub assy
Main panel sub assy
Ref. Description
Part number
Bracket pipe sub assy
9374517978
22 Evaporator Total Assy (30, 36KMLA) 9383816048
22 Evaporator Total Assy (45KMLA) 9383816031
9374513017
2-1. Models: AR↓G36KMLA and AR↓G45KMLA - (02-4) - 2. Indoor unit parts list
