Fujitsu ARXG36KMLA - Page 21

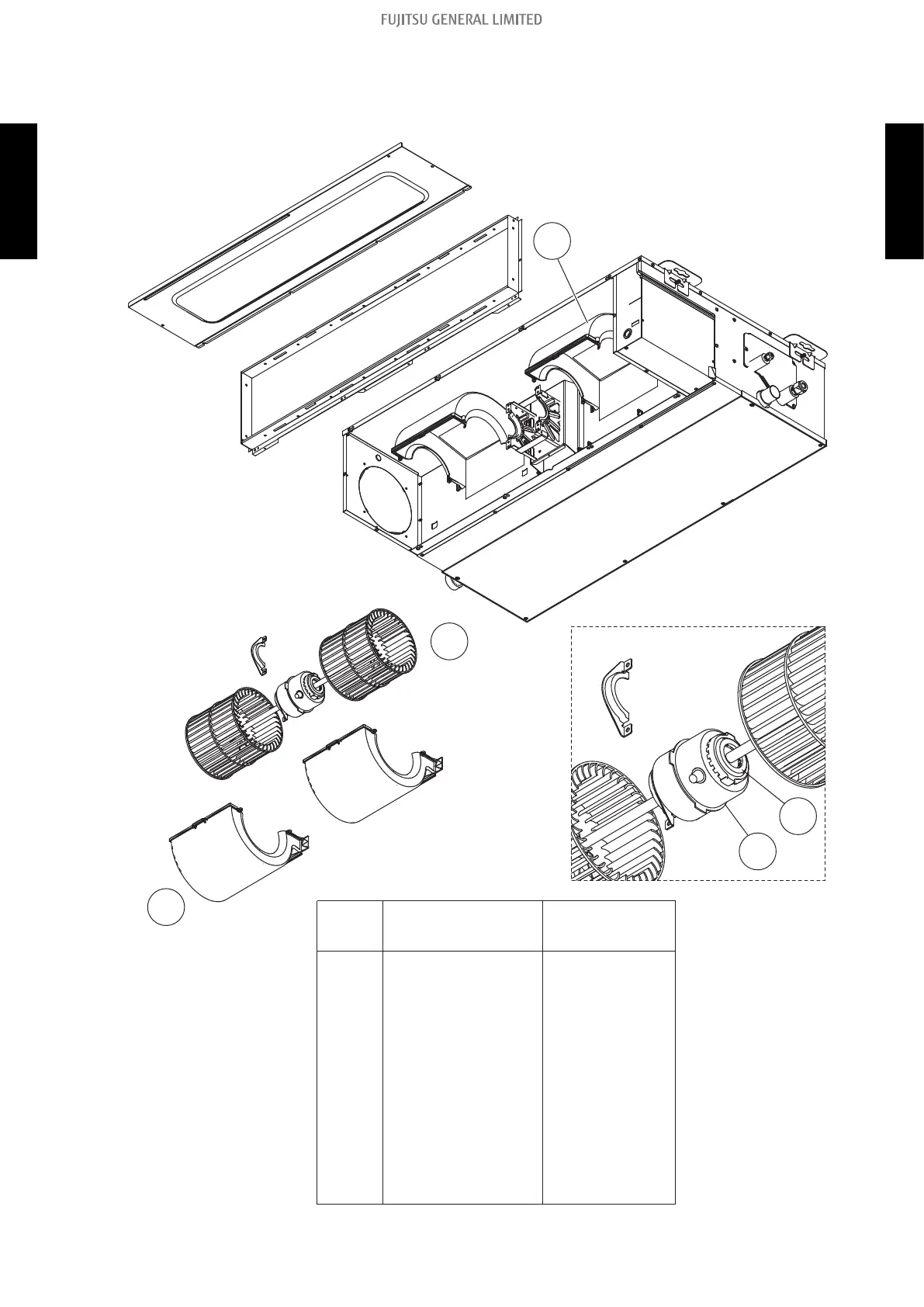

¢ Casing and fan
31
32
33
Intake cover sub assy
Intake frame assy
32 Casing B 9374234028
33 Sirocco fan assy 9356531060
35 Rubber 9385102002
31 Casing A 9374233021
34 Fan motor assy 9380718031
Ref. Description
Part number
35
34
Motor bracket
2-1. Models: AR↓G36KMLA and AR↓G45KMLA - (02-5) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST
