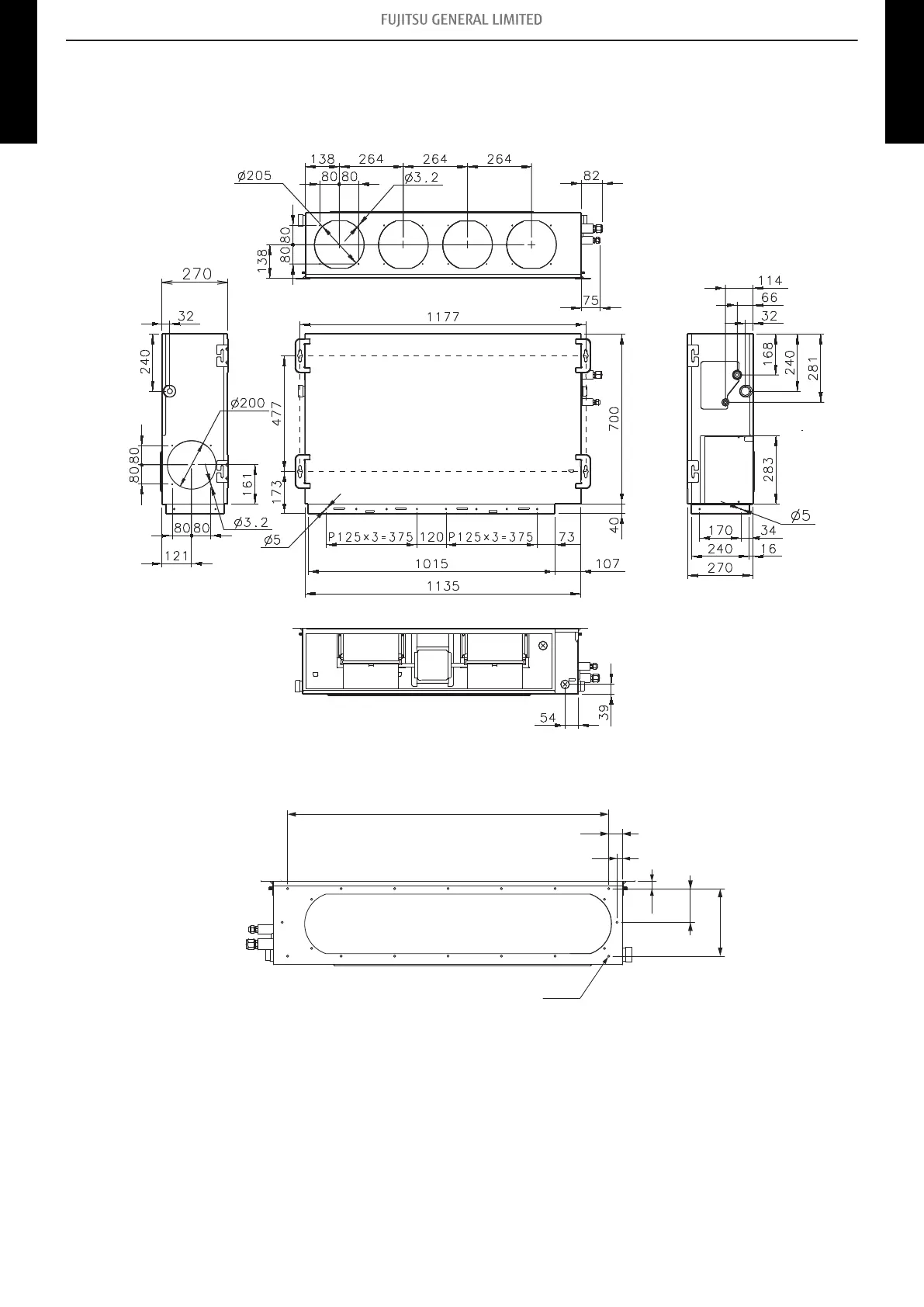

3-3. Duct type
¢
Models: ARXG22KMLA and ARXG24KMLA
Front view
Top view
Side view (L)
Side view (R)
Rear view
Unit: mm
• When using a square duct
- 10 -
3-3. Duct type 3. Dimensions
INDOOR UNITS
SIMUL. MULTI-SPLIT
INDOOR UNITS
SIMUL. MULTI-SPLIT
