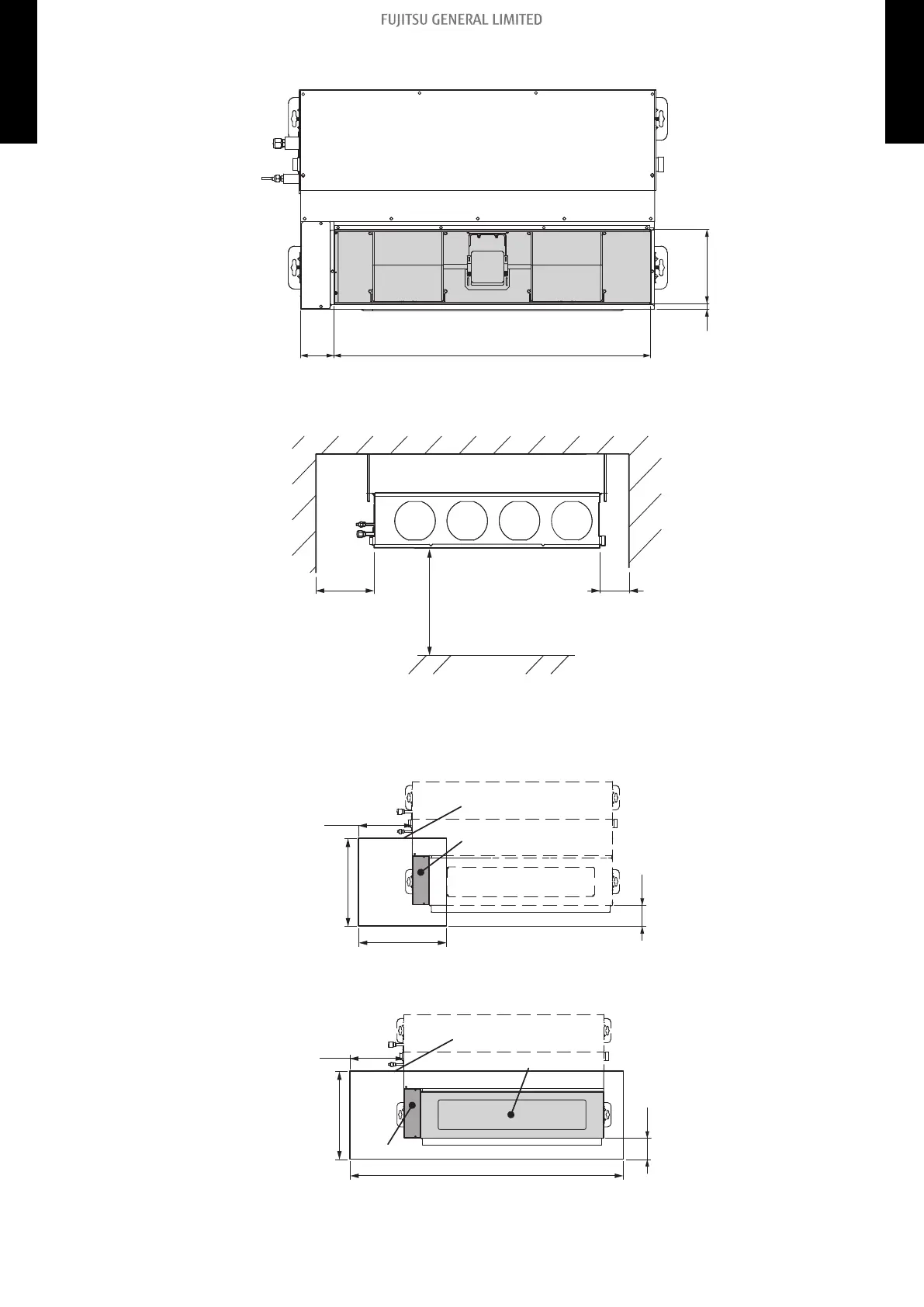

Item no. Part no. Part name Service part
1 9383880001 Top panel assy ♦
2 9381013005 Protective net ♦
3 9375361013 Net rubber ♦
4 9900984038 Thermistor (Heat exchanger) ♦
5 9900727154 Thermistor assy ♦
6 9383607004 Thermistor holder ♦
7 9383874017 Right panel sub assy ♦
8 9383879005 Pipe cover (Rear) ♦
9 9709684146 Inverter PCB ♦
10 9900634025 Reactor assy ♦
11 9901053016 Terminal ♦
12
9711433077 Main PCB (45 model) ♦
9711433084 Main PCB (54 model) ♦
13 313166024302 Drain cap ♦
14 9303029015 Drain assy ♦
15 9350255009 Base assy ♦
16 9383876011 Service panel sub assy ♦
17 9383878008 Pipe cover (Front) ♦
18 — Emblem rear Not available
19 9383863011 Front panel assy ♦
20 9383604003 Blow grille ♦
21 9383689000 Blow grille insulation ♦
22 9383882012 Left panel sub assy ♦
23 9383336003 Propeller fan ♦
24 9603733018 DC fan motor ♦
25 9383862014 Motor bracket assy ♦
26 9374420605 Condenser sub assy ♦
27 9901031014 Thermistor (Heat sink) ♦
a — Separate wall assy —
b — Control box unit —
3-1. Models: AOYG45KRTA and AOYG54KRTA - (02-5) - 3. Outdoor unit parts list
