Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
6.35mm(1/4")
Capillary tube
Charging valve
Compressor
OUTDOOR UNITINDOOR UNIT

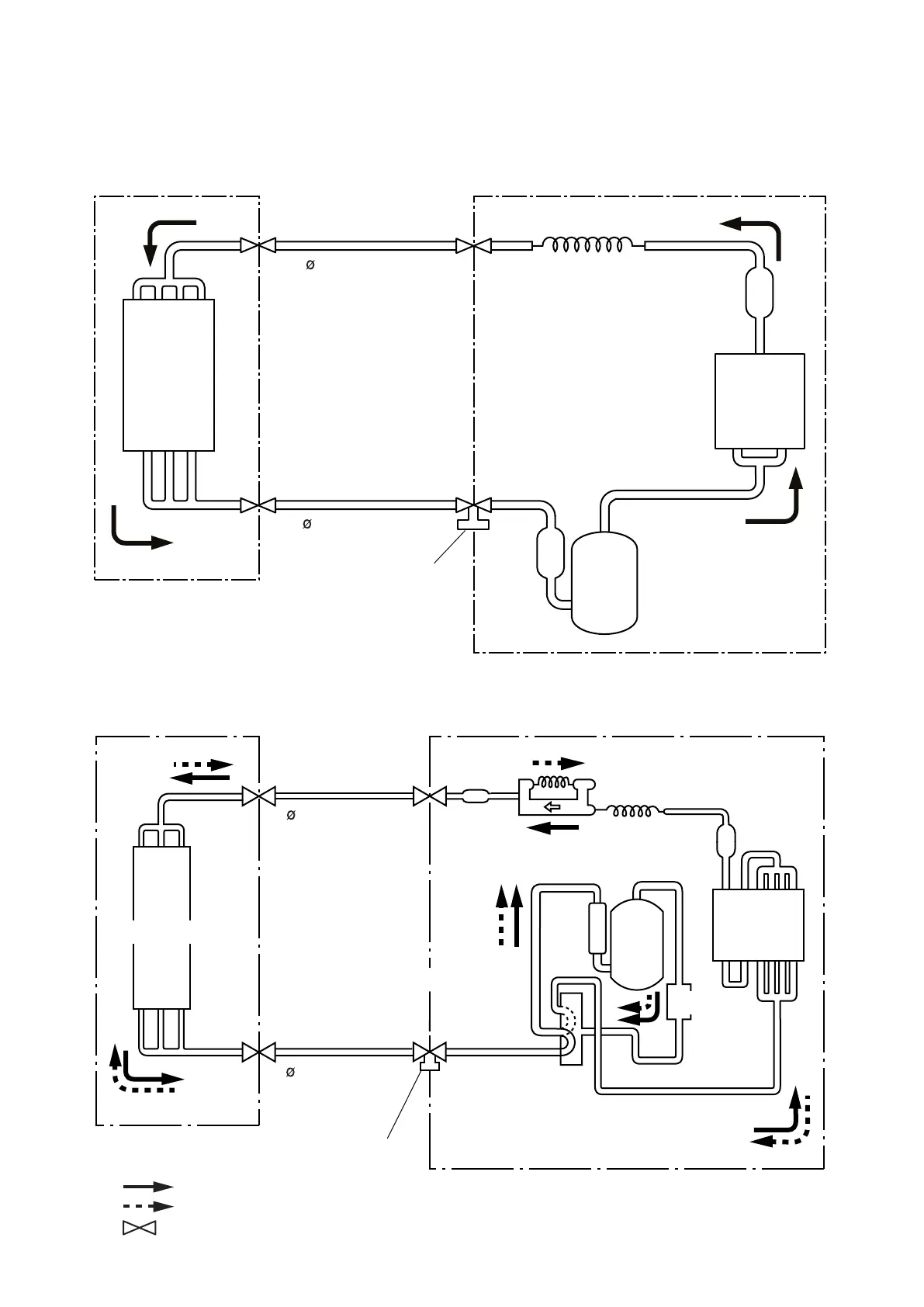

REFRIGERANT SYSTEM DIAGRAM
Strainer
Condenser
INDOOR UNIT
Refrigerant pipe
6.35mm(1/4")
Refrigerant pipe
15.88mm(5/8")
Capillary
tube
OUTDOOR UNIT
Condenser
Muffler
Compressor
Strainer
4-Way
valve
Charging valve
Evaporator
Distributor
Accumulator
Models :
ARY18FUAL / AOY18FNDN
Models :
ARY18UUAL / AOY18UNDNL
Evaporator
Strainer
Cooling
Heating
: Flare coupling
