Fujitsu ARY25RLC - Outdoor Printed Circuit Board Circuit Diagram

POWER SOURCE
240V
50Hz
CONTROLLER PCB ASSEMBLY ( MAIN PCB )
EZ-0028HUE-C
Models : AOY25RNBL
AOG25RNBL

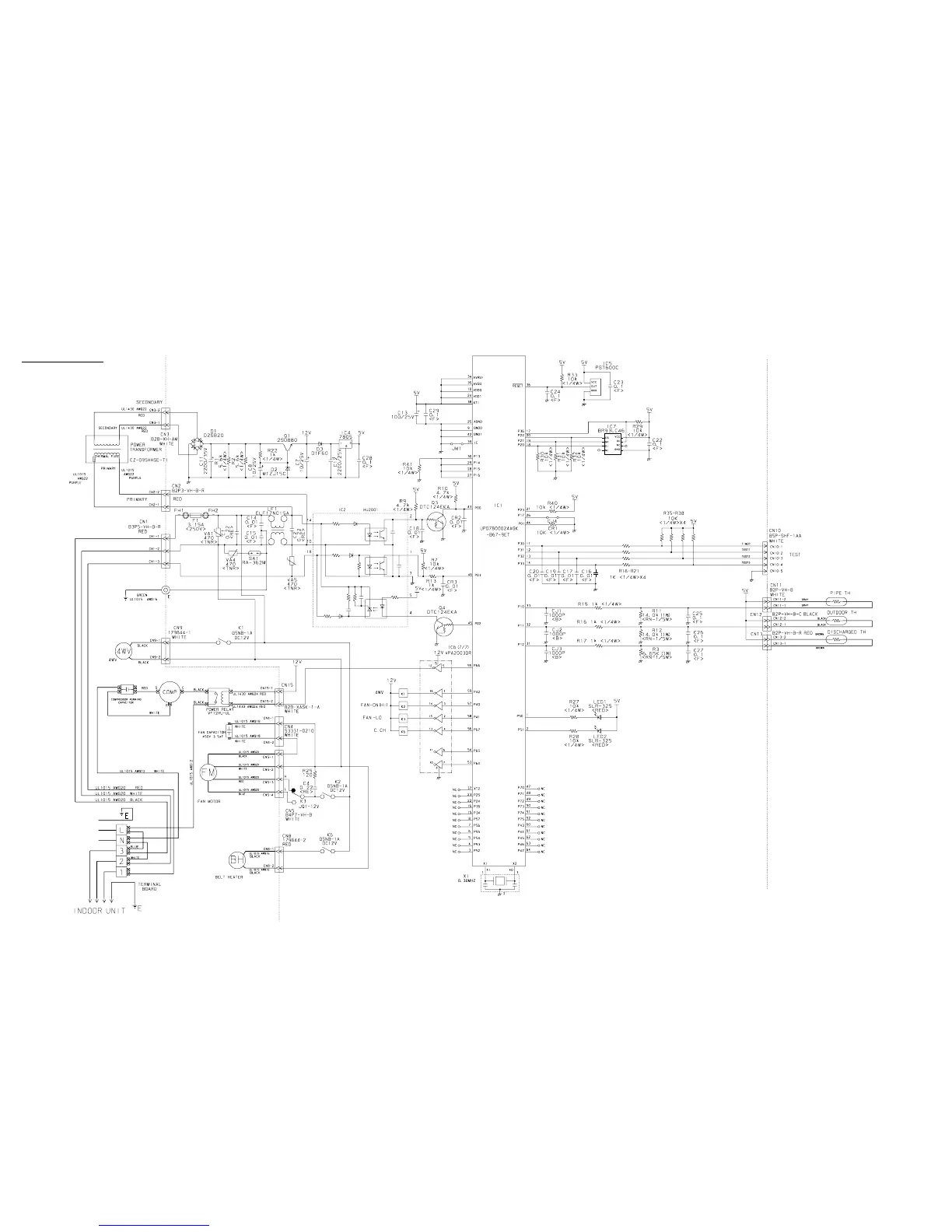

O U T D O O R P R I N T E D C I R C U I T B O A R D
C I R C U I T D I A G R A M
2003.05.08 21
