Fujitsu ARY90TLC3 - OUTLINE AND DIMENSIONS

22003.09.19
Models : ARG90ELC3
ARG90TLC3
ARY90ELC3
ARY90TLC3

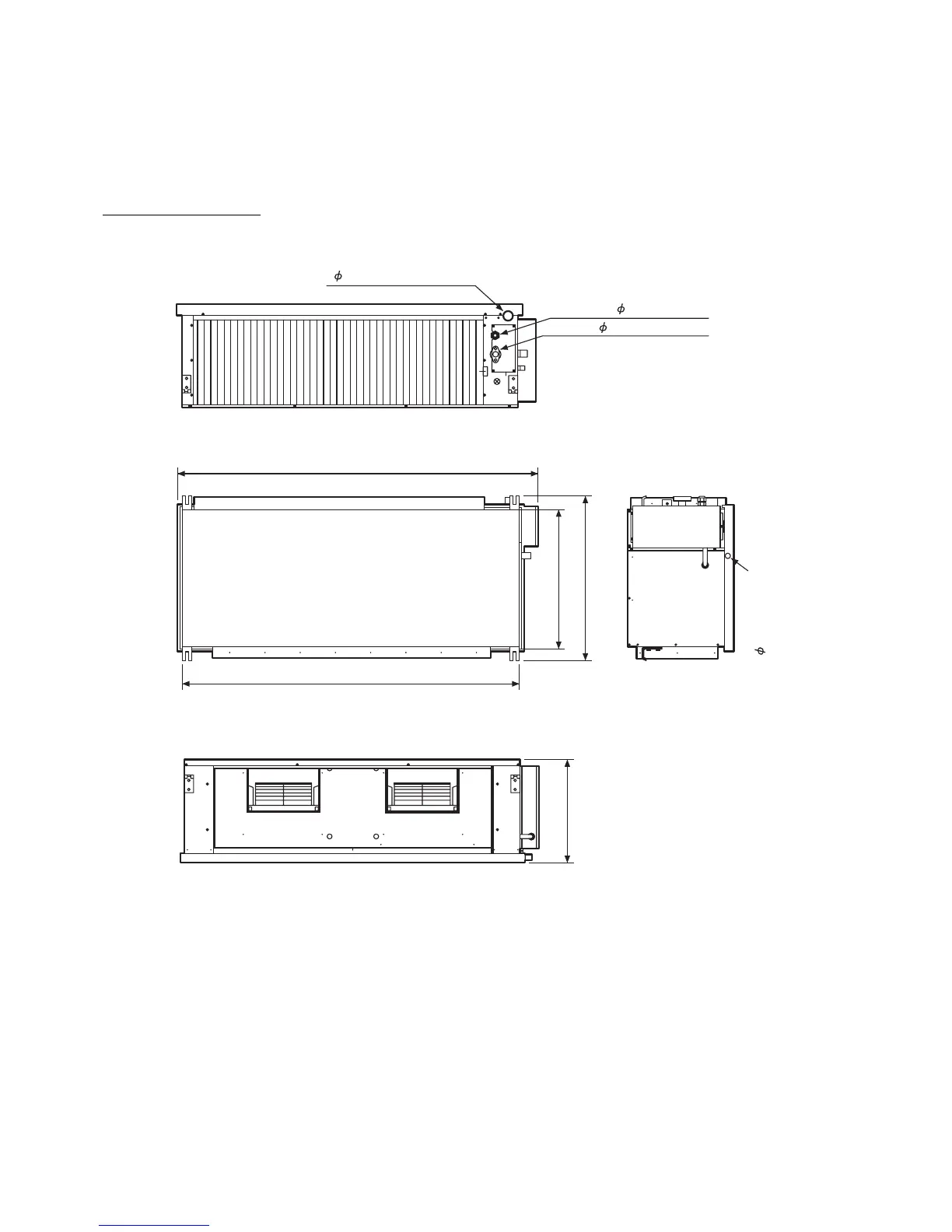

O U T LIN E A N D DIM E N S IO N S
38.1 (DRAIN PIPE)
LIQUID : 12.7 FLARE
GAS : 28.58 FLANGE
1,550 (MAXIMUM)
1,450
600
450
713 (MAXIMUM)
25.4 (SAFETY DRAIN)
(Unit : mm)
