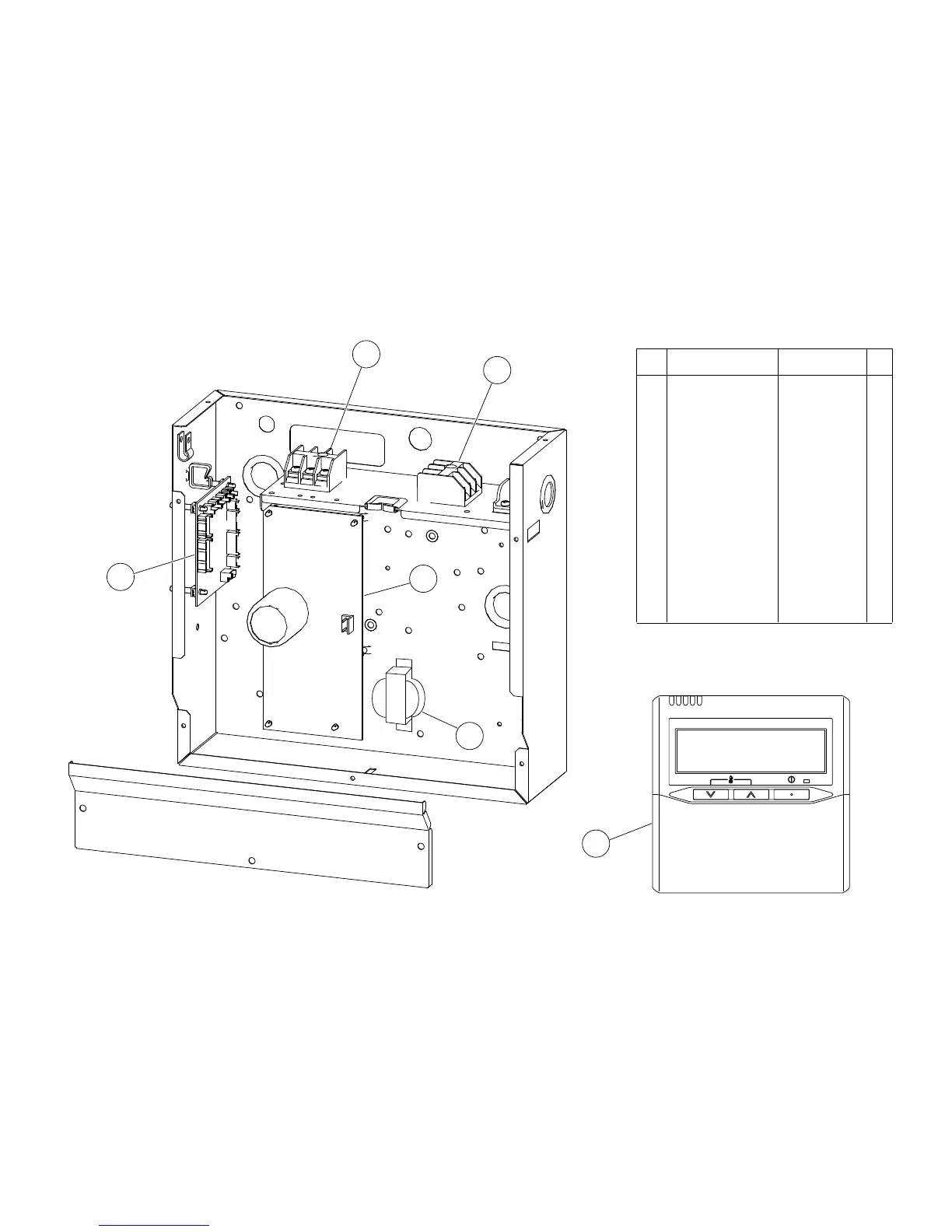

INDOOR UNIT
DUCT
ARYG22LMLA
ARYG24LMLA
33
32
31
35
36
2012.12.26
59
31 Main PCB (22)
31 Main PCB (24)
9709245491
33 Terminal 3P 9703345012
34 Terminal 3P 9306489045
32 Power Supply PCB 9707398373
35 Reactor Assy 9707457018
-- Room Thermistor 9703299025
-- Pipe Thermistor 9703297021
36 Remote Control 9318593013
Ref. Description Part number
9709245323
34
