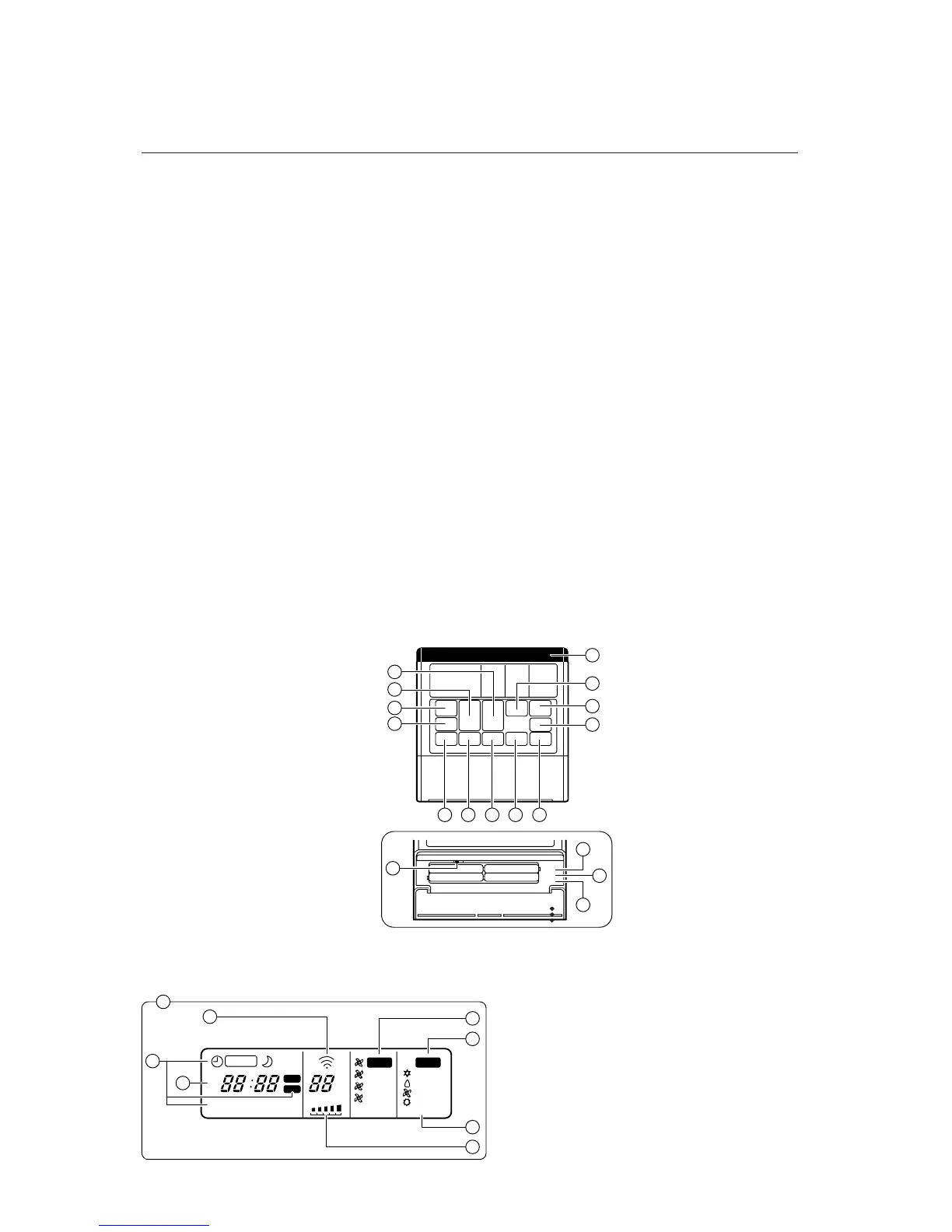

WIRELESS REMOTE CONTROL UNIT ( Wall fixing type )
q SLEEP button
w MASTER CONTROL button
e SET TIME buttons (▲ / ▼)
r SET TEMP. buttons (▲ / ▼)
t Signal Transmitter
y TIMER button
u FAN CONTROL button
i START/STOP button
o AIRFLOW DIRECTlON
VERTICAL SET Button
!0 AIRFLOW DIRECTION
VERTICAL SWING Button
!1 AIRFLOW DIRECTION
HORIZONTAL SET Button
!2 AIRFLOW DIRECTlON
HORIZONTAL SWING Button
!3 ENERGY SAVE Button
Inside of battery cover
!4 TIME ADJUST button
!5 ACL button
(located inside battery compartment)
!6 TEST RUN button
• This button is used when installing the air condi-
tioner, and should not be used under normal con-
ditions, as it will cause the air conditioner's ther-
mostat function to operate incorrectly.
•
lf this button is pressed during normal operation, the
unit will switch to test operation mode, and the Indoor
Unit's OPERATION Indicator Lamp and TIMER
Indicator Lamp will begin to flash simultaneously.
• To stop the test operation mode, either press the
TEST RUN button once again, or press the
START/STOP button to stop the air conditioner.
!7 CODE CHANGE Switch
• Switching the remote controller code.
•
Use remote controller code A (on the leftmost side) to
operate the unit using the remote controller.
• When it is necessary to switch the remote con-
troller code. contact a service technician since the
PCB remote controller code of the indoor unit
must also be switched.
Remote Control Unit Display
!8 Remote Controller Display
!9 Transmit lndicator
@0 Clock Display
@1 Operating Mode Display
@2 Timer Mode Display
@3 Fan Speed Display
@4 Temperature Set Display
@5 Energy Save Display
