AS✽30A, AS✽30R (50Hz models)
ASS30A, ASS30R (60Hz models)
60
Octave band sound pressure level
dB: (0dB=0.0002µ bar)
50
40
30
20
63 125 250 500 1000
Octave band center frequency (Hz)
2000 4000 8000
N70
N60
N50
N40
N30
N70
N60
N50
N40
N30
N70
N60
N50
N40
N30
70
AS✽20A, AS✽20R (50Hz models)
ASS20A, ASS20R, ASC-502B (60Hz models)
60
Octave band sound pressure level
dB: (0dB=0.0002µ bar)
50
40
30
20
63 125 250 500 1000
Octave band center frequency (Hz)
2000 4000 8000
70
AS✽24A, AS✽24R (50Hz models)
ASS24A, ASS24R, ASC-602B (60Hz models)
60
Octave band sound pressure level
dB: (0dB=0.0002µ bar)
50
40
30
20
63 125 250 500 1000
Octave band center frequency (Hz)
2000 4000 8000
70
AO✽30A, AO✽30R
60
Octave band sound pressure level
dB: (0dB=0.0002
µ bar)
50
40
30
20
63 125 250 500 1000
Octave band center frequency (Hz)
2000 4000 8000
70
AO✽17A, AO✽20A, AO✽20R
AO✽17R, AO✽24A, AO✽24R
60
Octave band sound pressure level
dB: (0dB=0.0002
µ bar)
50
40
30
20
63 120 250 500 1000
Octave band center frequency (Hz)
2000 4000 8000
70
60
Octave band sound pressure level
dB: (0dB=0.0002
µ bar)
50
40
30
20
63 120 250 500 1000
Octave band center frequency (Hz)
2000 4000 8000
N70
N20
N20
N20
N60
N50
N40
N30
N70
N60
N50
N40
N30
N70
N60
N50
N40
N30
High
High
High
■ OUTDOOR UNIT SIDE■ INDOOR UNIT SIDE

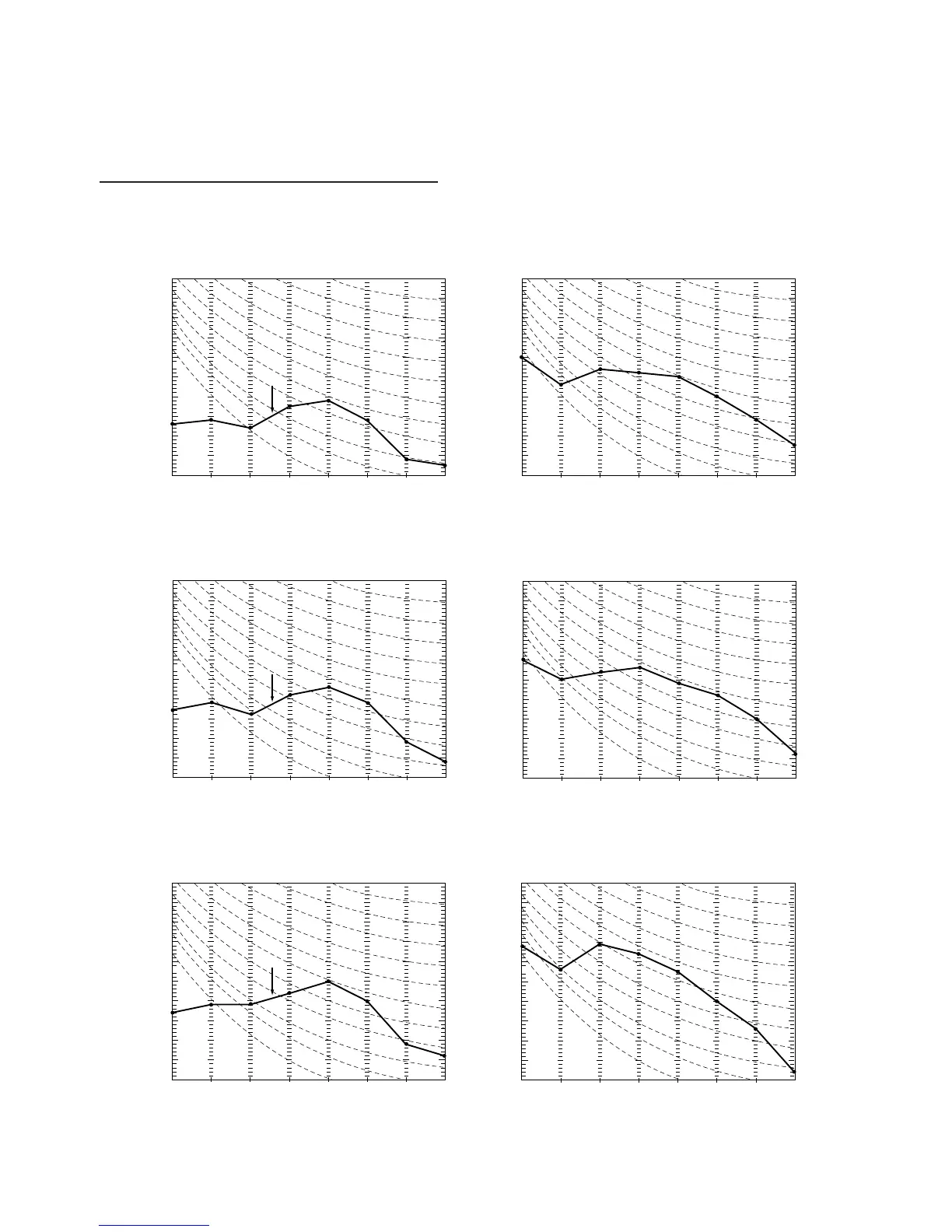

4.5.4 NOISE LEVEL CURVE
WALL MOUNTED LARGE TYPE
