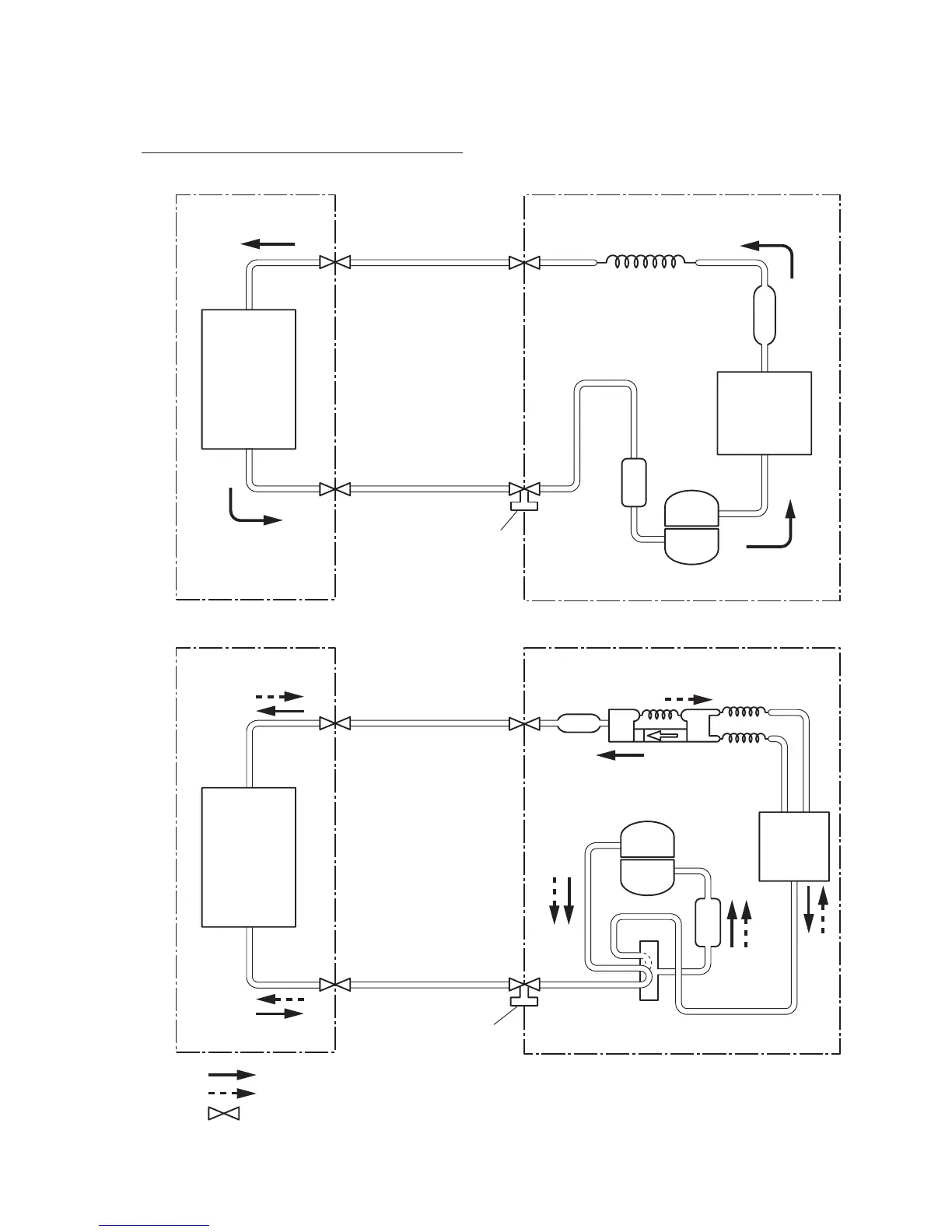

5.1.2 COMPACT MII SERIES
Refrigerant pipe
ø 9.53mm(3/8")
Refrigerant pipe
ø 6.35mm(1/4")
Capillary tube
Charging valve
3-Way
valve
2-Way valve
Compressor
Strainer
OUTDOOR UNITINDOOR UNIT
Condenser
Evaporator
Evaporator
Refrigerant pipe
ø 9.53mm(3/8")
Refrigerant pipe
ø 6.35mm(1/4")
Charging valve
Cooling
Heating
: Flare coupling
4-Way
valve
2-Way
valve
Strainer
Compressor
Check valve
Capillary tube
for heating
Capillary tube
for heating and cooling
OUTDOOR UNITINDOOR UNIT
Condenser
Models : AS ✽ 9A / AO ✽ 9A
Models : AS ✽ 9R / AO ✽ 9R
