– 78 –

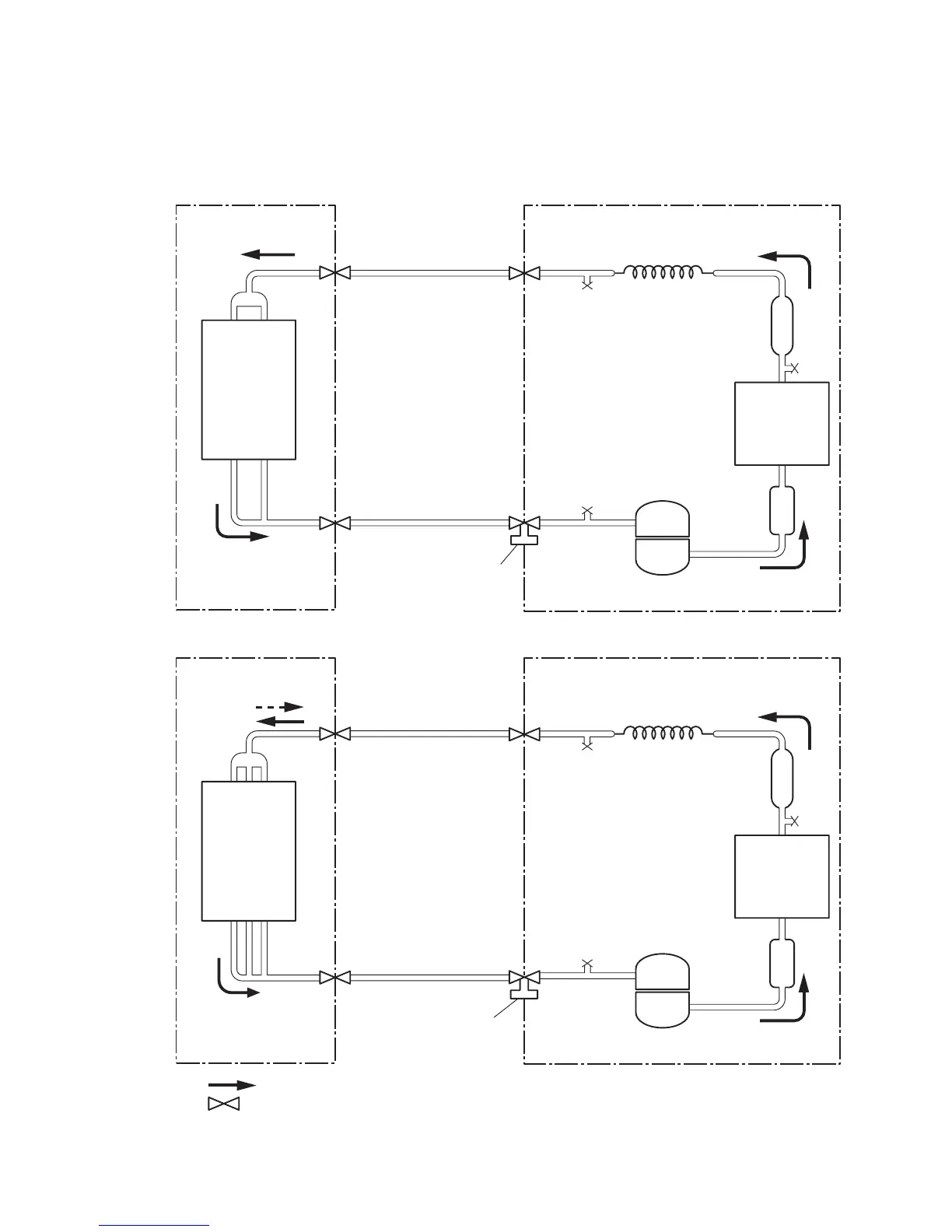

Refrigerant pipe
Distributor
Distributor
ø 15.88mm(5/8")
Refrigerant pipe
ø 9.53mm(3/8")
Capillar
y tube
Charging valv
e
Compressor
Dr
y
er
Muffler
OUTDOOR UNIT
INDOOR UNIT
Condenser
Capillar
y tube
Compressor
Dr
y
er
Muffler
OUTDOOR UNIT
Condenser
Evapor
ator
Evapor
ator
Refrigerant pipe
ø 15.88mm(5/8")
Refrigerant pipe
ø 9.53mm(3/8")
Charging valv
e
Cooling
:
Flare coupling
OUTDOOR UNIT
INDOOR UNIT
Models : ASC-502B / AOC-502B
Models : ASC-602B / AOC-602B
78
80
Table of Contents
Default Chapter
2
Table of Contents
2
1 Features
3
Model Identification
3
Application Model
4
Features of each Model
7
Automatic Operation
12
Auto Changeover Operation
13
Cooling Operation
13
Fan Operation
14
Auto Fan Speed
14
Off Timer
15
Sleep Timer Operation
15
Program Timer
15
Energy Save Operation
15
Printed Wiring Board Settings
19
2 Specifications
21
Compact Sii, MII & Li Series (as 7A, 7R, 9A, 9R, 12A, 12R, 14A, 14R, 17A, 17R)
21
Wall Mounted Large As-Series (as 20A, 20R, 24A, 24R, 30A, 30R)
24
Universal Ab-Series (Ab 14A, 14R, 18A, 18R, 24A, 24R)
28
3 Outline and Dimensions
31
Models : as
32
Models : as 9A, 9R, 12A, 12R
32
Models : as 14A, 14R
33
Models : as 17A, 17R
34
Models : as 20A, 20R, 24A, 24R, 30A, 30R, Asc-502B, Asc-602B
35
Models : as 14A, 14R, 18A, 18R, 24A, 24R
37
4 Data
39
Performance Curve
39
Tempterature Range
49
Refrigerant Charging
50
Air Velocity Distribution
53
Noise Level Measurement
65
5 Diagrams
70
Refrigerant System Diagram
70
Circut Diagram
85
Controller Circuit Diagram Ez Number List
105
Controller Pcb Circuit Diagram
109
Remote Controller Circuit Diagram
120
6 Installation Instructions
130
Split Type Room Air Conditioner (as 20A, 24A)
130
Standard Accessories
133
Electrical Requirement
133
Floor Console/Under Ceiling Dual Type
145
Installation Manual
145
For Authorized Service Personnel Only
145
Indoor Unit Accessories
147
Connection Pipe Requirement
147
5
Based on 1 rating
Ask a question
