Fujitsu AS G07KGTB Series Design & Technical Manual

¢

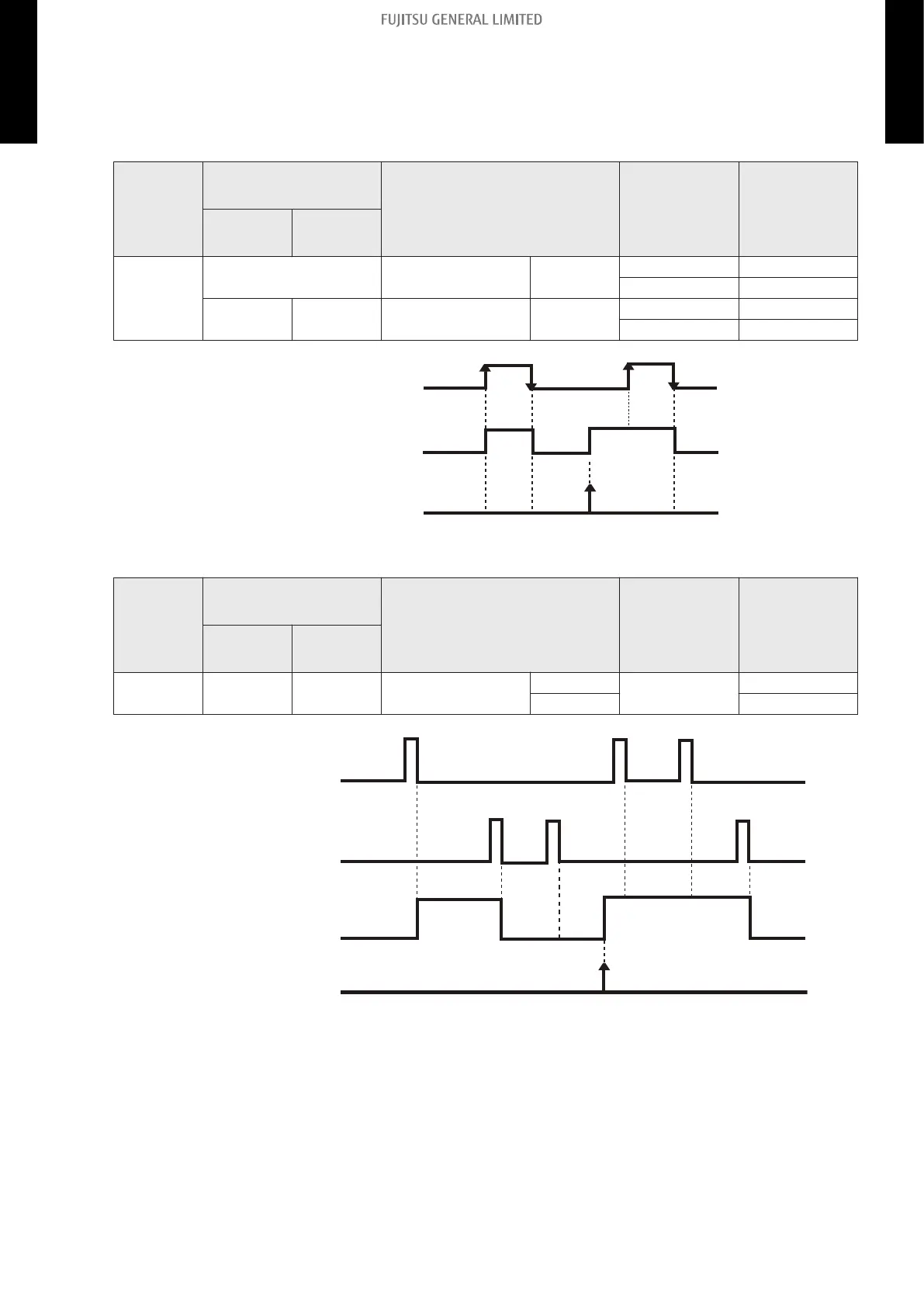

Details of control input function

Operation/Stop mode 1
• In the case of "Edge" input
Function
setting
External Input and
Output PCB
External input Input signal Command
Rotary
switch
SW2
46-00
— Input of indoor unit Terminal
Off → On Operation
On → Off Stop
1 Edge
External Input and
Output PCB
Ex IN 1
Off → On Operation
On → Off Stop
Remote controller
On
Off
Indoor unit operation
On
Ex IN 1
On
Off
• In the case of "Pulse" input
Function
setting
External Input and
Output PCB
External input Input signal Command
Rotary
switch
SW2
46-00 1 Pulse
External Input and
Output PCB
Ex IN 1
Pulse
Operation
Ex IN 2 Stop
On
Remote controller
On
Off
Indoor unit operation
Ex IN 1
On
Off
On
Off
Ex IN 2
NOTES:
• The last command has priority.
• The indoor units within the same remote controller group operates in the same mode.
