¶ Always use the remote control unit's
AIR FLOW DIRECTION button to adjust
the vertical airflow louvers. Attempt-
ing to move them manually could re-
sult in improper operation; in this case,
stop operation and restart. The louvers
should begin to operate properly
again.
¶ When used in a room with infants, chil-
dren, elderly or sick persons, the air
direction and room temperature
should be considered carefully when
making settings.
¶ Always operate the Air Flow Direction
Louvers and the Power Diffuser with
the air flow direction buttons on the
remote control. Forcible movement by
hand can cause incorrect operation. In
such a case, stop the operation to let
the unit return to normal condition.
¶ Do not set the Air Flow Direction Lou-
vers and the Power Diffuser for a long
time to the heating mode (7) during
cooling or drying operation. This can
cause condensation at the discharge
opening and dripping of water. (When
operation is continued for 30 minutes
or more in the heating mode 567 ,
automatic return will be made to the
direction 4.)
CAUTION
÷ Never place fingers or foreign objects
inside the outlet ports, since the internal
fan operates at high speed and could
cause personal injury.

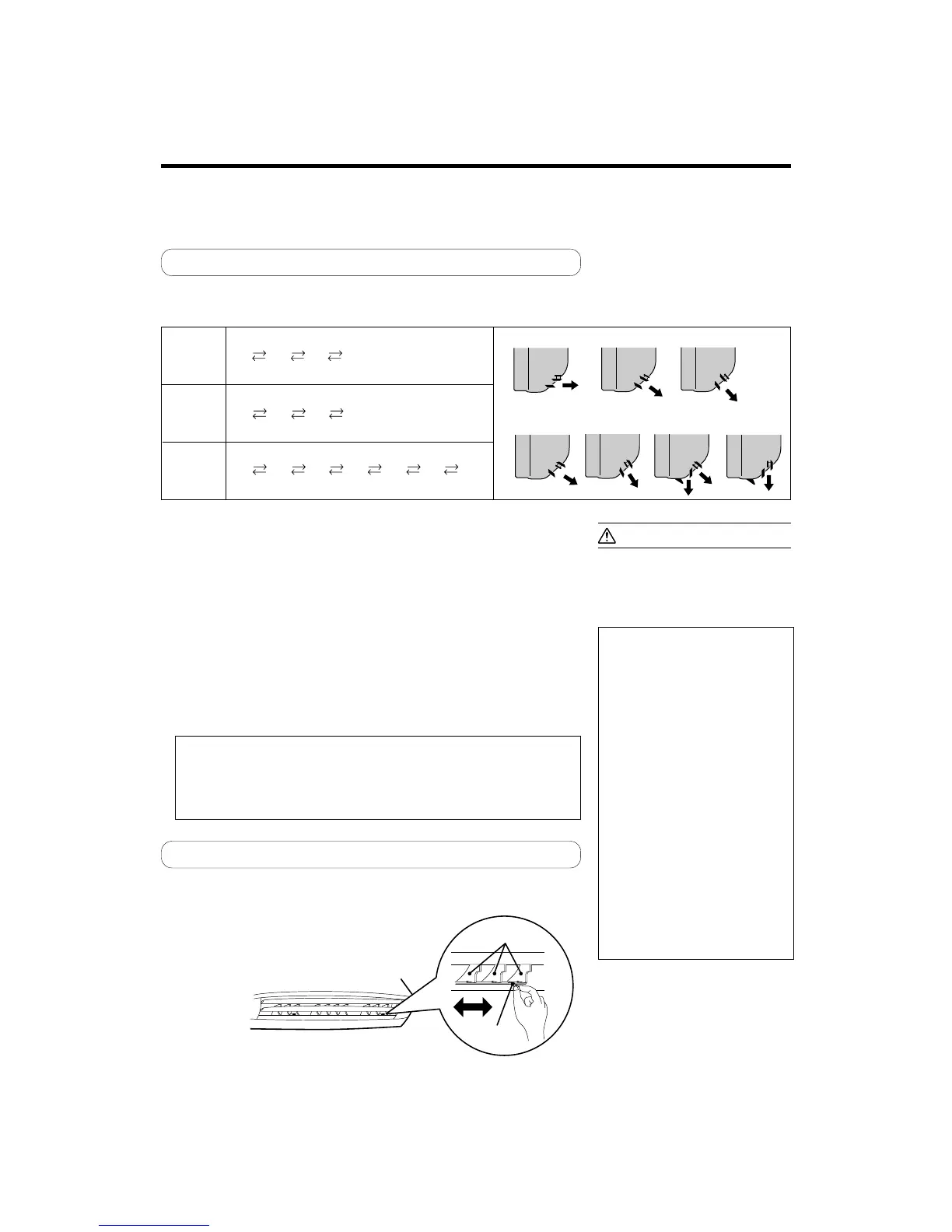

ADJUSTING THE DIRECTION OF AIR CIRCULATION
Vertical (up-down) direction of airflow is adjusted by pressing the Remote Control Unit's AIR FLOW DIRECTION button.
Horizontal (right-left) airflow direction is adjusted manually, by moving the Air Flow Direction Louvers.
Whenever making horizontal airflow adjustments, start air conditioner operation and be sure that the vertical air direction
louvers are stopped.
Vertical Air Direction Adjustment
Press the AIR FLOW DIRECTION button (Fig. 6 ™).
Each time the button is pressed, the air direction range will change as follows:
÷ Use the air direction adjustments within the ranges shown above.
÷ The vertical airflow direction is set automatically as shown, in accordance with
the type of operation selected.
During Cooling/Dry mode: Horizontal flow 1
During Heating mode: Downward flow 6
÷ If you wish to select a different airflow direction, you may use the remote control
unit's AIR FLOW DIRECTION button to choose a different setting.
÷ When the temperature of the air being blown out is low at the start of heating
operation or during defrosting, the airflow direction temporarily becomes 7 to
prevent cold air being blown onto the body.
÷ When the AIR FLOW DIRECTION button of the remote control unit is pressed,
some time is required until the airflow direction louvers reach the desired position.
During this time, adjustment of the airflow direction is not possible even when
the AIR FLOW DIRECTION button is pressed.
Knob
1
2
3
4
5
67
Cooling/Dry
mode
Right-Left Louvers
Right-Left Adjustment
Adjust the Right-Left Louvers
÷ Move the Right-Left Louvers to adjust air flow in the direction you prefer.
NOTE
During the cooling mode operation, you can select the air direction 1, 2, 3, or
6 (downward) by pressing the AIR FLOW DIRECTION button.
Use the air direction 6 when you want to cool yourself for a while after taking
a bath or shower, or after coming back home in summer months.
But, for prevention of condensation on the louver, the air direction 6 is
automatically released after 30 minutes and turned to the air direction 3.
3 (6)
NOTE
12
6 745
1 732 5 46
Fan mode
Heating
mode
