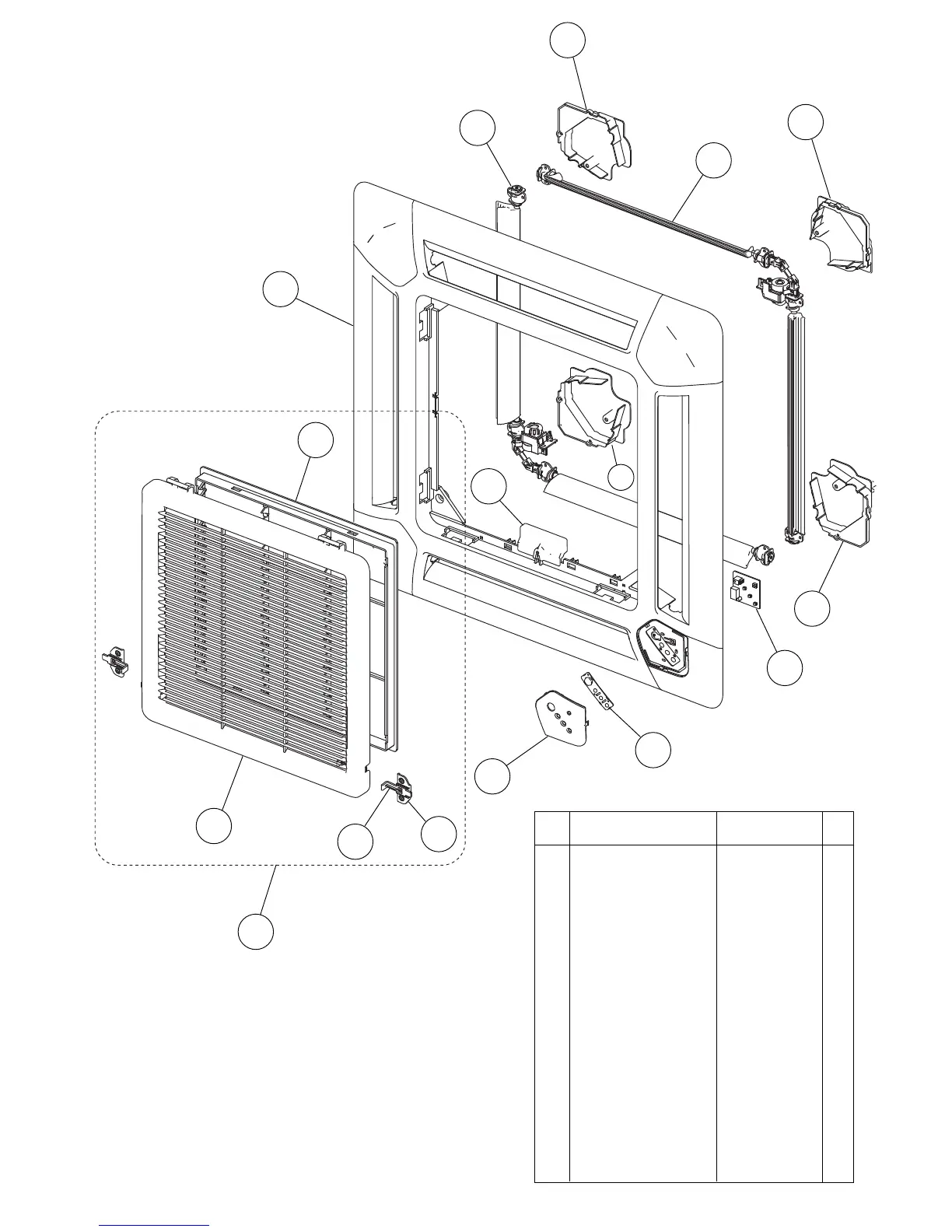

DECORATION PANEL
UTG-CCGF
Ref. Description
6 Decoration Panel
without Insulations
9375525033
7 Display Panel 9375529123
8 Receiver Window 9375547011
2 Intake Grille 9375531027
3 Long Life Filter 9375533014
9 Flap Total Assy 9377760029
4 Hook Bracket 9375546014
9375532024
9375530013
5 Grille Hook
10 Panel Cover
without Insulations
11 Indicator PCB Assy 9707371031
12 Connector Cover 9375549015
1 Intake Grille Assy 9375726027
