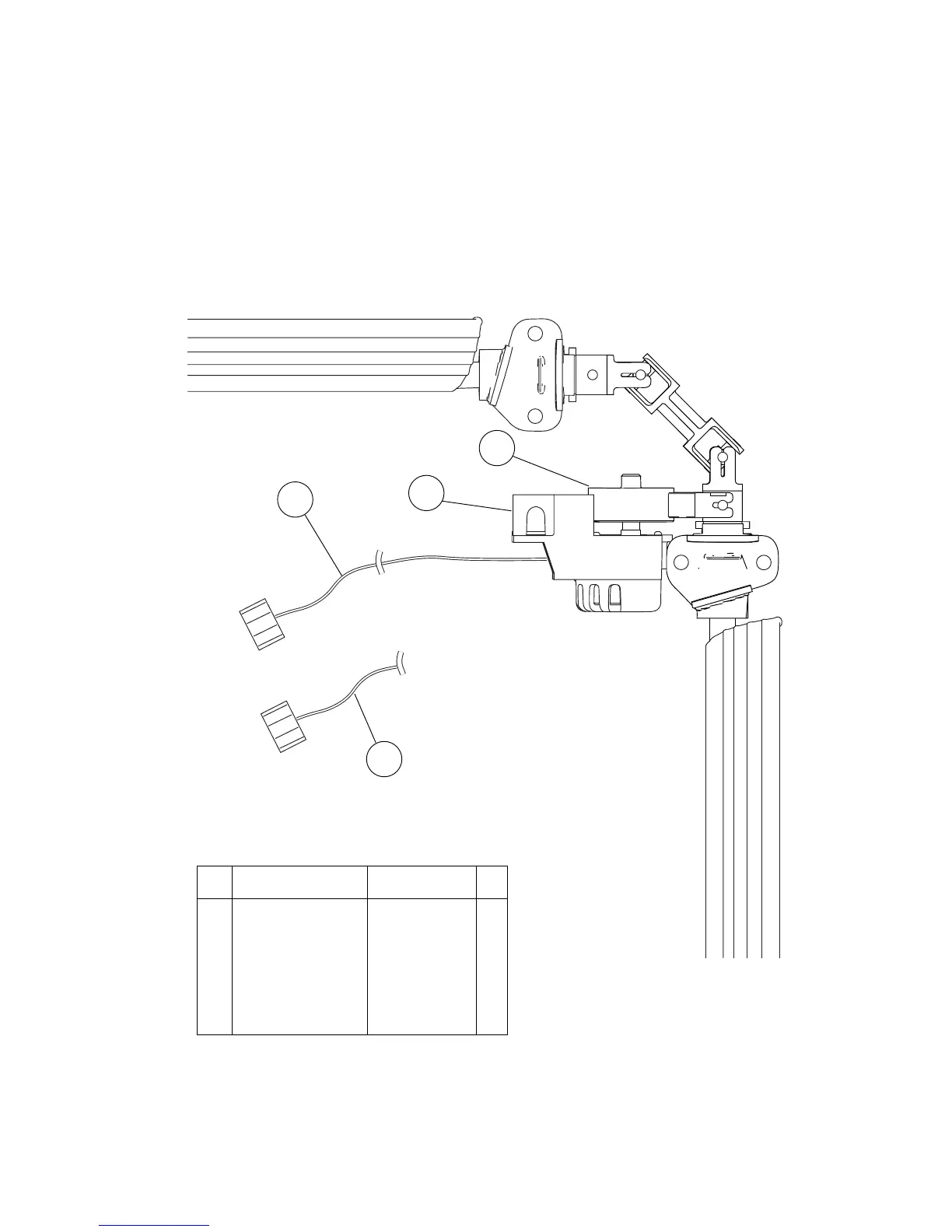

Flap total assy
Motor holder assy
512010.06.30
(connector : red)
(connector : white)
21
22
23
24
Ref. Description
21 Gear A 9375536015
22 Motor Holder 9375535018
23 Step Motor
(white connector)
9900139070
24 Step Motor
(red connector)
9900139087
Part number
DECORATION PANEL
UTG-CCGF
