Fujitsu ASU12RLF1 - Page 98

03-18
Hook
Screw
VIEW - A
VIEW - B
Main PCB
Red Yellow Pink
Brown
Screw
(IPM)
Screw
(Diode Bridge)

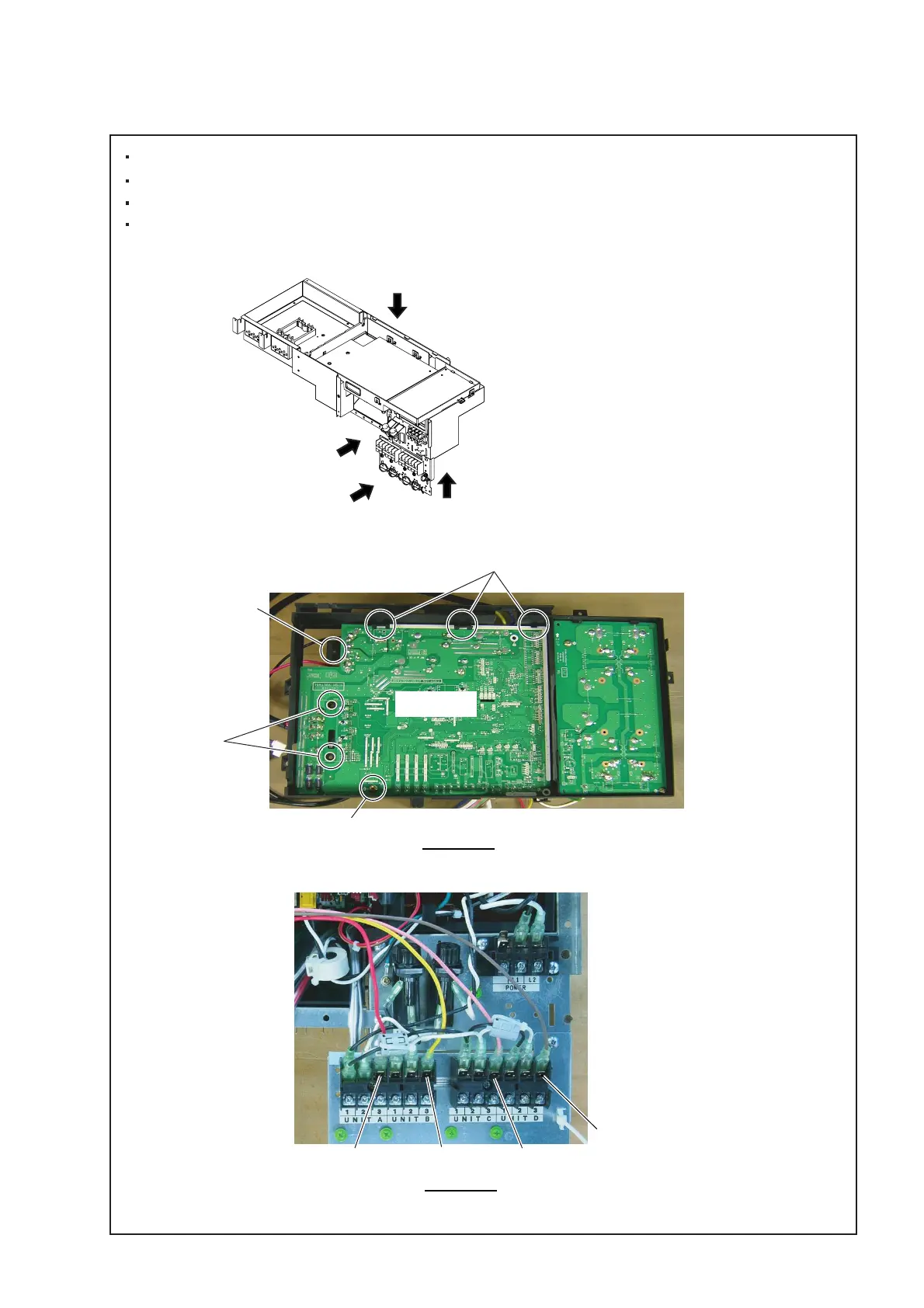

5. Main PCB removal
Remove the 4 mounting screws. (Refer to VIEW -A)
Remove the wires from terminal. (Refer to VIEW -B)
Remove the wires. (Refer to VIEW -C, -D)
Remove the Main PCB.
A
D
B
C
