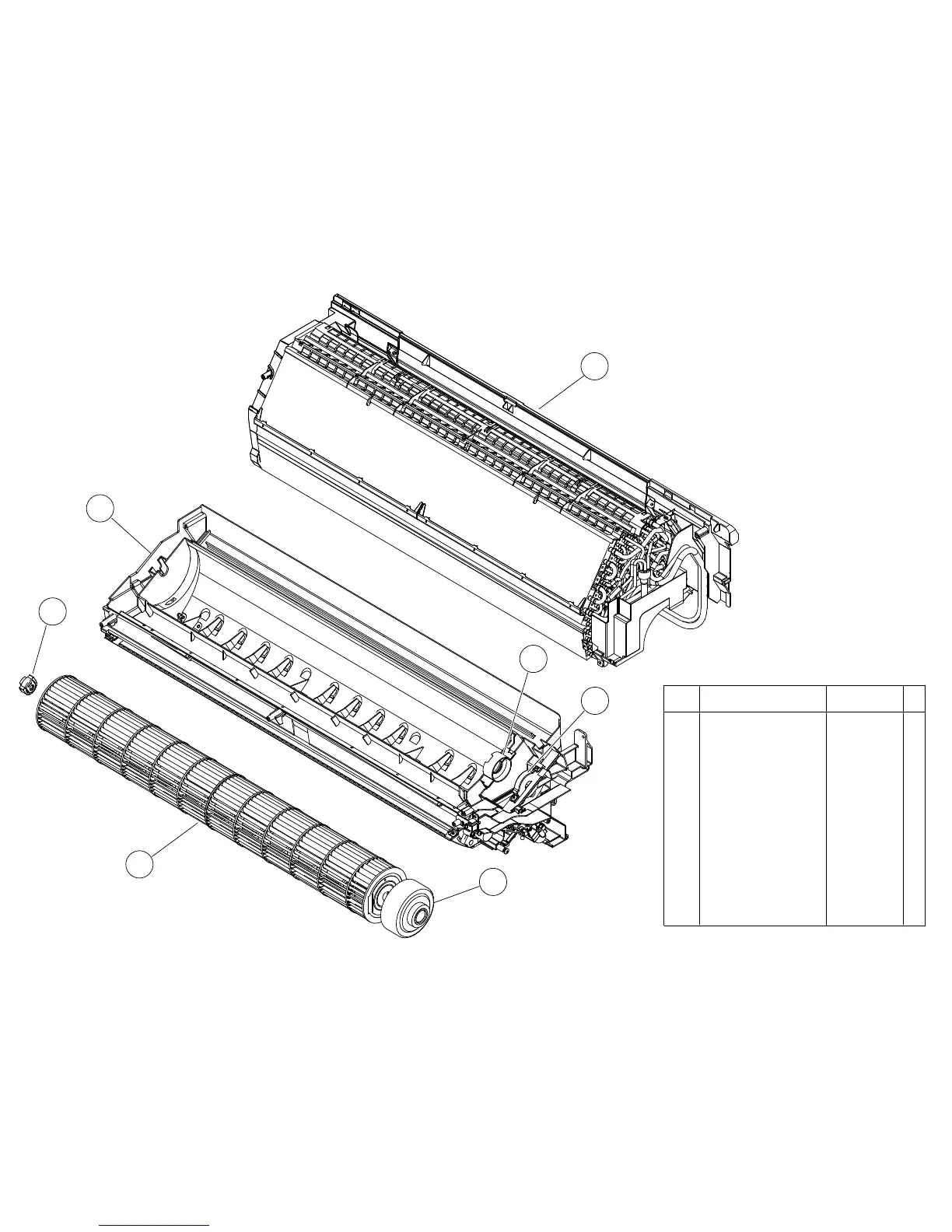

INDOOR UNIT
Evaporator
Fan
Fan Motor 9603253028
Crossflow Fan Assy 9315024060
Bearing C Assy 9306628017
37
32
Evaporator Total Assy 931925418031
Casing Total Assy 9319171272
33
34
Motor Cover 9316568006
Motor Cover 9316601000
35
36
Ref. Description Part number
112014.12.16
37
34
33
31
32
35
36
