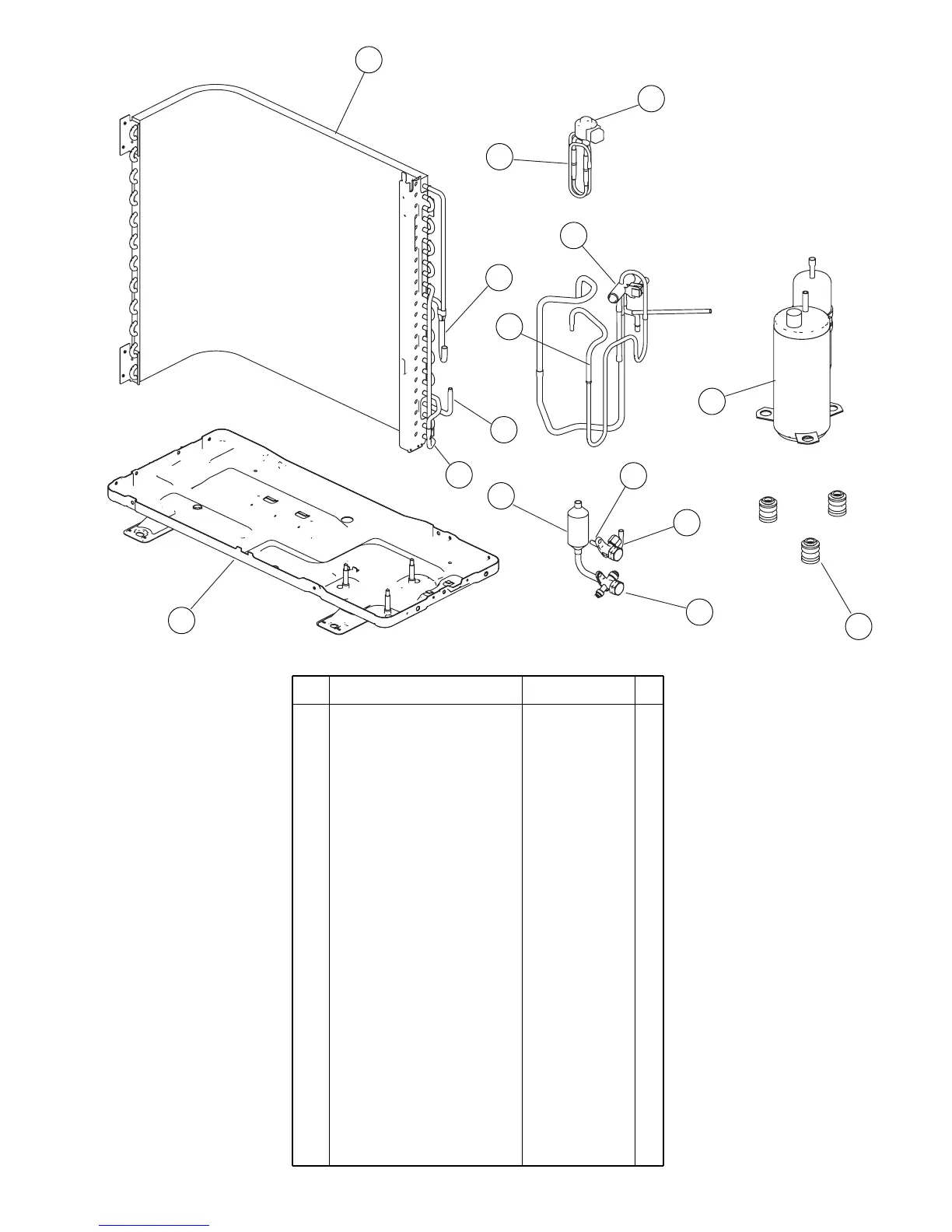

OUTDOOR UNIT
AOU9RL
2009.01.27
16
27
23
21
24
26
22
25
28
37
31
30
38
33
32
29
24 Separate Pipe Assy (Cond) 9332015003
25 Exit Pipe 9317338004
26 Compressor Assy 9317083010
30 3 way Valve Assy 9317174015
-- Insulator B 9317400015
-- Insurator F 9317946001
37 Pulse Motor Valve Assy 9317216005
-- 4 way Valve Assy 9317158015
-- Solenoid 9970077012
-- Condenser Total Assy 9317287012
38 Expansion Valve Coil 9900057039
33 Discharge Pipe Assy 9317159012
31 Muffler 9317394000
32 4 way Valve 9970074011
27 Cushion 9306410001
28 2 way Valve Assy 9317171014
29 Joint Pipe (2 way Valve) 9317344005
-- Insurator H 9317401012
21 Base Assy 9316916005
22 Condenser Assy 9317286008
23 Entrance Pipe Assy (Cond) 9317163019
