Fujitsu ASU9RL - Outdoor Unit Parts - General; Outdoor Unit Exterior Panels and Protection; Outdoor Unit Cabinet and Mounting Parts; Outdoor Unit Fan and Airflow Parts

P A R T S
1
1
2
9
12
3
15
14
10
13
11
5
6
7
8
4

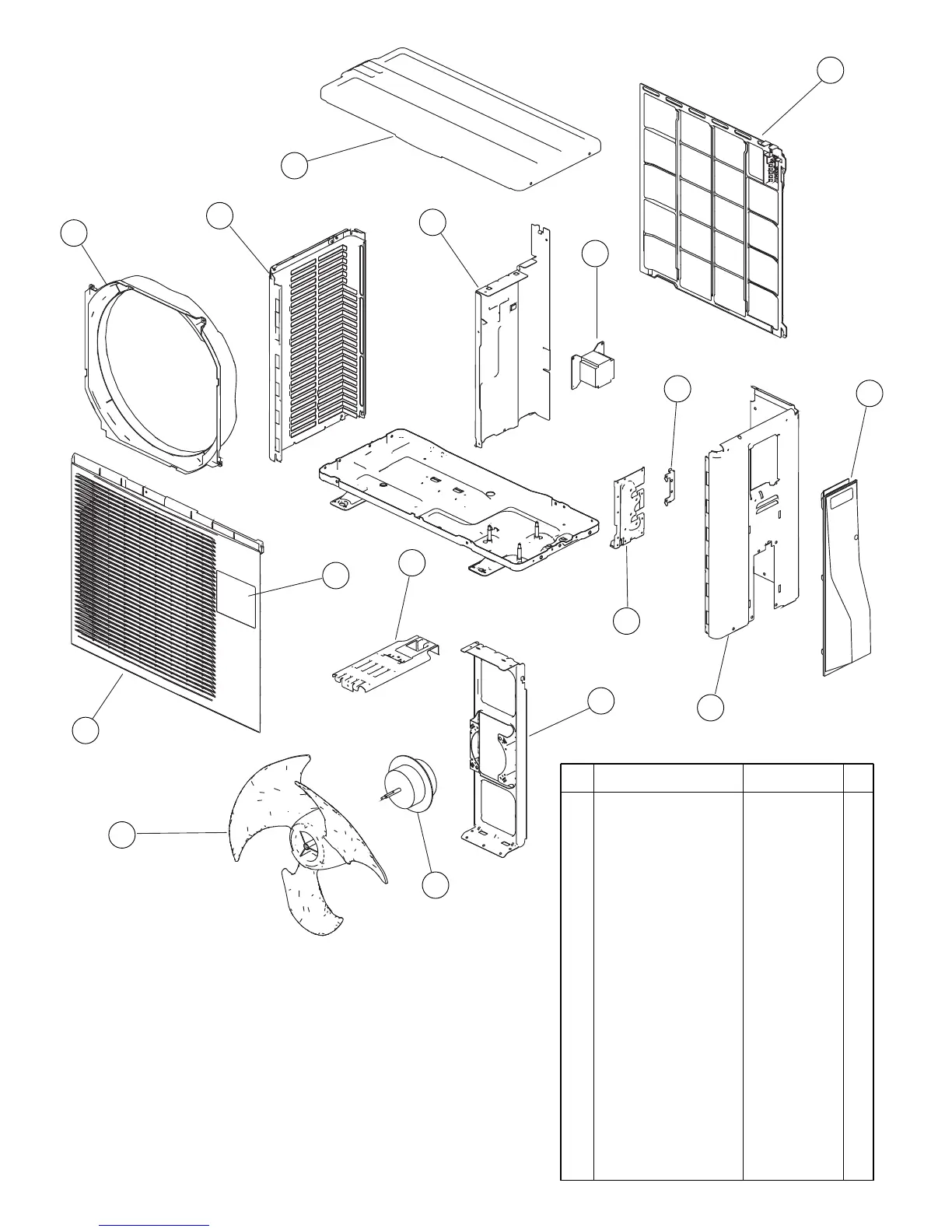

OUTDOOR UNIT
AOU9RL
AOU12RL
2009.01.27 15
4 Top Panel Assy 9316973022
1 Front Panel Assy 9316972018
5 Protective Net 9331262019
3
6
Cabinet Left Assy 9313991043
2 Emblem 9317903011
Switch Cover 9313940010
8 Valve Bracket 9316523012
7 Cabinet Right Assy 9331336062
9 Valve Bracket Cover 9331683005
11 Motor Bracket 9316538009
12 REM Plate Assy (12) 9316967021
10 Propeller Fan 9309909014
12 REM Plate Assy (09) 9316967038
14 Reactor Assy 9900460013
15 Separator Assy 9317927000
--- Drain Pipe 9303029022
13 Fan Motor (09) 9602706013
13 Fan Motor (12) 9602751013
Ref. Description Part number
