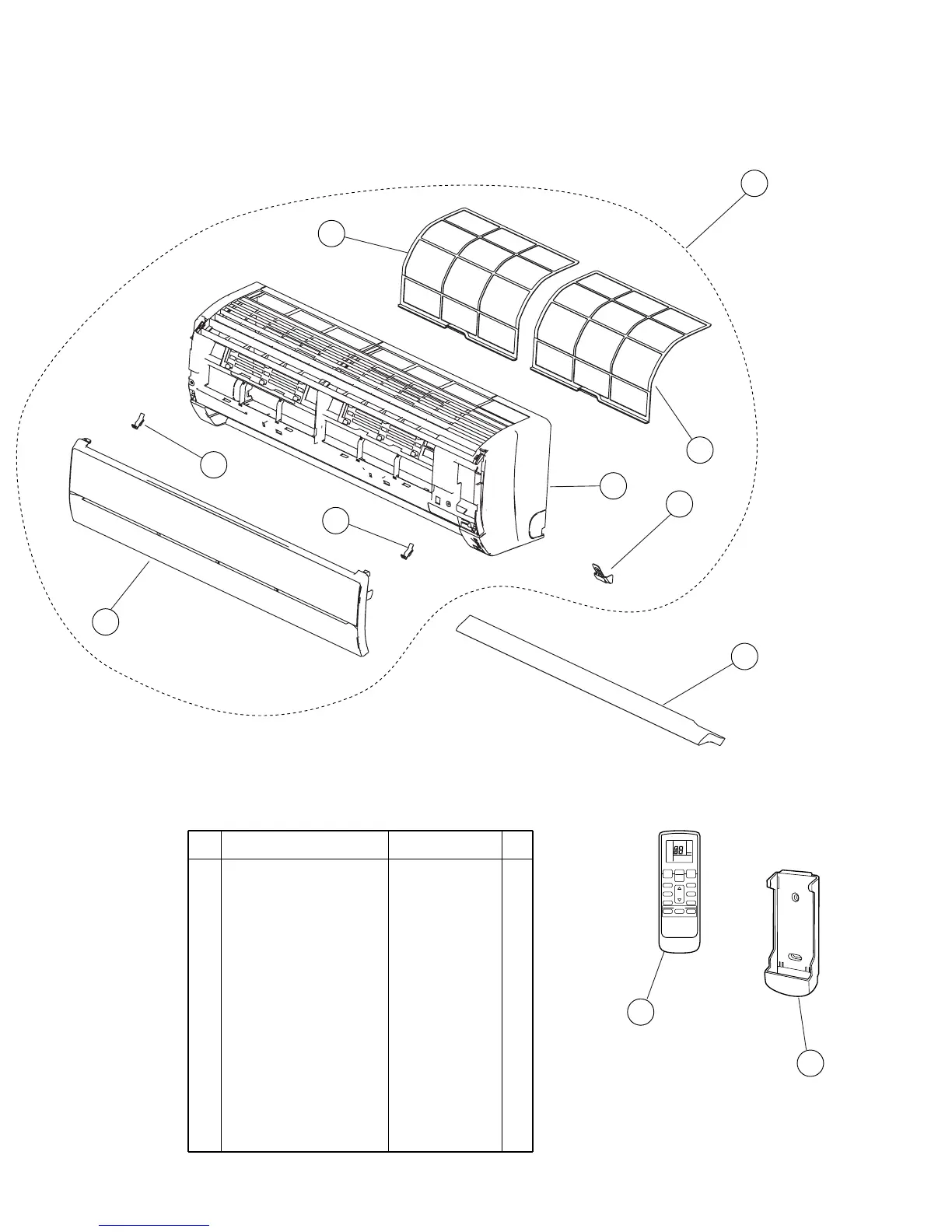

P A R T S
2
3
6
1
7
8
9
4
4
5
5
INDOOR UNIT
Front panel assy
2009.01.26 11
4
Air Filter 9316562004
1
Front Panel 9316558014
Front Panel Assy 9316897175
5
Receiver Window 9316588004
3
6
Clamper (Grille) 9316906006
2
Intake Grille Assy 9317428088
Panel Cover 9316561007
-- Wire Cover 9317754019
-- Air Clean Filter Assy 9317250009
-- Wire Shield 9316584006
7
Remote Control 93174750448
9 Remote Control Holder 9305642045
Ref. Description Part number
