11
13
16
14
15
12
17
2009.01.26
12

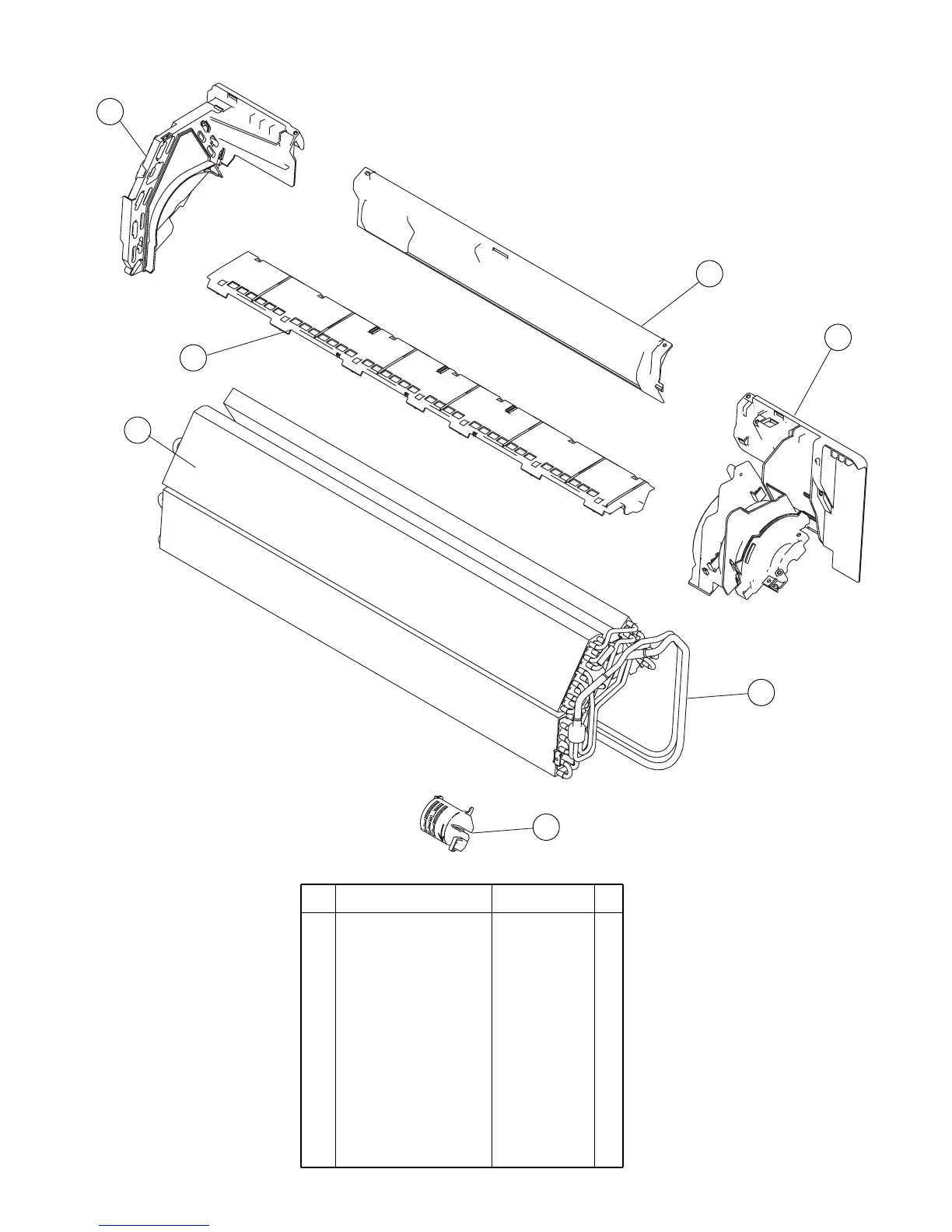

11 Evaporator Assy (09) 9316922013
12 Joint Pipe Assy (09) 9316923010
11 Evaporator Assy (12) 9317268011
12 Joint Pipe Assy (12) 9317190015
13 Filter Guide 9316578005
15
14
Evaporator Holder R 9316565005
16 Evaporator Holder L 9316564008
17
Room Thermistor Holder
9316895003
-- Thermistor Assy 9900459017
Rear Bracket 9316566002
Ref. Description Part number
INDOOR UNIT
Evaporator
