INDOOR UNIT

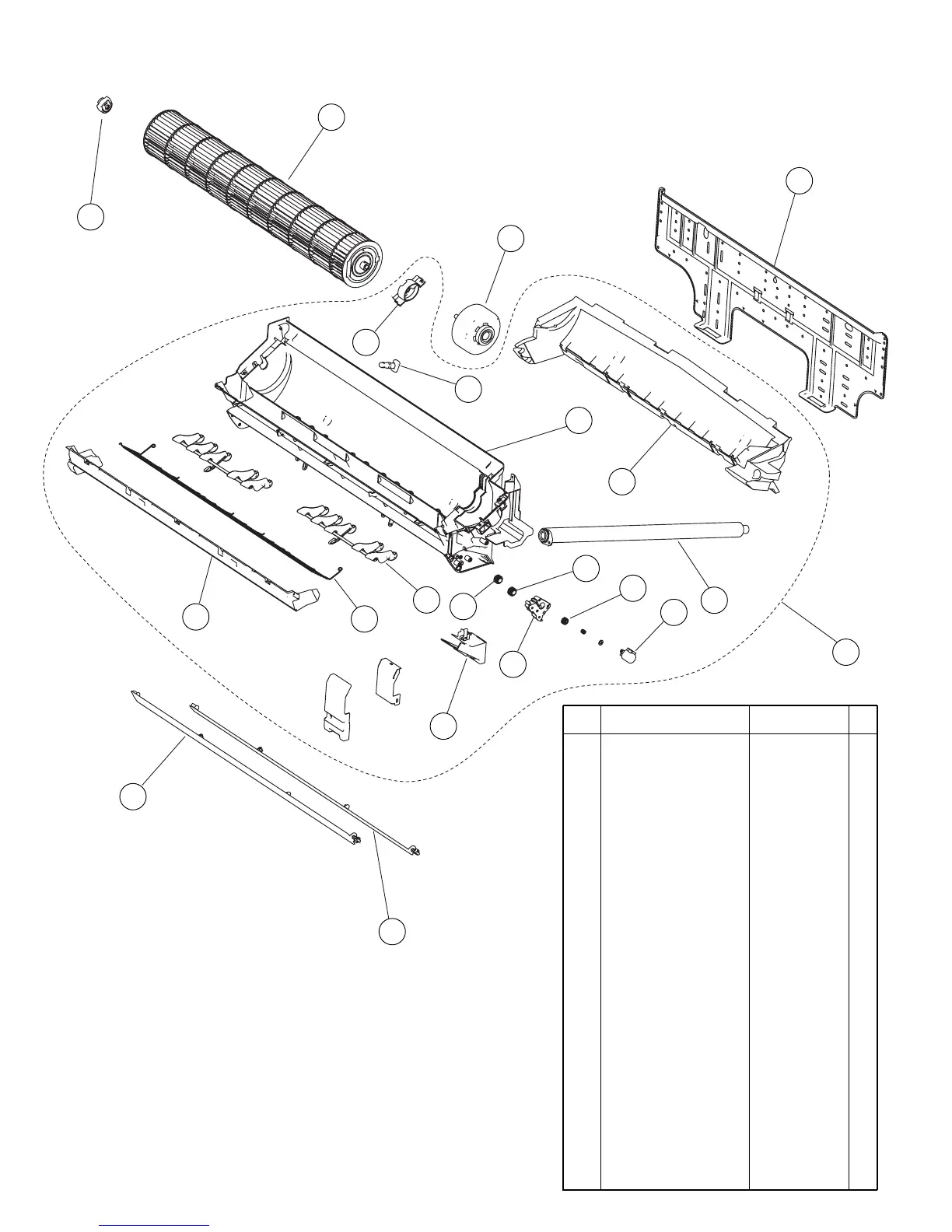

Casing assy
2009.01.26 13
24 Cable Guide 9317680011
25 Casing Cover B 9316569003
26 Casing Cover F 9316570009
27 R and L Louver B 9316961005
34 Fan Guard 9317182003
35 Fan Motor 9602704019
36 Crossflow Fan Assy 9316830004
37 Shaft Holder C 9306628017
38 Louver U 9316572003
39 Louver Z 9316573000
40 Bracket Panel 9316590007
21 Casing Assy 9316892071
22 Casing 9316563001
23 Motor Cover 9316568006
28 Louver Gear Holder 9316575004
29 Louver Gear 9316574007
30 Gear A 9309994003
31 Motor Step 9900139117
32 Drain Hose Assy 9316904002
33 Drain Cap 9316177017
Ref. Description Part number
