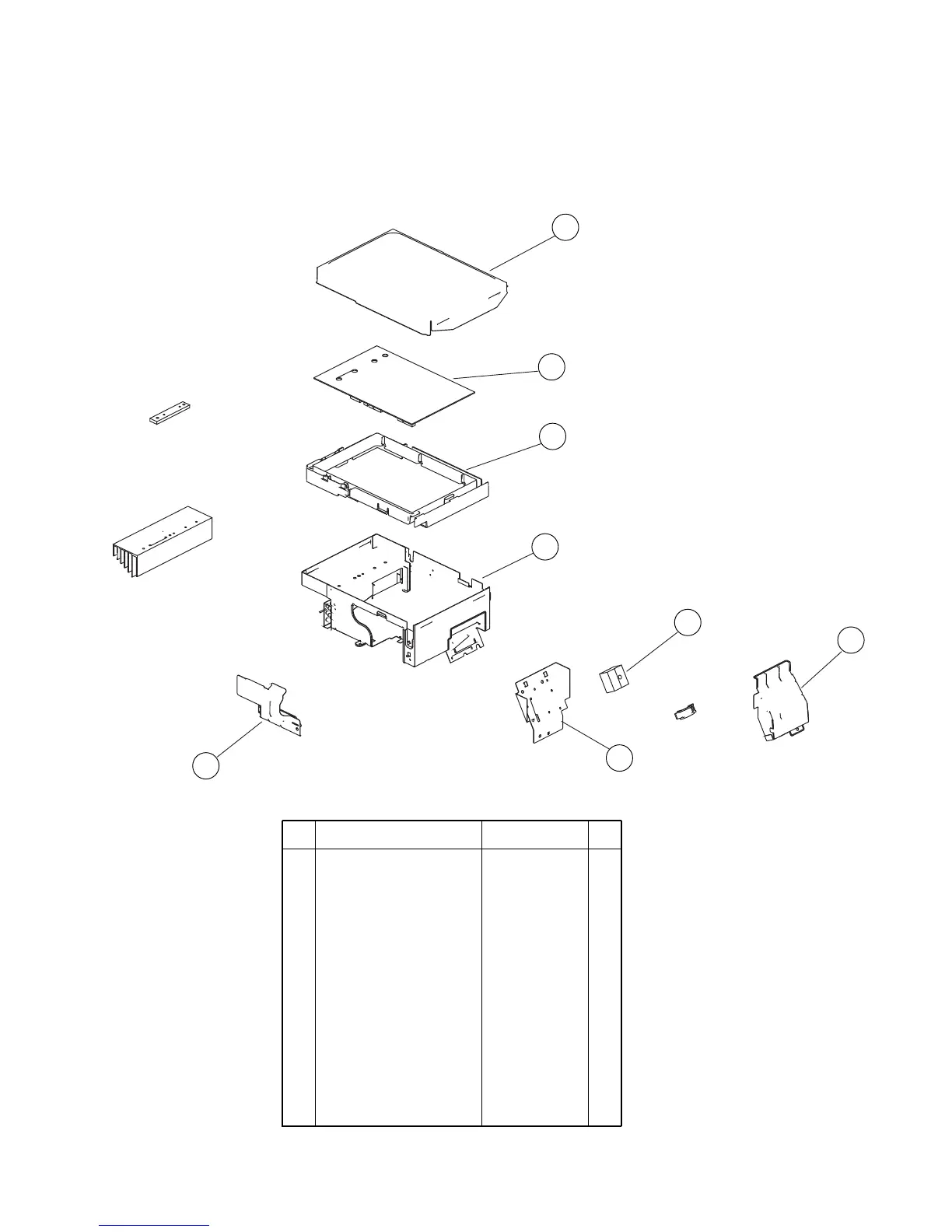

OUTDOOR UNIT
AOU9RL
AOU12RL
2009.01.27 18
-- Outdoor Thermistor 9900452025
46 Terminal Bracket 9317689014
47 Terminal 5P 9703874024
48
Inverter Case Cover 9331258036
Terminal Cover Assy 9317898003
44
Controller PCB Assy (09)
9331279062
45
Controller PCB Assy (12)
-- Thermistor Assy 9900451059
41 Sealed Panel 9331256018
42
Inverter Case Assy
9707706161
42 9707706178
43 PCB Holder 9331261012
