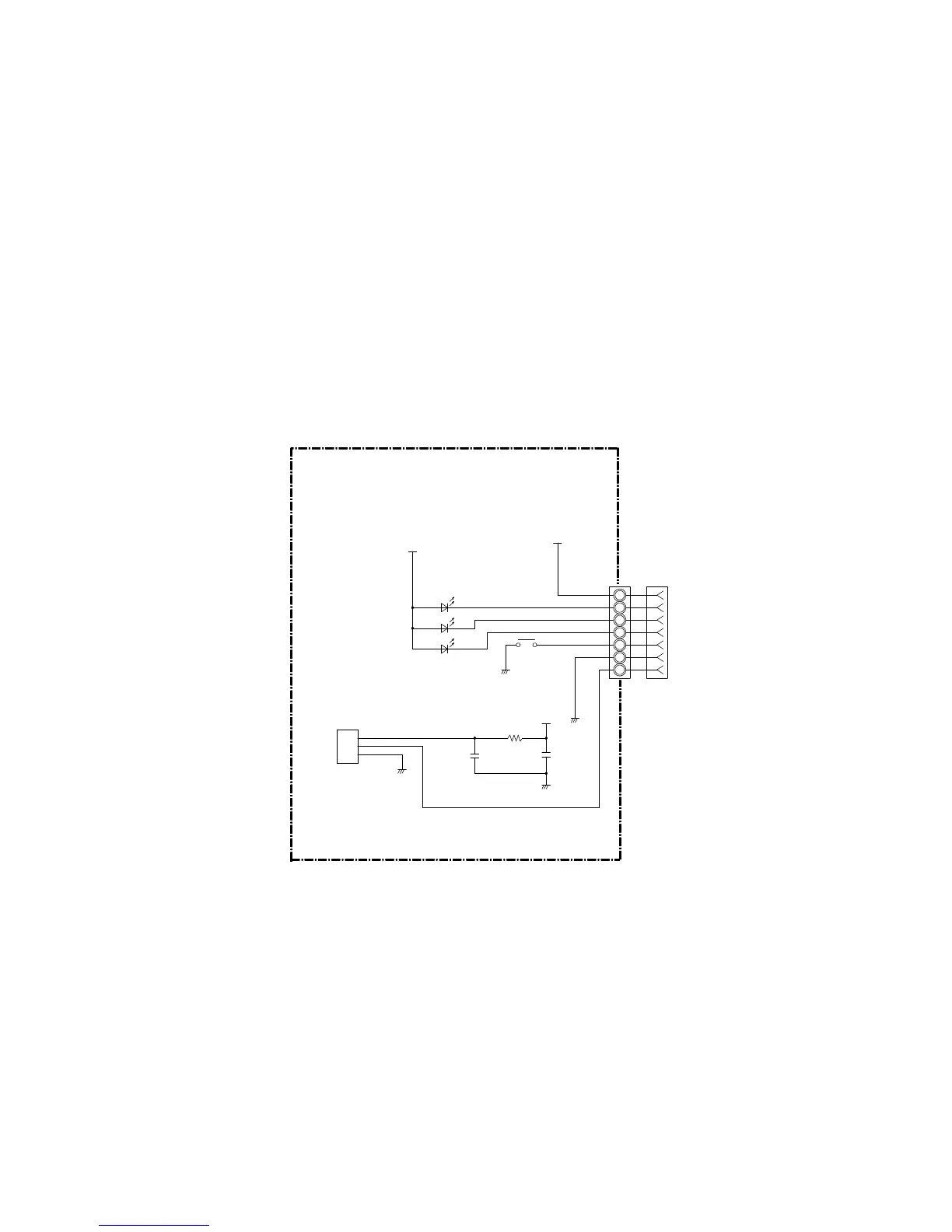

Fujitsu ASU9RL - Indoor Unit Indicator PCB Assembly

5V
5V
5V
+
I C201
GP1UM261RKVF
R202
47
<1/4W>
C202
47/
10V
C203
0.1
<F>
SW201
KSHG0611BT
CN201
07 JB20 / GIC
1061 L=230
A
A
A
A
1
2
3
4
5
6
7
2
1
3
VCC
OUT
GND
D201 SLR-343MC <GREEN>
D203 SLR-343YC <YELLOW>
D202 SLR-343DC <ORANGE>
MANUAL AUTO SWITCH
INDOOR UNIT
INDICATOR PCB ASSEMBLY
K07BJ-0700HSD-D0
2009.01.20 7
