5. Wiring diagrams
5-1. Models: AOU9RL2 and AOU12RL2
- 32 -

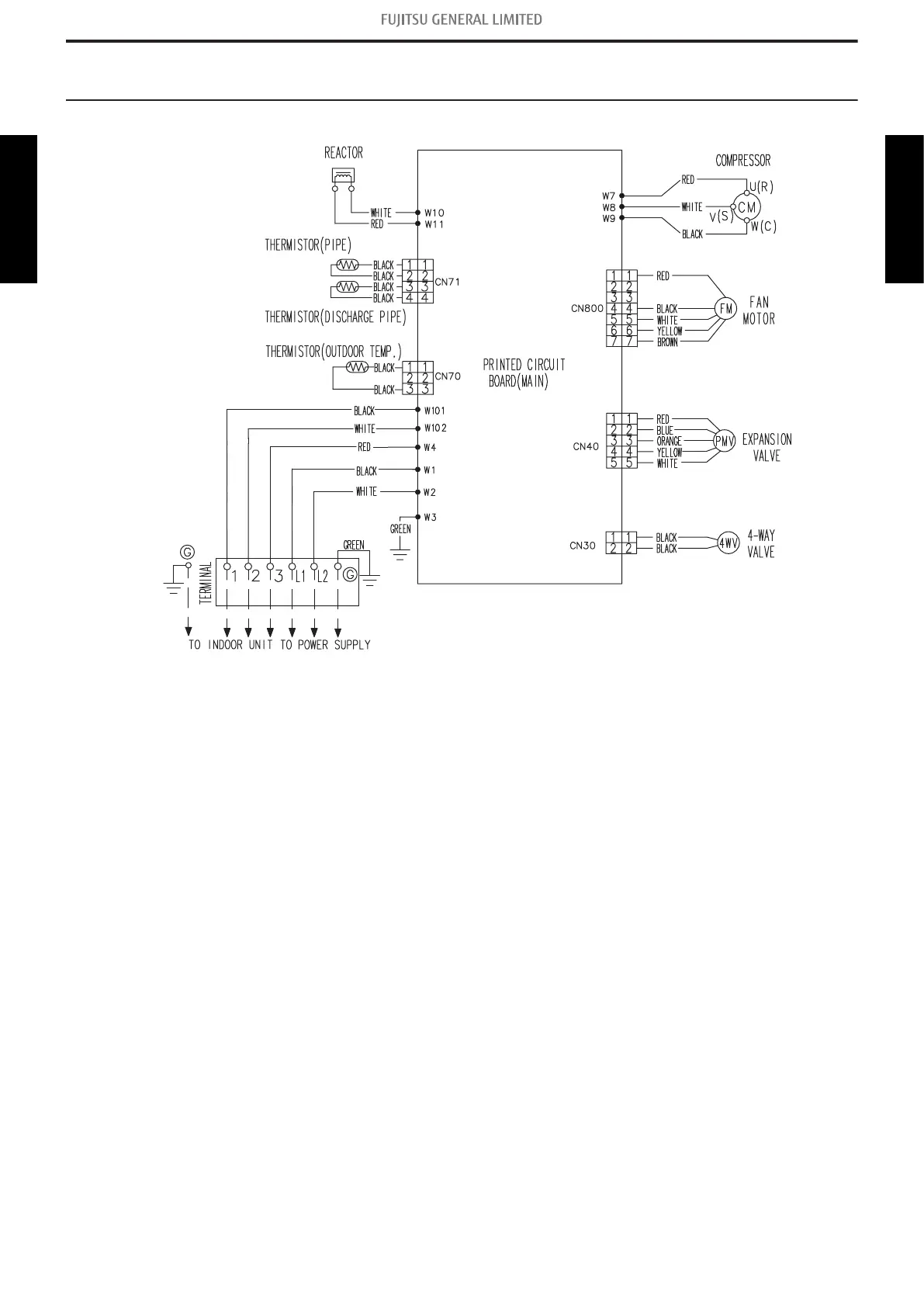

5-1. Models: AOU9RL2 and AOU12RL2
5. Wiring diagrams
OUTDOOR UNIT
AOU9-12RL2
OUTDOOR UNIT
AOU9-12RL2
