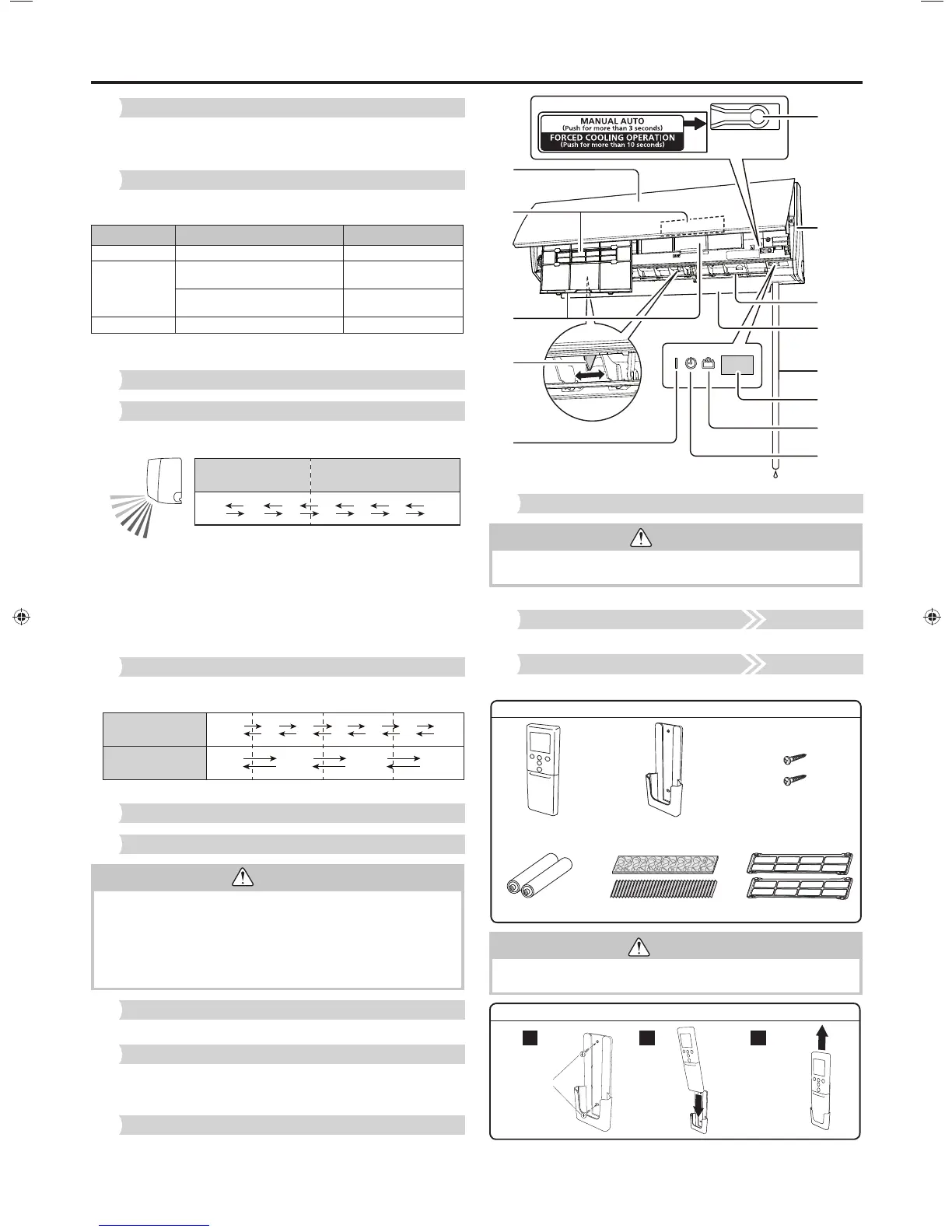

OPERATING MANUAL
1
Intake grille
Before starting operation, make sure that the intake grille has been
shut completely. Incomplete closing might have an effect on the
proper working or performance of the product.
2
Manual AUTO button
Use when you lost the remote controller or remote control malfunction
occurs.
Status Action Mode or operation
In operation Press more than 3 seconds. Stop
Stopping Press more than 3 seconds and
less than 10 seconds.
AUTO
Press more than 10 seconds.
(Only for servicing.*)
Forced cooling
After cleaning Press less than 3 seconds. Filter indicator reset
*:To stop forced cooling, press this button or START/STOP button on
the remote controller.
3
Front panel
4
Vertical airfl ow direction louver
Each time you press SET button on the remote controller, the angle
of the vertical airfl ow direction louver moves as follows:
1
2
3
4
5
6
7
COOL or DRY mode HEAT mode
12
3
765
**
4
*: Default setting in each mode.
• Do not adjust by hand.
• At the beginning of AUTO or HEAT mode, they may stay position 1
for a while for adjustment.
• If you set the angle to position 4–7 for more than 30 minutes in
COOL or DRY mode, they automatically return to position 3.
In COOL or DRY mode, if the angle is set to position 4–7 for many hours,
condensation may be formed, and the drips may wet your property .
5
Power diffuser
In conjunction with movement of the vertical airfl ow direction louver,
the angle of the power diffuser moves as follows:
Vertical airfl ow
direction louver
Power diffuser
3
76
5
4
2
1
321
4
• In SWING operation, power diffuser does not move.
6
Drain hose
7
Remote control signal receiver
CAUTION
For appropriate signal transmission between remote controller and the
indoor unit, keep the signal receiver away from following items :
- Direct sunlight or other strong light
- Flat-panel television screen
In rooms with instantaneous fl uorescent lights, such as inverter type
ones, the signal may not be transmitted properly. In such a case,
consult the store that you purchased the product .
8
ECONOMY indicator (green)
Lights in ECONOMY operation and in MIN. HEAT operation.
9
TIMER indicator (orange)
Lights in TIMER operation, and blinks slowly when the timer setting
error is detected.
As for the timer setting error, refer to “Auto-restart function” on page 6.
0
OPERATION indicator (green)
Lights in normal operation, and blinks slowly in automatic defrosting
operation.
1
2
3
4
5
6
7
8
9
C
B
A
0
A
Horizontal airfl ow direction louvers
CAUTION
Before you adjust the horizontal airfl ow direction, make sure that the vertical
airfl ow direction louver has been stopped completely .
Adjust two knobs by hand.
See page 6
B
Air fi lter
Easy-to-care air fi lters resist mildew growth.
See page 7
C
Air cleaning fi lters
Purify or deodorize the air, and provide fresh airfl ow.
Indoor unit accessories
Remote
controller
Batteries Air cleaning fi lters Filter holders
Remote controller
holder
Tapping screws
(M3 × 12 mm)
WARNING
Take care to prevent infants and young children from accidentally swal-
lowing the batteries.
Remote controller holder installation
321
Screws
Insert
Slide up
Indoor Unit Overview and Operations
