Outdoor Unit High Pressure Value and Outdoor Total Electric Current Curve (Heating)
Model Name : AS18RL
[Condition]
Ambient
temperature
Indoor 15 - 23degC, Outdoor 2 - 12degC
Refrigerant
amount
Standard amount
Piping 7.5m (Height difference 1m)
Power
voltage
60Hz - 230V
Operation
condition
TEST mode (Heating), Hi Fan, Lower direction, Front air flow
Measuring
method
Caution
Start operation with the condition of the Indoor Unit air filter clean.
[Constant Frequency Operation Method (Test mode)]
1. Operate on Heating mode, and press TEST button of remote control.
2. Operate continuously for 30 minutes. (After 60 minutes of operation, Test mode is released automatically.)

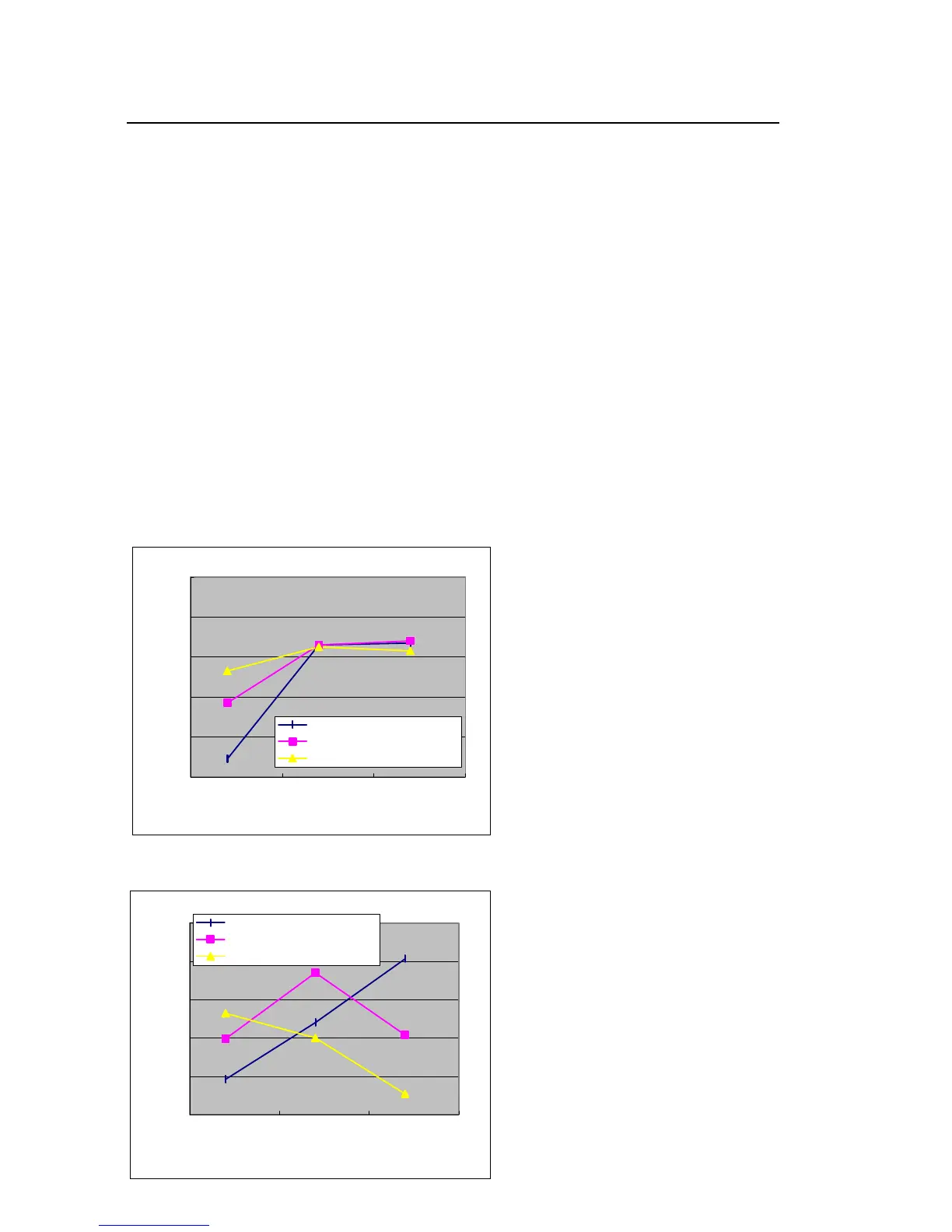

(1) Indoor/Outdoor Temperature - Outdoor High Pressure Curve
ASU18RL
(2) Indoor/Outdoor Temperature - Outdoor Total Electric Current Curve
ASU18RL
Measure the high pressure with the pressure meter at the service valve. Measure the
outdoor unit overall current with the current clamp meter at Power Cable.
3
3.2
3.4
3.6
3.8
4
32
(0)
41
(5)
50
(10)
59
(15)
Outdoor ambient temperature °F(°C)
High-pressure of outdoor unit (Mpa)
6.5
7
7.5
8
8.5
9
Outdoor ambient temperature °F(°C)
Outdoor Total Electric Current (A)
length
Indoor inlet temp :59°F(15°C)
Indoor inlet temp :68°F(20°C)
Indoor inlet temp :73°F(23°C)
08-05
32
(0)
41
(5)
50
(10)
59
(15)
Indoor inlet temp :59°F(15°C)
Indoor inlet temp :68°F(20°C)
Indoor inlet temp :73°F(23°C)
